Radiator Main Fan and Fan Motor: Installation
WARNING: This page is about a different variant/trim than selected.
Install in the reverse order of removal.
NOTE:

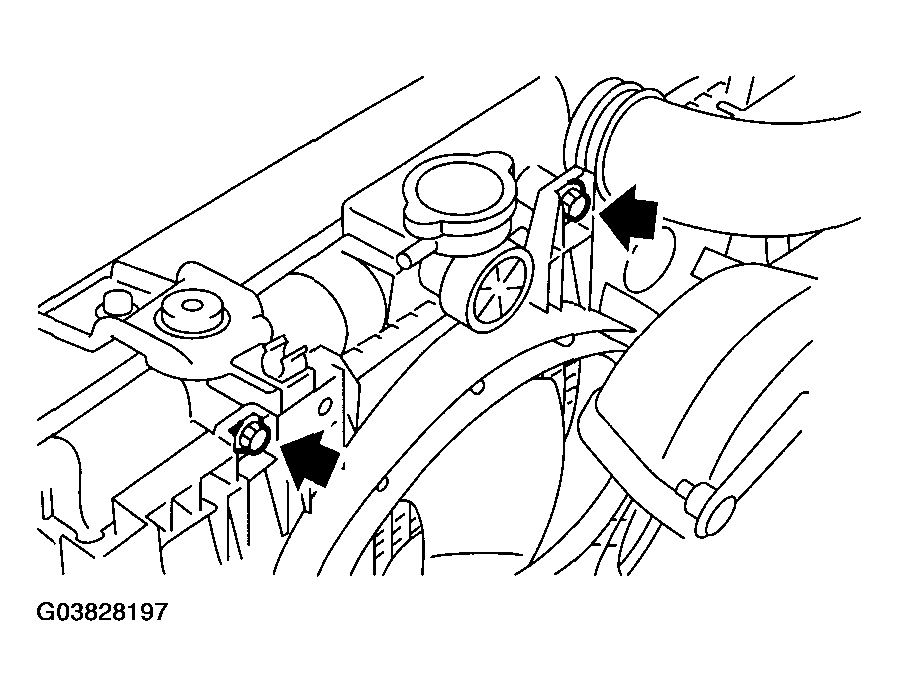

When the radiator main fan motor assembly cannot be installed, loosen the bolts which secure radiator sub fan motor assembly.
Tightening torque: 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)
