Radiator Main Fan and Fan Motor: Disassembly

WARNING: This page is about a different variant/trim than selected.

Remove the clip which holds motor connector onto the shroud.
Remove the nut which holds the fan onto fan motor and shroud.

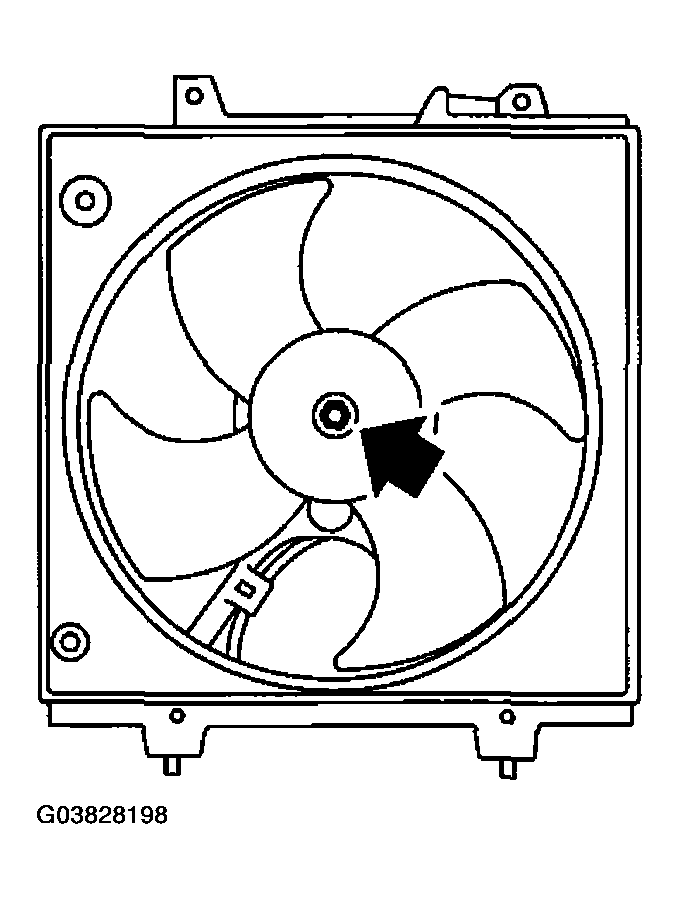

Fig 1: Removing Nut Which Holds Fan Onto Fan Motor And Shroud
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which install fan motor onto the shroud.

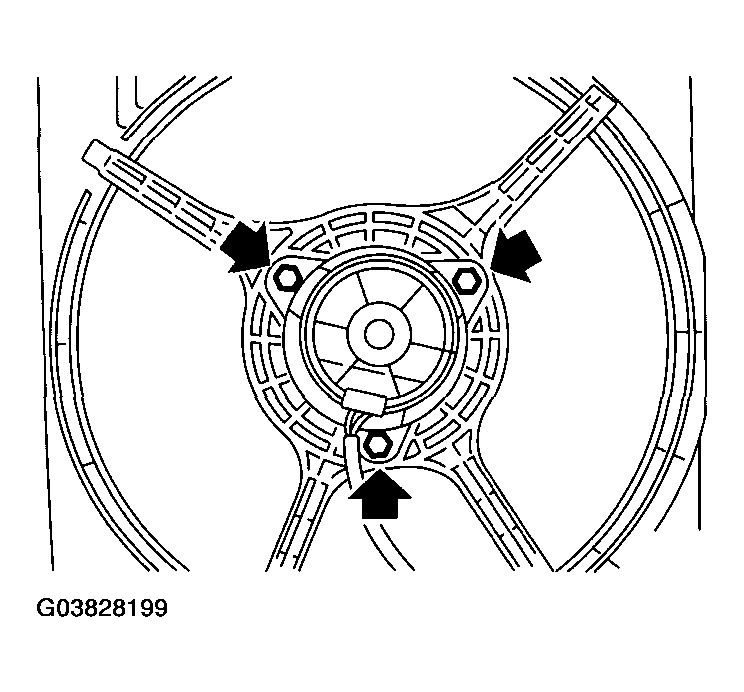

Fig 2: Removing Bolts From Fan Motor Onto Shroud
Courtesy of SUBARU OF AMERICA, INC.
