Radiator Main Fan and Fan Motor: Assembly

WARNING: This page is about a different variant/trim than selected.

Assemble in the reverse order of disassembly.

Tightening torque: 5 N.m (0.5 kgf-m, 3.6 ft-lb)

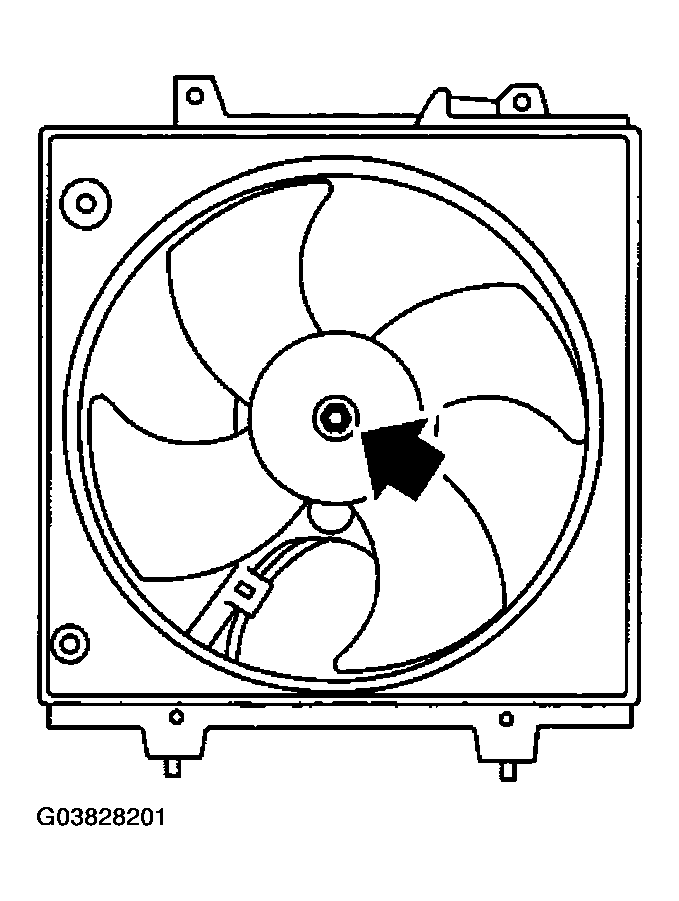

Fig 1: Installing Bolts To Fan Motor Onto Shroud (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: 3.4 N.m (0.35 kgf-m, 2.5 ft-lb)

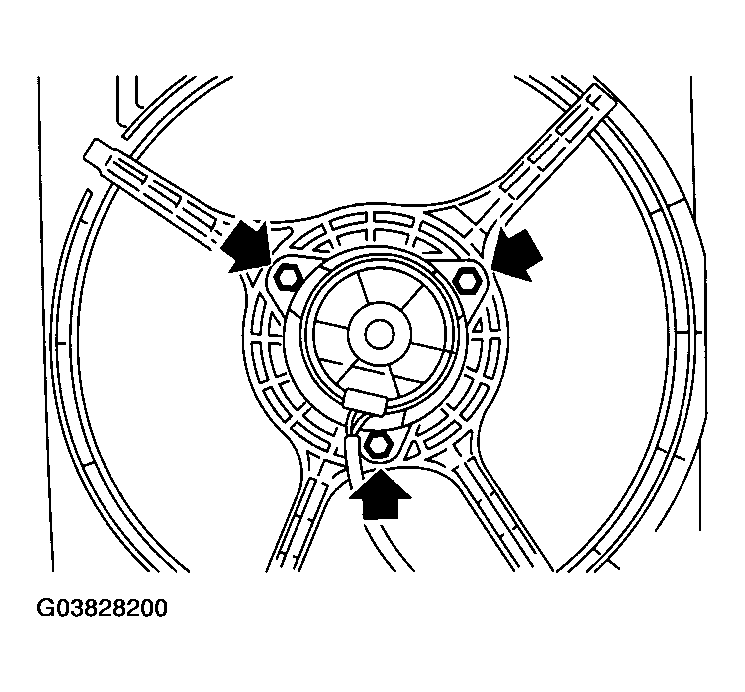

Fig 2: Installing Bolts To Fan Motor Onto Shroud (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
