Section 6 (Cooling System (H4SO))
>>
Radiator Fan System
>>
Wiring Diagram
Radiator Fan System: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

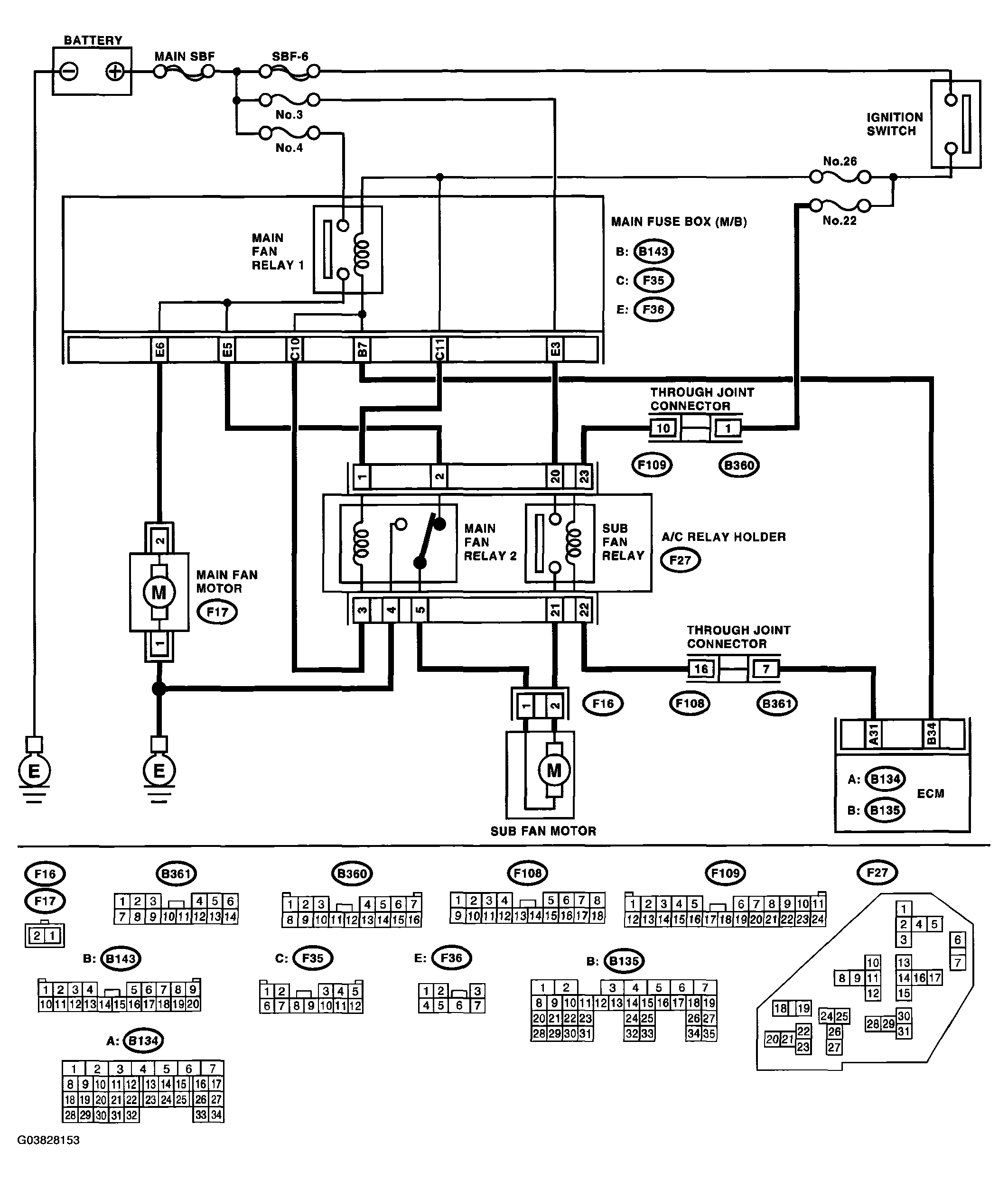

Fig 1: Wiring Diagram - Radiator Fan System
Courtesy of SUBARU OF AMERICA, INC.
