Procedure To Adjust The Concentration Of The Coolant

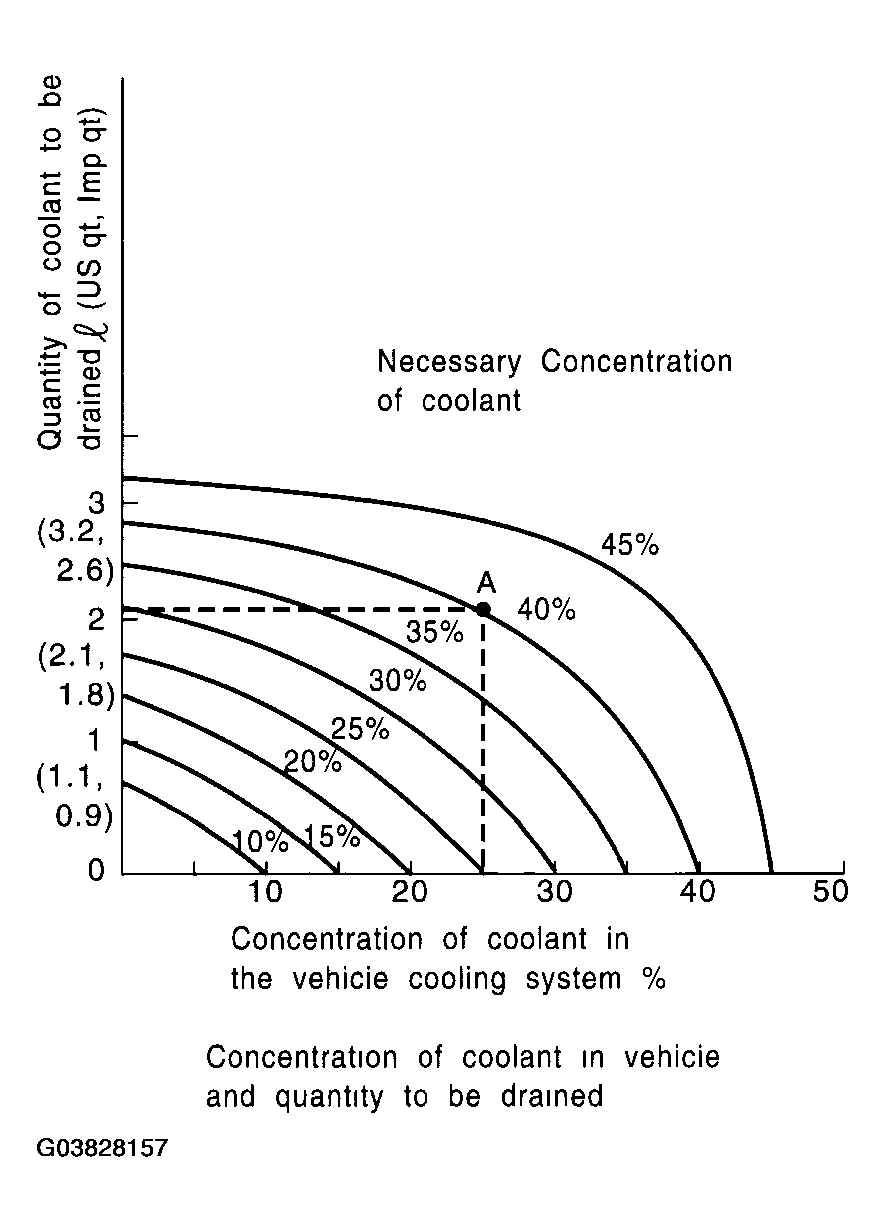

To adjust the concentration of coolant according to temperature, find the proper fluid concentration in the above diagram and replace the necessary amount of coolant with an undiluted solution of SUBARU genuine coolant (concentration 50%). The amount of coolant that should be replaced can be determined using the diagram.
[Example]
Assume that the coolant concentration must be increased from 25% to 40%. Find point A, where the 25% line of coolant concentration intersects with the 40% curve of the necessary coolant concentration, and read the scale on the vertical axis of the graph at height A. The quantity of coolant to be drained is 2.1 lambda (2.2 US qt, 1.8 Imp qt). Drain 2.1 lambda (2.2 US qt, 1.8 Imp qt) of coolant from the cooling system and add 2.1 lambda (2.2 US qt, 1.8 Imp qt) of the undiluted solution of SUBARU coolant. If a coolant concentration of 50% is needed, drain all the coolant and refill with the undiluted solution only.
