Valve Clearance: Inspection

WARNING: This page is about a different variant/trim than selected.
NOTE: Inspection and adjustment of valve clearance should be performed while engine is cold.
  1. Set the vehicle on a lift.
  2. Lift-up the vehicle.
  3. Remove the under cover.
  4. Lower the vehicle.
  5. Disconnect the ground cable from battery.

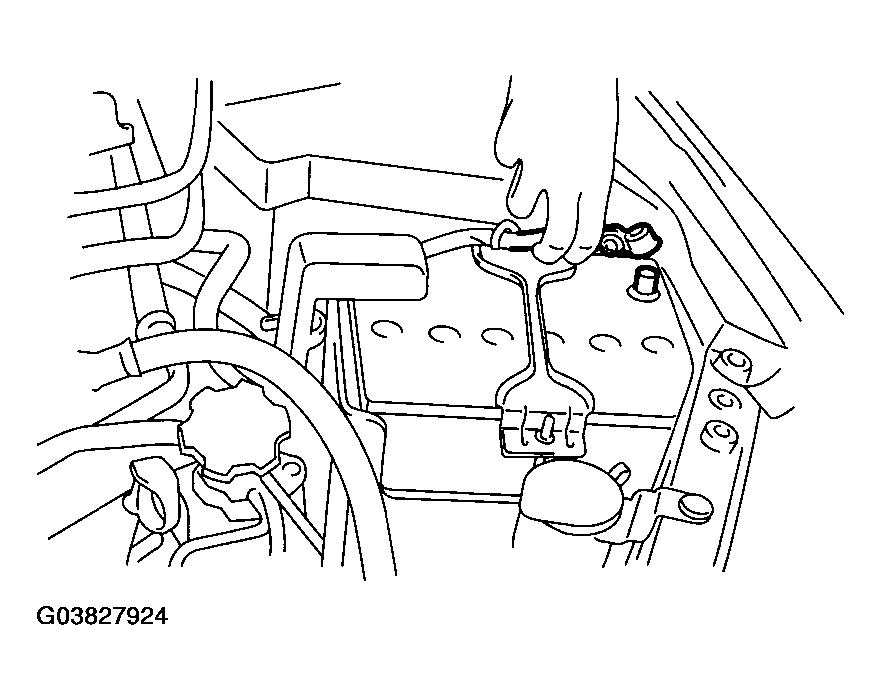

    Fig 1: Disconnecting Ground Cable From Battery
    G03827924Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the timing belt cover (LH).

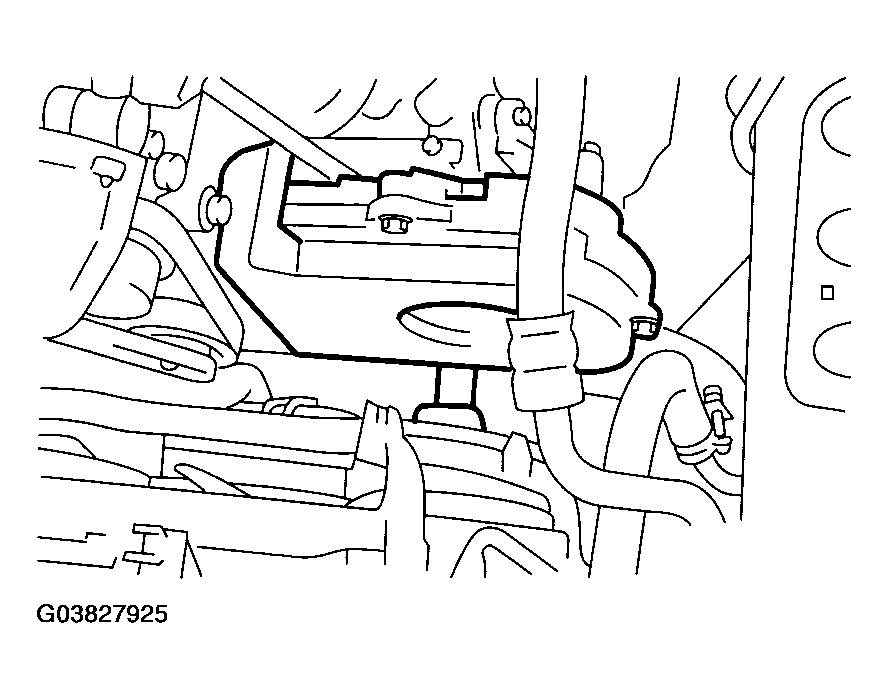

    Fig 2: Removing Timing Belt Cover LH
    G03827925Courtesy of SUBARU OF AMERICA, INC.
  7. When inspecting #1 and #3 cylinders:
    1. Disconnect the spark plug cords from spark plugs RH side. < Ref. to RH SIDE , REMOVAL, Spark Plug. >
    2. Disconnect the PCV hose from rocker cover (RH).
    3. Remove the bolts, then remove the rocker cover (RH).
  8. When inspecting #2 and #4 cylinders:
    1. Disconnect the spark plug cords from spark plugs (LH Side). < Ref. to LH SIDE , REMOVAL, Spark Plug. >
    2. Disconnect the PCV hose from rocker cover (LH).
    3. Remove the bolts, then remove the rocker cover (LH).
  9. Set #1 cylinder piston to top dead center of compression stroke by rotating the crank pulley clockwise using the socket wrench.
    NOTE: When the arrow mark (A) on cam sprocket (LH) comes exactly to the top, #1 cylinder piston is brought to the top dead center of compression stroke.
    Fig 3: Locating Arrow Mark
    G03827926Courtesy of SUBARU OF AMERICA, INC.
  10. Measure #1 cylinder valve clearance using thickness gauge.
    CAUTION:
    • Insert the thickness gauge (A) in as horizontally as possible with respect to the valve stem end face.
    • Measure the exhaust valve clearances while lifting-up the vehicle.

    Valve clearance (Standard):

    Intake:

    0.20+/-0.04 mm (0.0079+/-0.0016 in)

    Exhaust:

    0.25+/-0.04 mm (0.0098+/-0.0016 in)

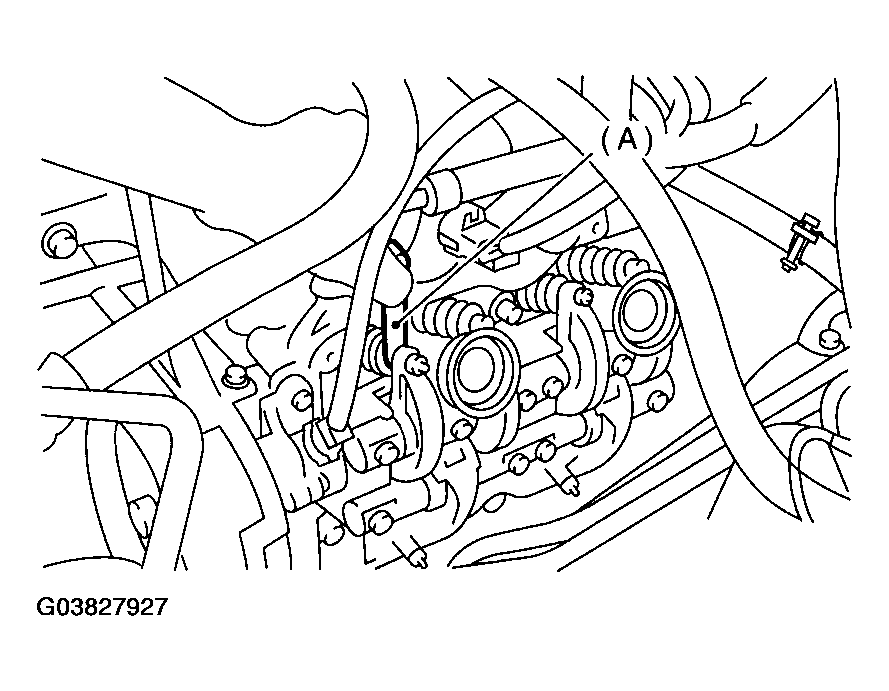

    Fig 4: Measuring Exhaust Valve Clearances
    G03827927Courtesy of SUBARU OF AMERICA, INC.
  11. If necessary, adjust the valve clearance. < Ref. to , ADJUSTMENT , Valve Clearance. >
  12. Measure the valve clearance in #3, #2 and #4 cylinder in the same measurement procedure as #1 cylinder.
    NOTE:
    • Be sure to set the cylinder pistons to their respective top dead centers on compression stroke before measuring valve clearances.
    • By rotating the crank pulley clockwise every 180° from the state that #1 cylinder piston is on the top dead center of compression stroke, #3, #2 and #4 cylinder pistons come to the top dead center of compression stroke in this order.
  13. After inspection, install the related parts in the reverse order of removal.
