Rear Side Belt

WARNING: This page is about a different variant/trim than selected.
  1. Loosen the lock nut (A).
  2. Loosen the slider bolt (B).

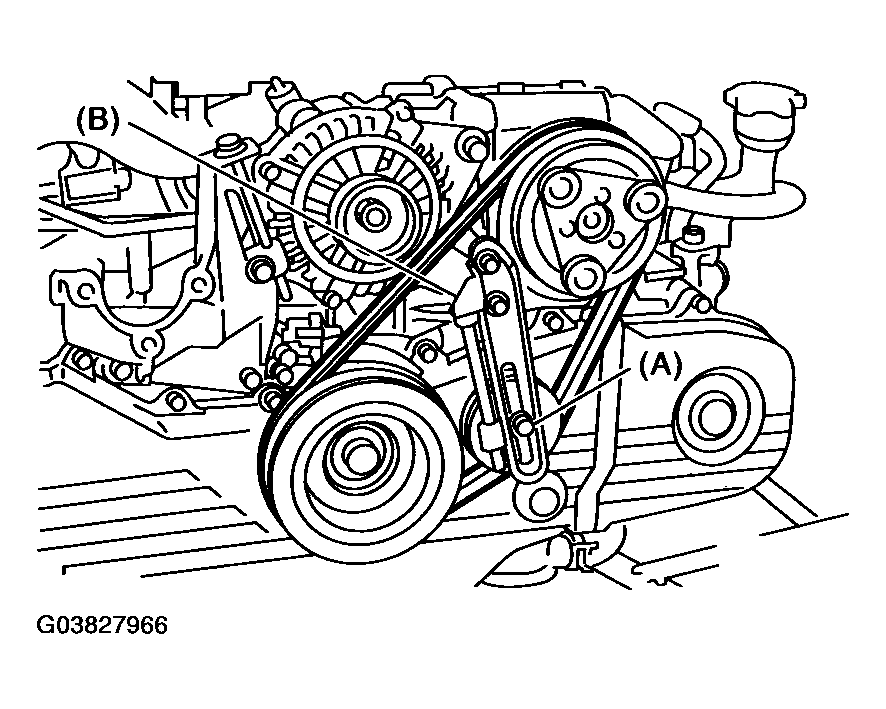

    Fig 1: Loosening Lock & Slider Nuts
    G03827966Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the rear side belt.
  4. Remove the belt tensioner.

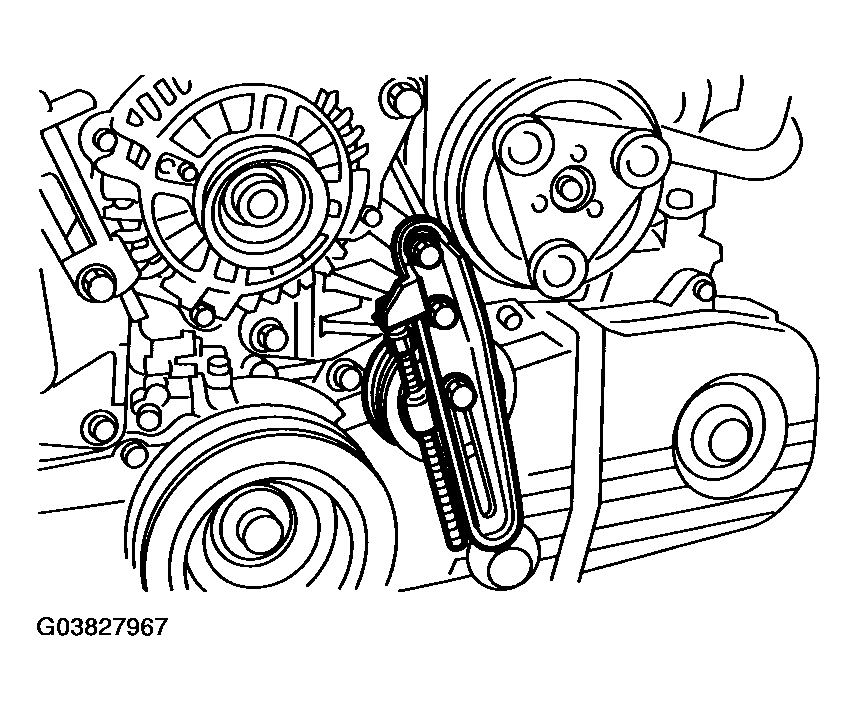

Fig 2: Removing Rear Side Belt & Belt Tensioner
G03827967Courtesy of SUBARU OF AMERICA, INC.
