Front Side Belt

WARNING: This page is about a different variant/trim than selected.

Remove the V-belt covers.

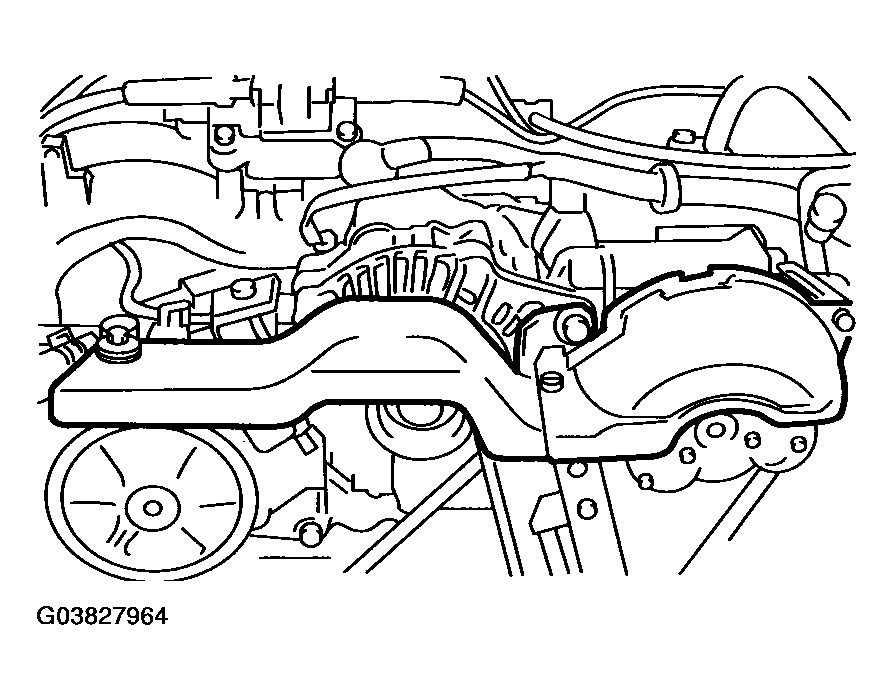

Fig 1: Removing V-Belt Covers
Courtesy of SUBARU OF AMERICA, INC.
Loosen the lock bolt (A).
Loosen the slider bolt (B).
Remove the front side belt (C).

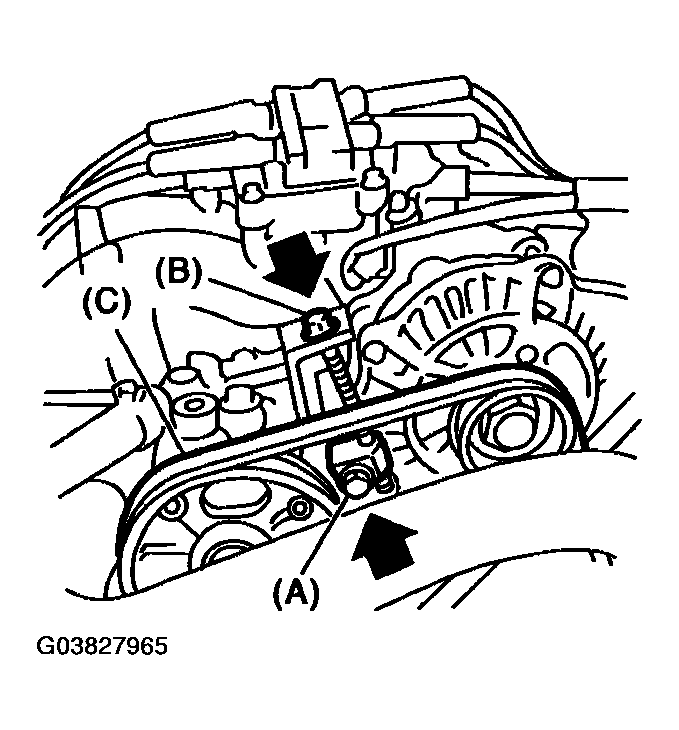

Fig 2: Loosening Lock & Slider Bolts And Removing Front Side Belt

Courtesy of SUBARU OF AMERICA, INC.
