Rear Side Belt
WARNING: This page is about a different variant/trim than selected.
- Install the belt tensioner.

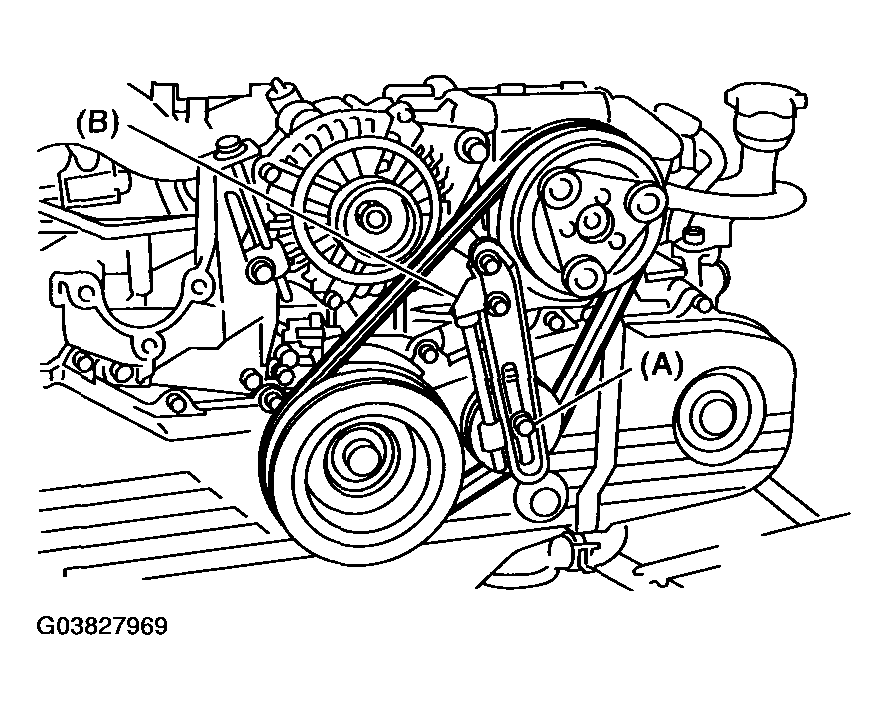

- Install a V belt, and tighten the slider bolt (B) so as to obtain the specified belt tension.
< Ref. to , INSPECTION , V-belt. >
- Tighten the lock nut (A).
Tightening torque:
Lock nut (A);
23 N.m (2.3 kgf-m, 17.0 ft-lb)
