Belt Idler And Automatic Belt Tension Adjuster Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove the belt idler (No. 1).

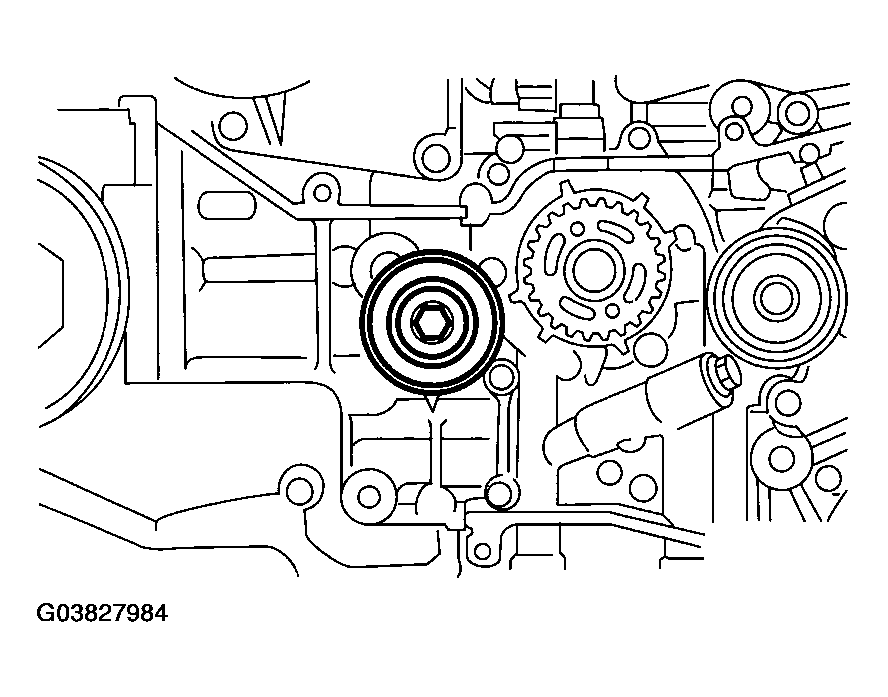

    Fig 1: Removing Belt Idler No. 1
    G03827984Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the automatic belt tension adjuster assembly.

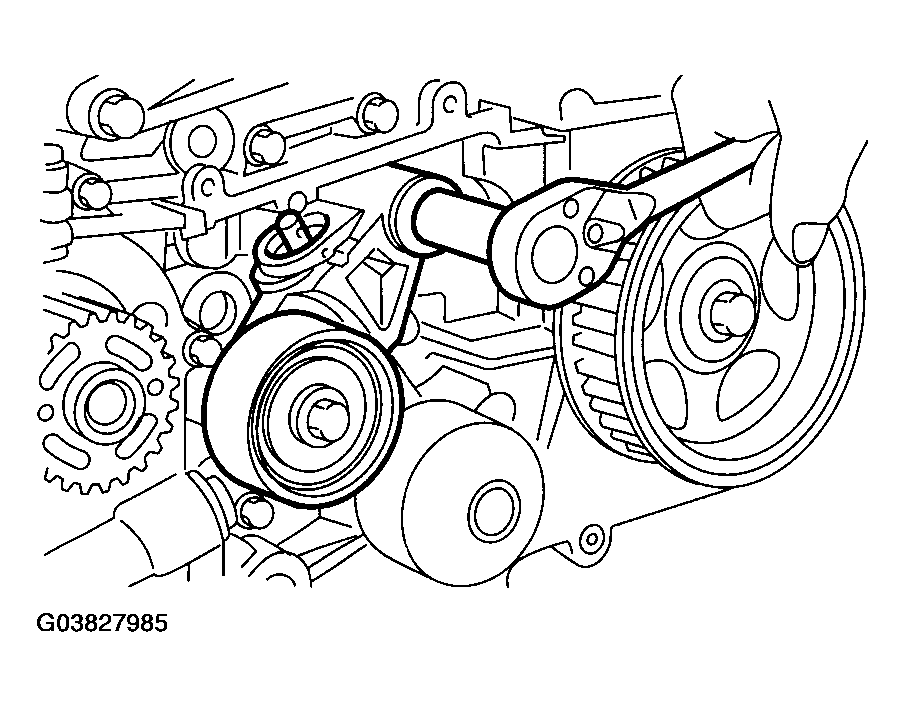

Fig 2: Removing Automatic Belt Tension Adjuster Assembly
G03827985Courtesy of SUBARU OF AMERICA, INC.
