Preparation for Overhaul: Procedure

WARNING: This page is about a different variant/trim than selected.

After removing the engine from the body, secure it in the ST shown in Fig 1 .
ST1 498457000 ENGINE STAND ADAPTER RH

ST2 498457100 ENGINE STAND ADAPTER LH

ST3 499817100 ENGINE STAND

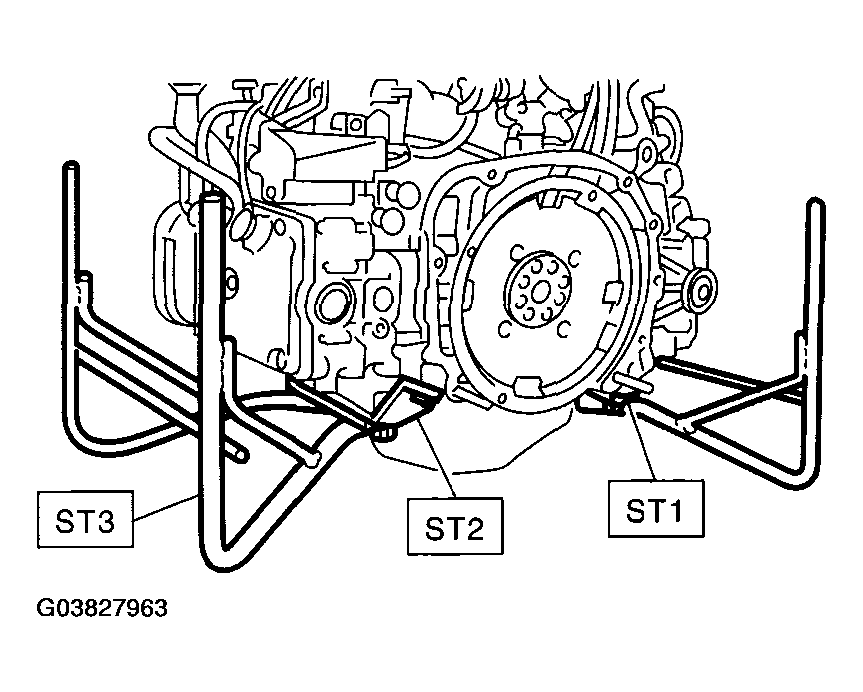

Fig 1: Securing Engine To Special Tools
Courtesy of SUBARU OF AMERICA, INC.
In this article the procedures are all connected and stated in order. The procedure for overhauling of the engine will be completed when you go through all steps in the process.

Therefore, in this article, to conduct the particular procedure within the flow of a section, you need to go back and conduct the procedure described previously in order to do that particular procedure.
