Special Tool

WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOL DESCRIPTION

ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
Fig 1 18231AA010 CAM SPROCKET WRENCH
  • Used for removing and installing cam sprocket.
  • CAM SPROCKET WRENCH (499207100) can also be used.
Fig 2 24082AA260 CARTRIDGE Troubleshooting for electrical system.
Fig 3 22771AA030 SUBARU SELECT MONITOR KIT Troubleshooting for electrical system.
Fig 4 498267800 CYLINDER HEAD TABLE
  • Used for replacing valve guides.
  • Used for removing and installing valve spring.
Fig 5 498277200 STOPPER SET Used for installing automatic transmission assembly to engine.
Fig 6 498457000 ENGINE STAND ADAPTER RH Used with ENGINE STAND (499817100).
Fig 7 498457100 ENGINE STAND ADAPTER LH Used with ENGINE STAND (499817100).
Fig 8 498497100 CRANKSHAFT STOPPER Used for stopping rotation of flywheel when loosening/tightening crank pulley bolt.
Fig 9 498747300 PISTON GUIDE Used for installing piston in cylinder.
Fig 10 498857100 VALVE OIL SEAL GUIDE Used for press-fitting of intake and exhaust valve guide oil seals.
Fig 11 499017100 PISTON PIN GUIDE Used for installing piston pin, piston and connecting rod.
Fig 12 499037100 CONNECTING ROD BUSHING REMOVER AND INSTALLER Used for removing and installing connecting rod bushing.
Fig 13 499587200 CRANKSHAFT OIL SEAL INSTALLER
  • Used for installing crankshaft oil seal.
  • Used with CRANKSHAFT OIL SEAL GUIDE (499597100).
Fig 14 499587500 OIL SEAL INSTALLER
  • Used for installing camshaft oil seal.
  • Used with OIL SEAL GUIDE (499597000).
Fig 15 499587700 CAMSHAFT OIL SEAL INSTALLER Used for installing cylinder head plug.
Fig 16 499097700 PISTON PIN REMOVER ASSY Used for removing piston pin.
Fig 17 499497000 TORX® PLUS Used for removing and installing camshaft cap.
Fig 18 499587100 OIL SEAL INSTALLER Used for installing oil pump oil seal.
Fig 19 499597000 OIL SEAL GUIDE
  • Used for installing camshaft oil seal.
  • Used with CAMSHAFT OIL SEAL INSTALLER (499587500).
Fig 20 499597100 CRANKSHAFT OIL SEAL GUIDE
  • Used for installing crankshaft oil seal.
  • Used with CRANKSHAFT OIL SEAL INSTALLER (499587200).
Fig 21 499718000 VALVE SPRING REMOVER Used for removing and installing valve spring.
Fig 22 499767200 VALVE GUIDE REMOVER Used for removing valve guides.
Fig 23 499767400 VALVE GUIDE REAMER Used for reaming valve guides.
Fig 24 499767700 VALVE GUIDE ADJUSTER Used for installing valve guides. (Intake side)
Fig 25 499767800 VALVE GUIDE ADJUSTER Used for installing valve guides. (Exhaust side)
Fig 26 499817100 ENGINE STAND
  • Stand used for engine disassembly and assembly.
  • Used with ENGINE STAND ADAPTER RH (498457000) & LH (498457100).
Fig 27 499977100 CRANK PULLEY WRENCH Used for stopping rotation of crank pulley when loosening/tightening crank pulley bolt.
Fig 28 498547000 OIL FILTER WRENCH Used for removing and installing oil filter. (Outer diameter: 80 mm (3.15 in))
Fig 29 18332AA000 OIL FILTER WRENCH Used for removing and installing oil filter. (Outer diameter: 68 mm (2.68 in))
Fig 30 18332AA010 OIL FILTER WRENCH Used for removing and installing oil filter. (Outer diameter: 65 mm (2.56 in))
Fig 31 499987500 CRANKSHAFT SOCKET Used for rotating crankshaft.
Fig 1: Identifying Special Tool ST18231AA010
G03827884Courtesy of SUBARU OF AMERICA, INC.
Fig 2: Identifying Special Tool ST24082AA260
G03827885Courtesy of SUBARU OF AMERICA, INC.

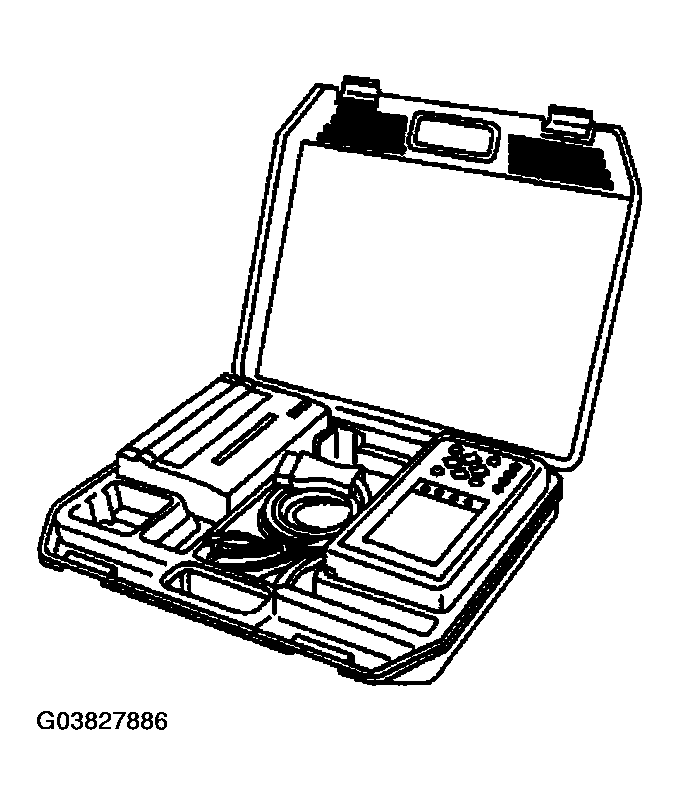

Fig 3: Identifying Special Tool ST22771AA030
G03827886Courtesy of SUBARU OF AMERICA, INC.
Fig 4: Identifying Special Tool ST-498267800
G03827887Courtesy of SUBARU OF AMERICA, INC.
Fig 5: Identifying Special Tool ST-498277200
G03827888Courtesy of SUBARU OF AMERICA, INC.
Fig 6: Identifying Special Tool ST-498457000
G03827889Courtesy of SUBARU OF AMERICA, INC.
Fig 7: Identifying Special Tool ST-498457100
G03827890Courtesy of SUBARU OF AMERICA, INC.
Fig 8: Identifying Special Tool ST-498497100
G03827891Courtesy of SUBARU OF AMERICA, INC.
Fig 9: Identifying Special Tool ST-498747300
G03827892Courtesy of SUBARU OF AMERICA, INC.
Fig 10: Identifying Special Tool ST-498857100
G03827893Courtesy of SUBARU OF AMERICA, INC.
Fig 11: Identifying Special Tool ST-499017100
G03827894Courtesy of SUBARU OF AMERICA, INC.
Fig 12: Identifying Special Tool ST-499037100
G03827895Courtesy of SUBARU OF AMERICA, INC.
Fig 13: Identifying Special Tool ST-499587200
G03827896Courtesy of SUBARU OF AMERICA, INC.
Fig 14: Identifying Special Tool ST-499587500
G03827897Courtesy of SUBARU OF AMERICA, INC.
Fig 15: Identifying Special Tool ST-499587700
G03827898Courtesy of SUBARU OF AMERICA, INC.
Fig 16: Identifying Special Tool ST-499097700
G03827899Courtesy of SUBARU OF AMERICA, INC.
Fig 17: Identifying Special Tool ST-499497000
G03827900Courtesy of SUBARU OF AMERICA, INC.
Fig 18: Identifying Special Tool ST-499587100
G03827901Courtesy of SUBARU OF AMERICA, INC.
Fig 19: Identifying Special Tool ST-499597000
G03827902Courtesy of SUBARU OF AMERICA, INC.
Fig 20: Identifying Special Tool ST-499597100
G03827903Courtesy of SUBARU OF AMERICA, INC.
Fig 21: Identifying Special Tool ST-499718000
G03827904Courtesy of SUBARU OF AMERICA, INC.
Fig 22: Identifying Special Tool ST-499767200
G03827905Courtesy of SUBARU OF AMERICA, INC.
Fig 23: Identifying Special Tool ST-499767400
G03827906Courtesy of SUBARU OF AMERICA, INC.
Fig 24: Identifying Special Tool ST-499767700
G03827907Courtesy of SUBARU OF AMERICA, INC.
Fig 25: Identifying Special Tool ST-499767800
G03827908Courtesy of SUBARU OF AMERICA, INC.
Fig 26: Identifying Special Tool ST-499817100
G03827909Courtesy of SUBARU OF AMERICA, INC.
Fig 27: Identifying Special Tool ST-499977100
G03827910Courtesy of SUBARU OF AMERICA, INC.
Fig 28: Identifying Special Tool ST-498547000
G03827911Courtesy of SUBARU OF AMERICA, INC.
Fig 29: Identifying Special Tool ST18332AA000
G03827912Courtesy of SUBARU OF AMERICA, INC.
Fig 30: Identifying Special Tool ST18332AA010
G03827913Courtesy of SUBARU OF AMERICA, INC.
Fig 31: Identifying Special Tool ST-499987500
G03827914Courtesy of SUBARU OF AMERICA, INC.
