Connecting Rod

WARNING: This page is about a different variant/trim than selected.

Replace the connecting rod, if the large or small end thrust surface is damaged.
Check for bend or twist using a connecting rod aligner. Replace the connecting rod if the bend or twist exceeds the limit.
Limit of bend or twist per 100 mm (3.94 in) in length:

0.10 mm (0.0039 in)

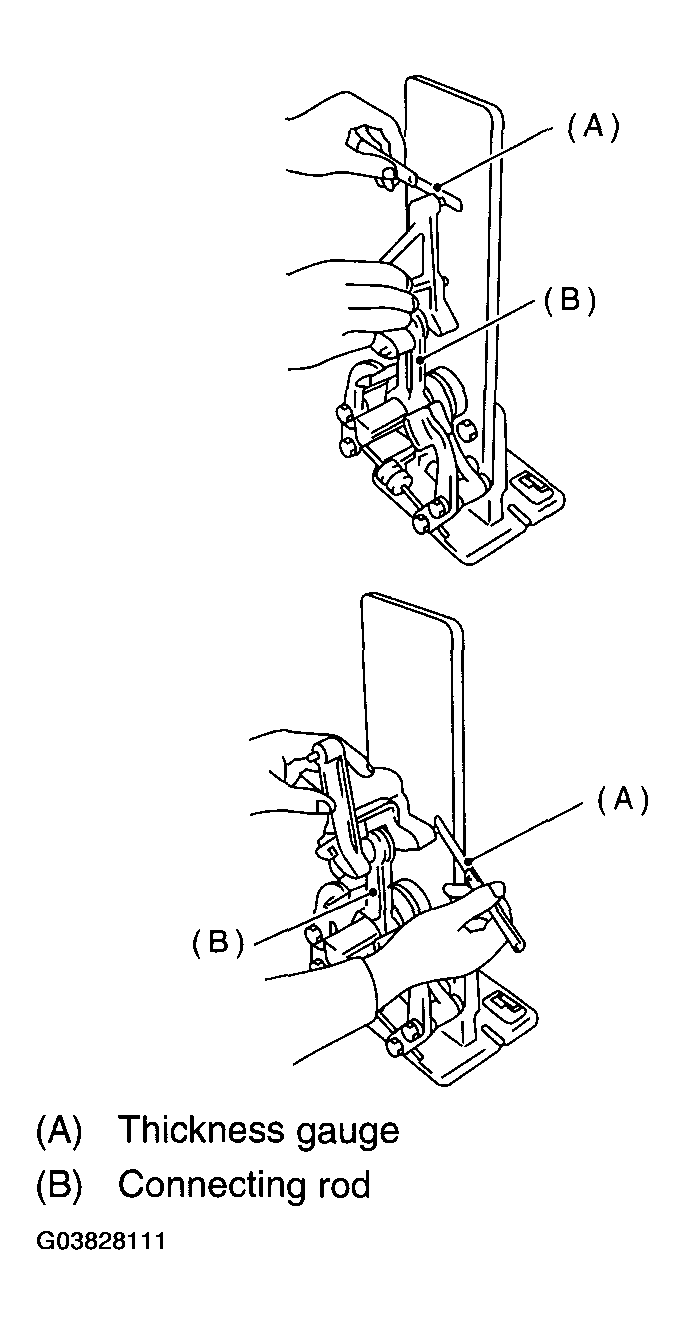

Fig 1: Checking Bend Or Twist Using Connecting Rod Aligner
Courtesy of SUBARU OF AMERICA, INC.
Install the connecting rod fitted with bearing to crankshaft and measure the side clearance (thrust clearance). If side clearance exceeds the limit, replace the connecting rod.
Connecting rod side clearance:

Standard

0.070 - 0.330 mm (0.0028 - 0.0130 in)

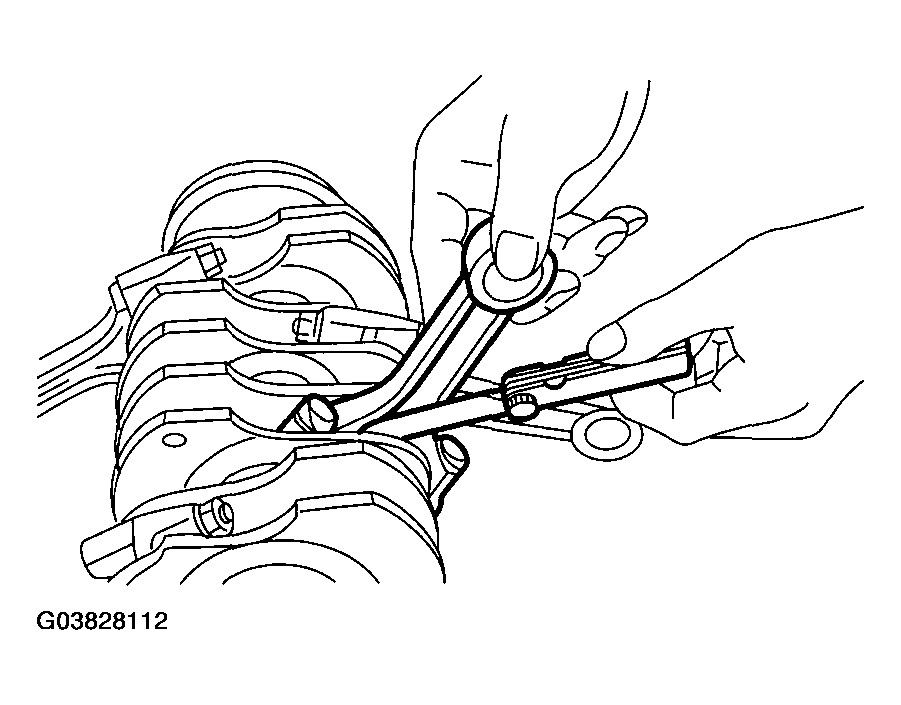

Fig 2: Measuring Side Clearance (Thrust Clearance)
Courtesy of SUBARU OF AMERICA, INC.
Inspect the connecting rod bearing for scar, peeling, seizure, melting, wear, etc.

Measure the oil clearance on individual connecting rod bearings by means of plastigauge. If any oil clearance is not within the specification, replace the defective bearing with a new one of standard size or undersize as necessary. (See the table below.)

Connecting rod oil clearance:

Standard

0.016 - 0.044 mm (0.00063 - 0.0017 in)

OIL CLEARANCE REFERENCE

Unit: mm (in)
Bearings	Bearing size (Thickness at center)	Outer diameter of crank pin
Standard	1.492 - 1.501 (0.0587 - 0.0591)	51.984 - 52.000 (2.0466 - 2.0472)
0.03 (0.0012) undersize	1.510 - 1.513 (0.0594 - 0.0596)	51.954 - 51.970 (2.0454 - 2.0461)
0.05 (0.0020) undersize	1.520 - 1.523 (0.0598 - 0.0600)	51.934 - 51.950 (2.0446 - 2.0453)
0.25 (0.0098) undersize	1.620 - 1.623 (0.0638 - 0.0639)	51.734 - 51.750 (2.0368 - 2.0374)

Inspect the bushing at connecting rod small end, and replace if worn or damaged. Also measure the piston pin clearance at the connecting rod small end.
Clearance between piston pin and bushing:

Standard

0 - 0.022 mm (0 - 0.0009 in)

Fig 3: Measuring Piston Pin Clearance Connecting Rod Small End
Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Measuring Diameter Pin
Courtesy of SUBARU OF AMERICA, INC.
Replacement procedure is as follows.
1. Remove the bushing from connecting rod with ST and press.
2. Press the bushing with ST after applying oil on the periphery of bushing.
  ST 499037100 CONNECTING ROD BUSHING REMOVER AND INSTALLER

  Fig 5: Pressing Bushing Using Special Tool
  Courtesy of SUBARU OF AMERICA, INC.
3. Make two 3 mm (0.12 in) - holes in bushing. Ream the inside of bushing.
4. After completion of reaming, clean the bushing to remove chips.
