U5 Model

WARNING: This page is about a different variant/trim than selected.

Loosen the clamp (A) which connects air intake chamber to throttle body.
Loosen the clamp (B) which connects air intake boot to air intake chamber.
Remove the bolt (C) which secures air intake chamber to stay.

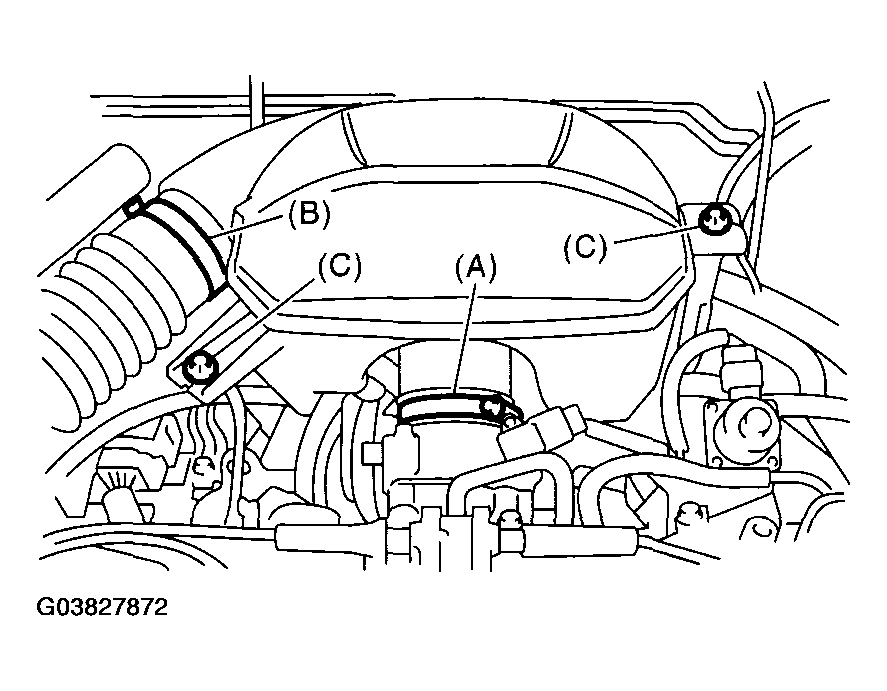

Fig 1: Removing Air Intake Chamber (U5 Model)
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the blow-by hoses, and then remove air intake chamber.
