Except For U5 Model

WARNING: This page is about a different variant/trim than selected.
  1. Loosen the clamp (A) which connects air intake chamber to throttle body.
  2. Loosen the clamp (B) which connects intake duct to air intake chamber.
  3. Remove the bolt (C) which secures air intake chamber to the stay.

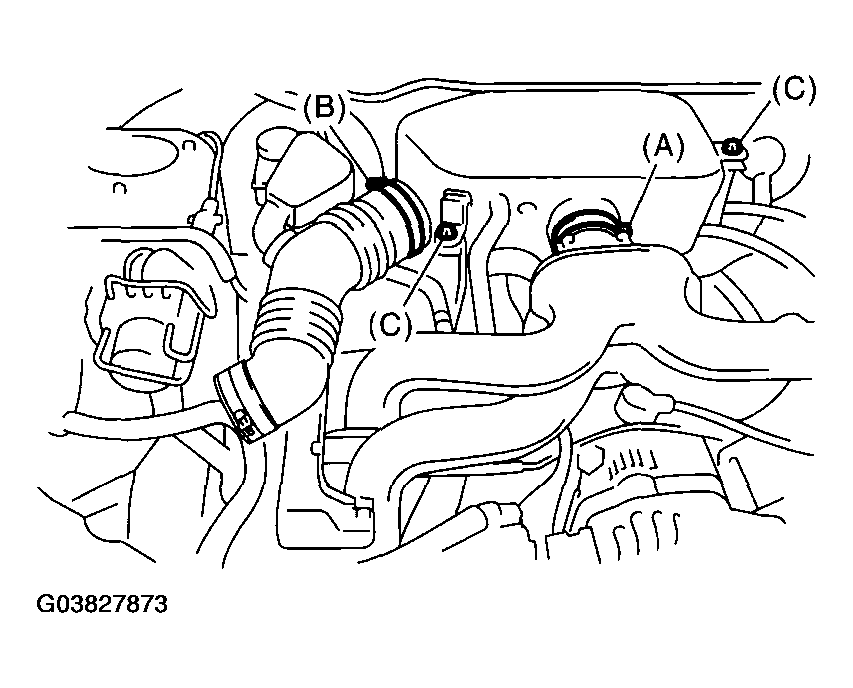

    Fig 1: Removing Air Intake Chamber (Except U5 Model)
    G03827873Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the blow-by hose, and remove the air intake chamber.
