Air Cleaner Element: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground cable from battery.

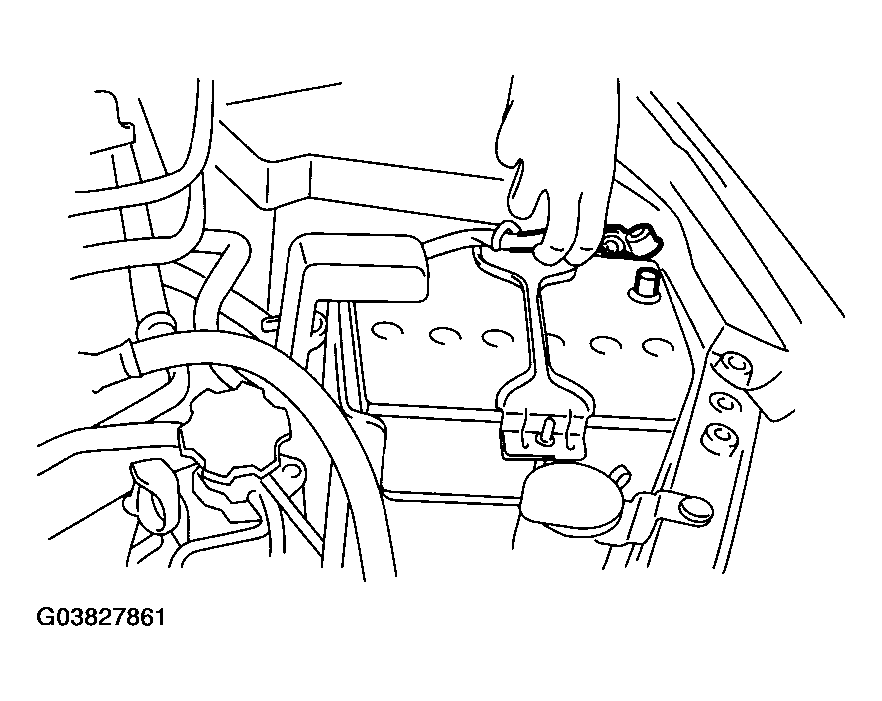

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from mass air flow and intake air temperature sensor.

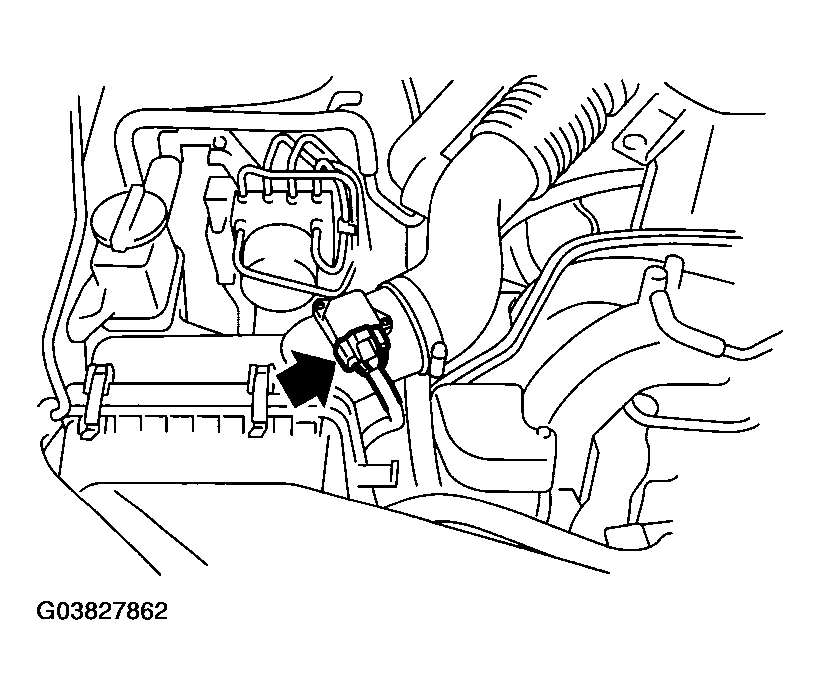

Fig 2: Disconnecting Mass Air Flow And Intake Air Temperature Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the clip (A) from upper side of air cleaner case.

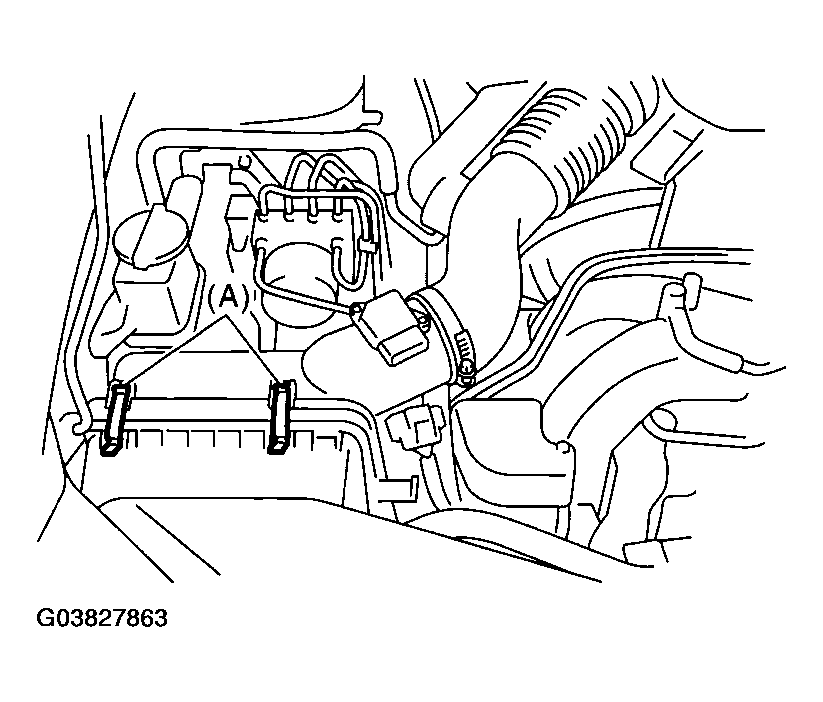

Fig 3: Removing Clip From Upper Side Of Air Cleaner Case
Courtesy of SUBARU OF AMERICA, INC.
Pull the air cleaner case (rear) to rearward of the vehicle, and then remove the air cleaner element.

NOTE: Be careful that the power steering hose is secured to the under side of air cleaner case (rear).
