Release Bearing

WARNING: This page is about a different variant/trim than selected.

NOTE: Since this bearing is grease-sealed and non-lubrication type, do not wash with gasoline or any solvent when servicing the clutch.

Check the bearing for smooth movement by applying force to the bearing in radial direction.
Radial direction stroke:

1.6 mm (0.063 in)

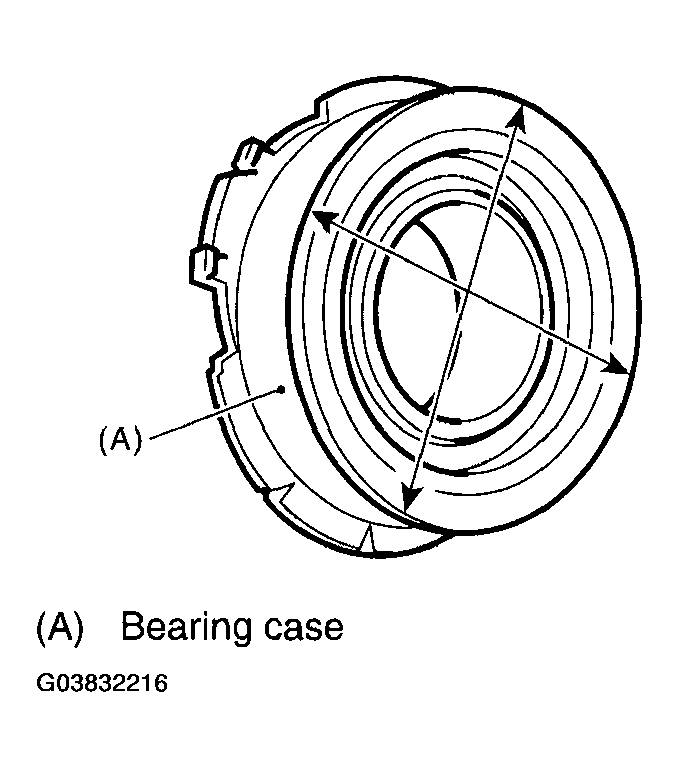

Fig 1: Identifying Radial Direction Stroke
Courtesy of SUBARU OF AMERICA, INC.
Check the bearing for smooth rotation by applying force to the bearing in thrust direction.

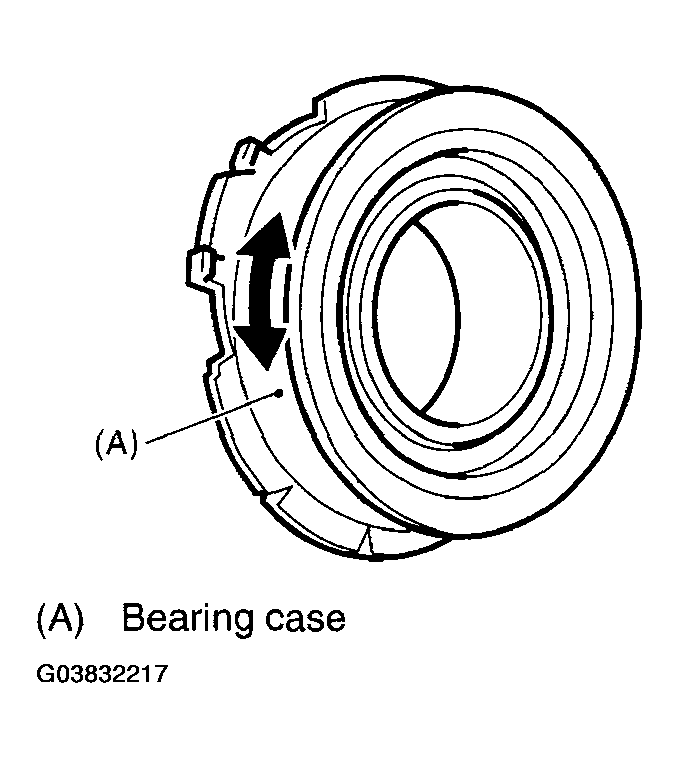

Fig 2: Checking Bearing For Smooth Rotation
Courtesy of SUBARU OF AMERICA, INC.
Check wear and damage of bearing case surface contacting with lever.
