Master Cylinder: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Thoroughly drain the brake fluid from reservoir tank.
  2. Remove the snap pin and clevis pin, and then separate the push rod of master cylinder from clutch pedal.
    Fig 1: Removing Snap Pin, Clevis Pin & Separate Push Rod From Clutch Pedal
    G03832222Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the air intake chamber. < Ref. to REMOVAL , Air Intake Chamber. >
  4. Disconnect the clutch pipes from master cylinder.
  5. Remove the master cylinder and reservoir tank as a unit.
CAUTION: Be careful not to spill the brake fluid. Brake fluid spilled on the vehicle body will harm the paint surface; wipe it off quickly if spilled.

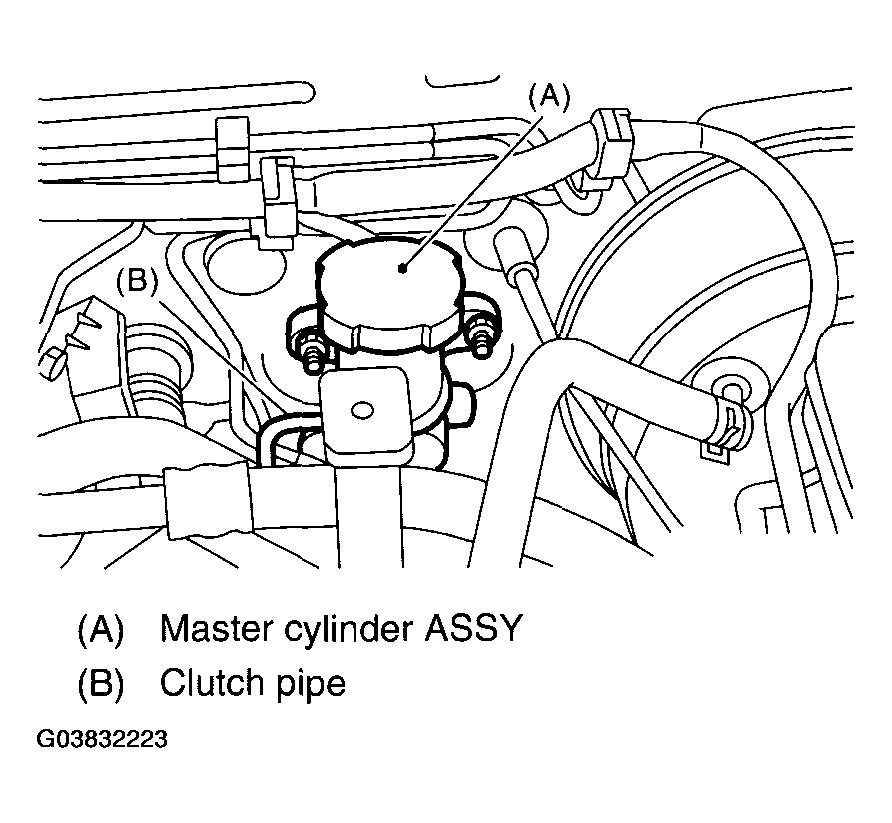

Fig 2: Removing Master Cylinder And Reservoir Tank As Unit
G03832223Courtesy of SUBARU OF AMERICA, INC.
