Clutch Switch (Starter Interlock)

WARNING: This page is about a different variant/trim than selected.
  1. Fully depress the clutch pedal.
  2. Install the clutch pedal plate and clutch pedal so that the gap between them is 2 - 2.5 mm (0.08 - 0.10 in), and then tighten the lock nut.

    Tightening torque:

    8 N.m (0.8 kgf-m, 5.8 ft-lb)

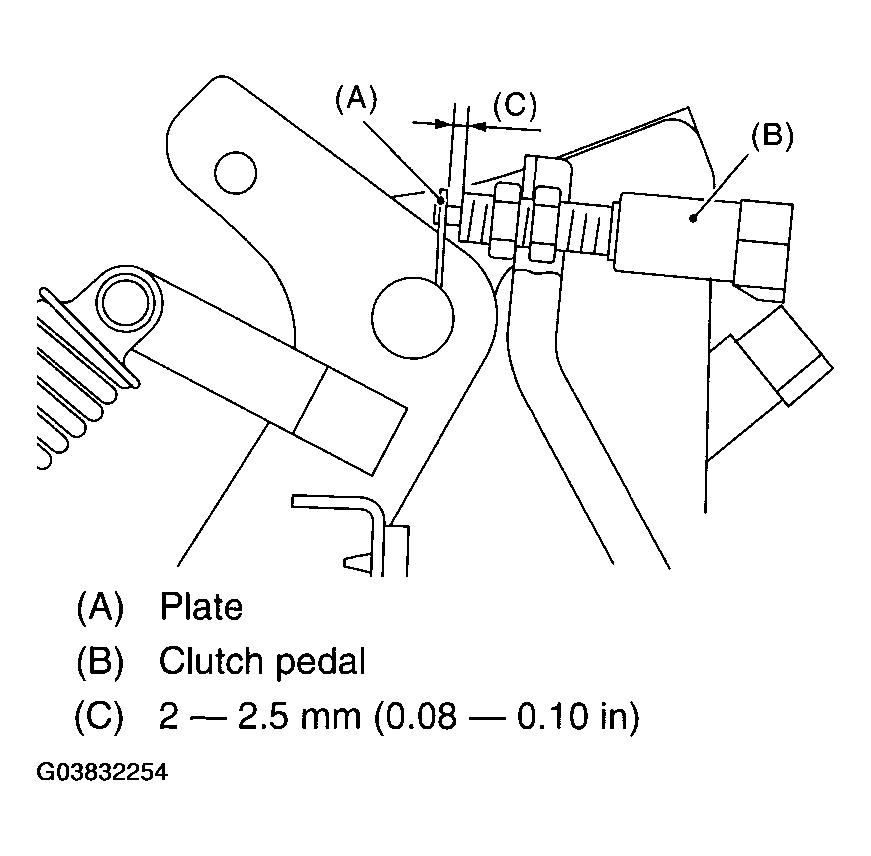

    Fig 1: Identifying Clutch Switch (Starter Interlock)
    G03832254Courtesy of SUBARU OF AMERICA, INC.
  3. Connect the clutch switch connector.
  4. Confirm that the engine does not start when the clutch pedal is released.
  5. Confirm that the engine starts when the clutch pedal is fully depressed.
