Clutch Switch: Adjustment

1. Loosen the clutch switch mounting lock nut (Starter interlock).

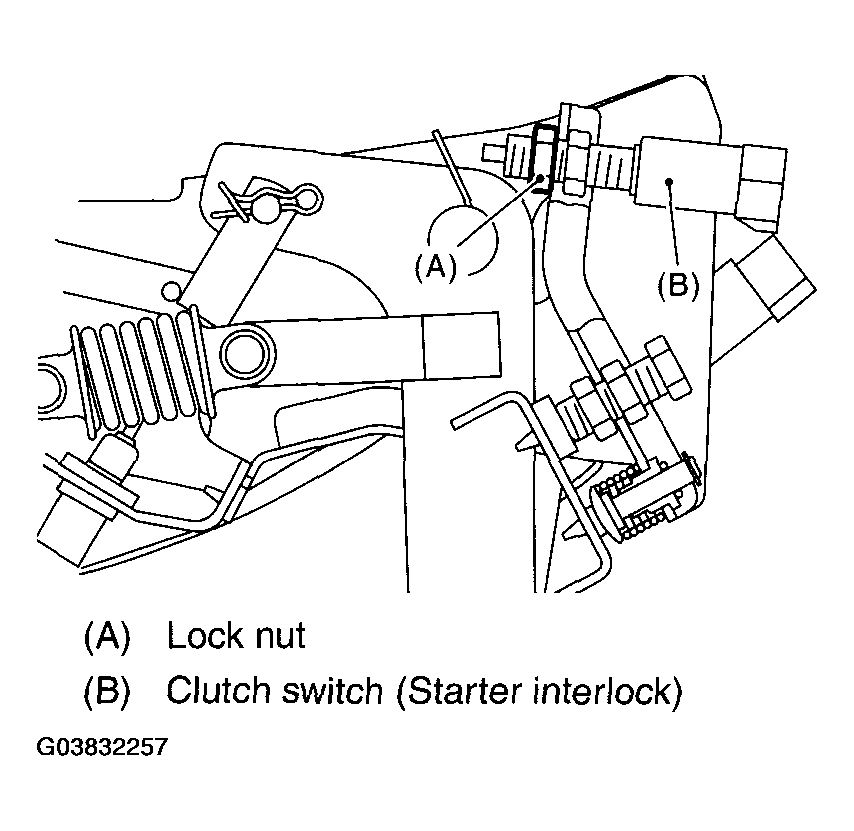

   Fig 1: Loosening Clutch Switch Mounting Lock Nut (Starter Interlock)

   Courtesy of SUBARU OF AMERICA, INC.
2. Fully depress the clutch pedal.
3. Adjust the clutch pedal plate and clutch switch so that the gap between them is 2 - 2.5 mm (0.08 - 0.10 in).

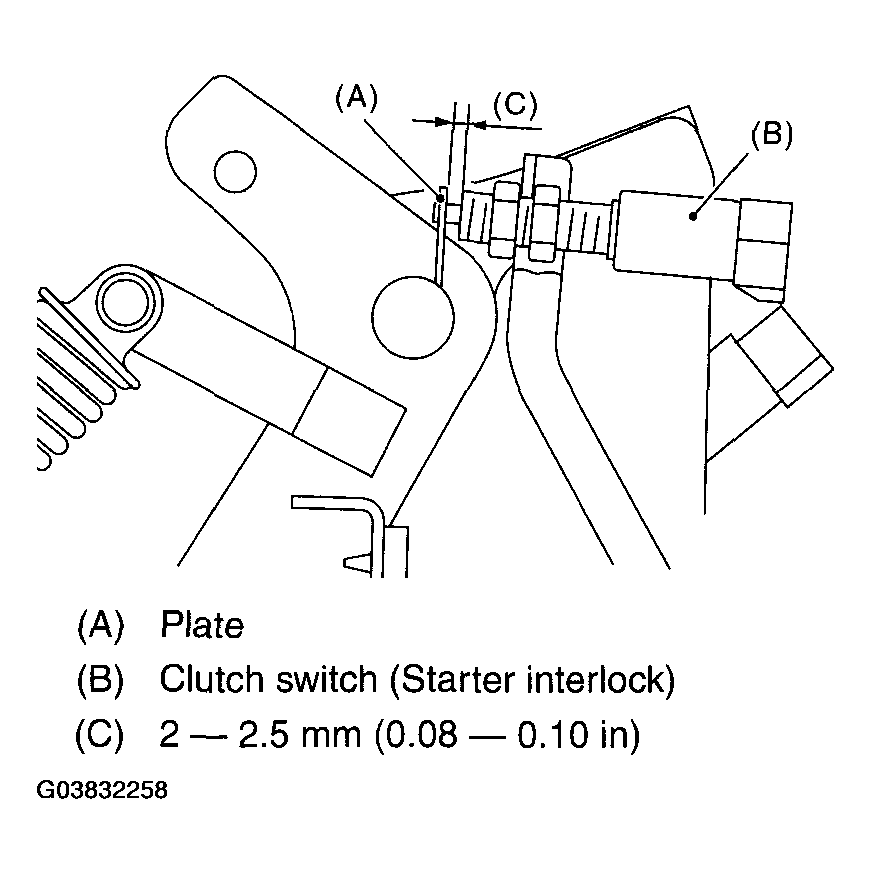

   Fig 2: Adjusting Clutch Pedal Plate

   Courtesy of SUBARU OF AMERICA, INC.
4. Tighten the lock nut.

Tightening torque (Clutch stopper nut):

8 N.m (0.8 kgf-m, 5.8 ft-lb)
