Clutch Pipe and Hose: Installation
WARNING: This page is about a different variant/trim than selected.
Install in the reverse order of removal.
NOTE:
Bleed the air of clutch fluid. < Ref. to
, CLUTCH FLUID AIR BLEEDING . >

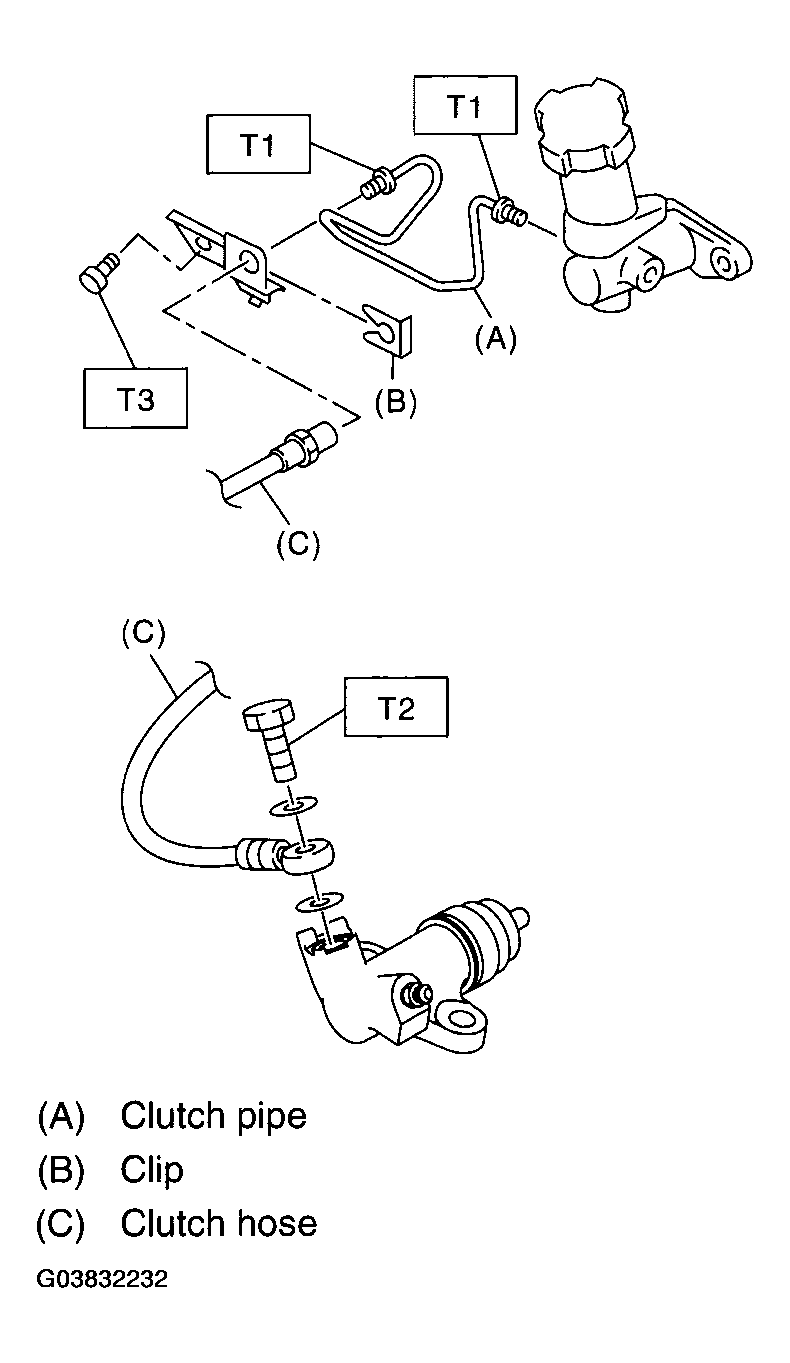

Tightening torque:
T1: 15 N.m (1.5 kgf-m, 10.8 ft-lb)
T2: 18 N.m (1.8 kgf-m, 13.0 ft-lb)
T3: 25 N.m (2.5 kgf-m, 18.4 ft-lb)
