Clutch Pedal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground cable from battery.
  2. Remove the steering column. < Ref. to REMOVAL , Tilt Steering Column. >
  3. Disconnect the connectors from the stop light and clutch switches.
  4. Remove the snap pins which secure lever to push rod and operating rod.
  5. Remove the clevis pins which secure lever to push rod and operating rod.

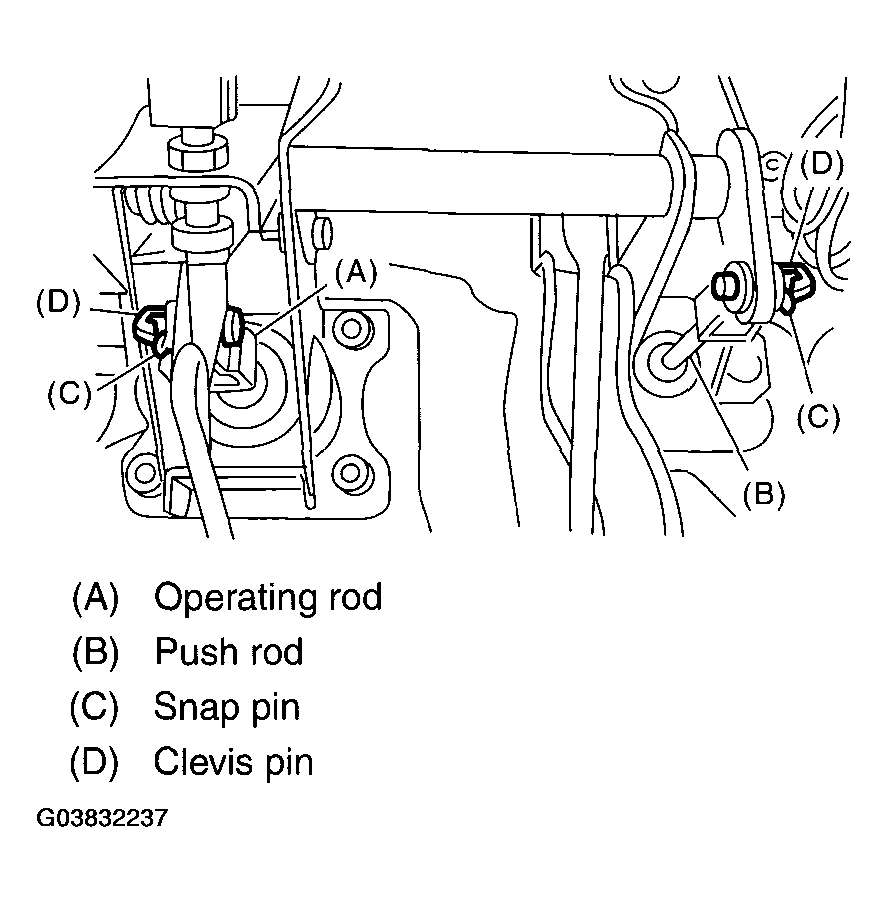

    Fig 1: Removing Clevis Pins
    G03832237Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the nut which secures clutch master cylinder.

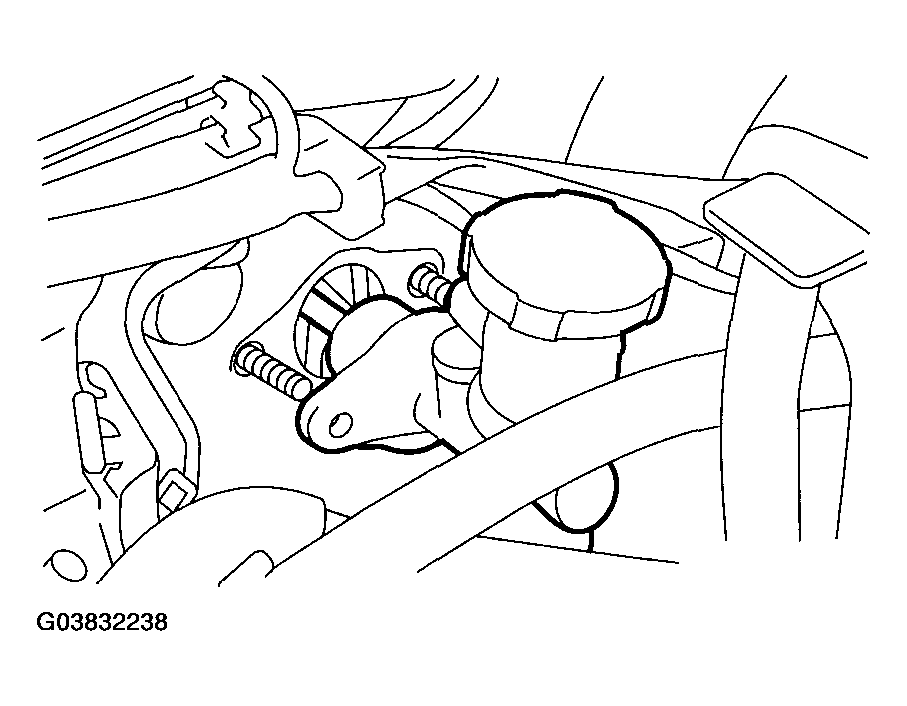

    Fig 2: Removing Nut Which Secures Clutch Master Cylinder
    G03832238Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the bolts and nuts which secure brake pedal and clutch pedal, and remove the pedal assembly.
