Clutch Pedal: Disassembly

WARNING: This page is about a different variant/trim than selected.

Remove the clutch switches.
Remove the clips, assist spring, rod and bushing.

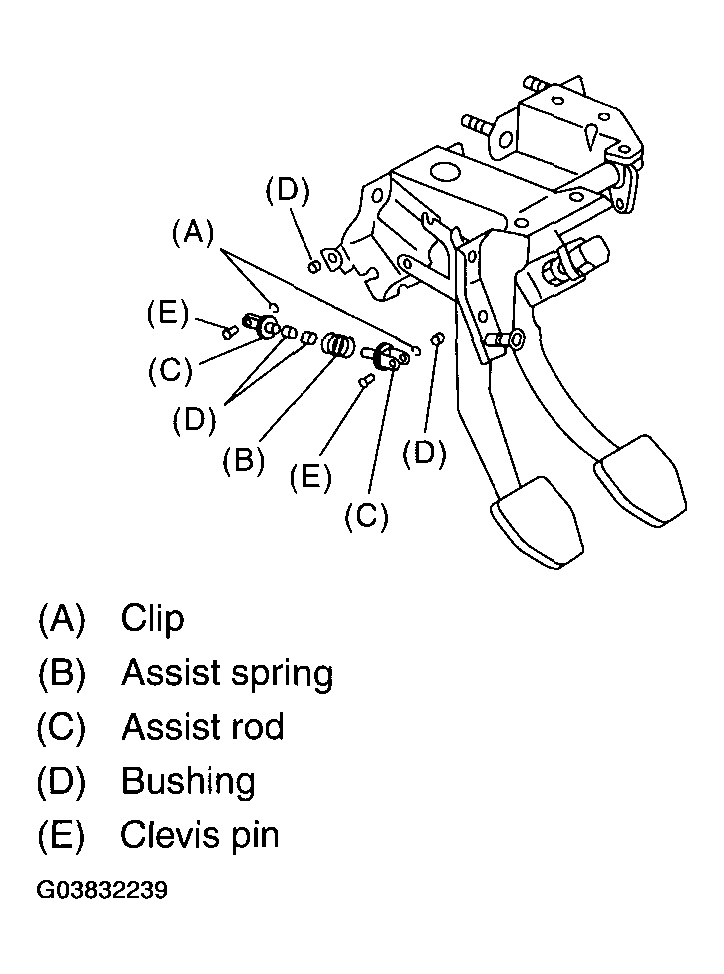

Fig 1: Removing Clips, Assist Spring, Rod And Bushing
Courtesy of SUBARU OF AMERICA, INC.
Remove the spring pin and lever.

Fig 2: Removing Spring Pin And Lever
Courtesy of SUBARU OF AMERICA, INC.
Remove the clutch pedal and bushings.

Fig 3: Removing Clutch Pedal And Bushings
Courtesy of SUBARU OF AMERICA, INC.
Remove the stopper, clip and rod S, and then remove the spring and bushing S.

Fig 4: Removing Spring And Bushing S
Courtesy of SUBARU OF AMERICA, INC.
Remove the stoppers from clutch pedal.
Remove the clutch pedal pad.
