Clutch Fluid Air Bleeding: Procedure

WARNING: This page is about a different variant/trim than selected.

NOTE: Bleed air from the oil line with help of a co-worker.

Remove the air intake chamber. < Ref. to REMOVAL , Air Intake Chamber. >

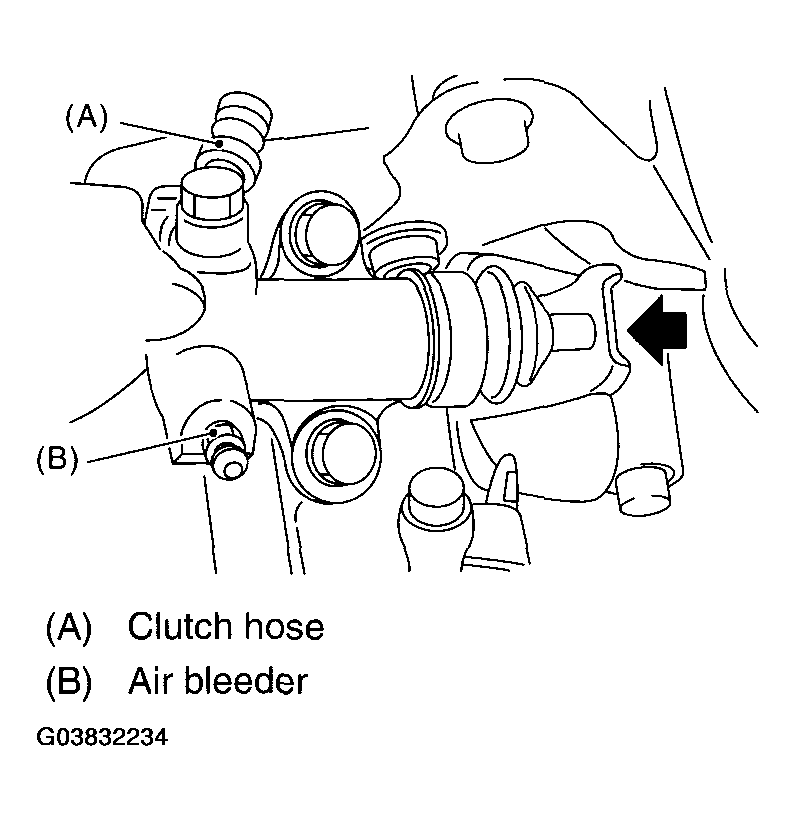

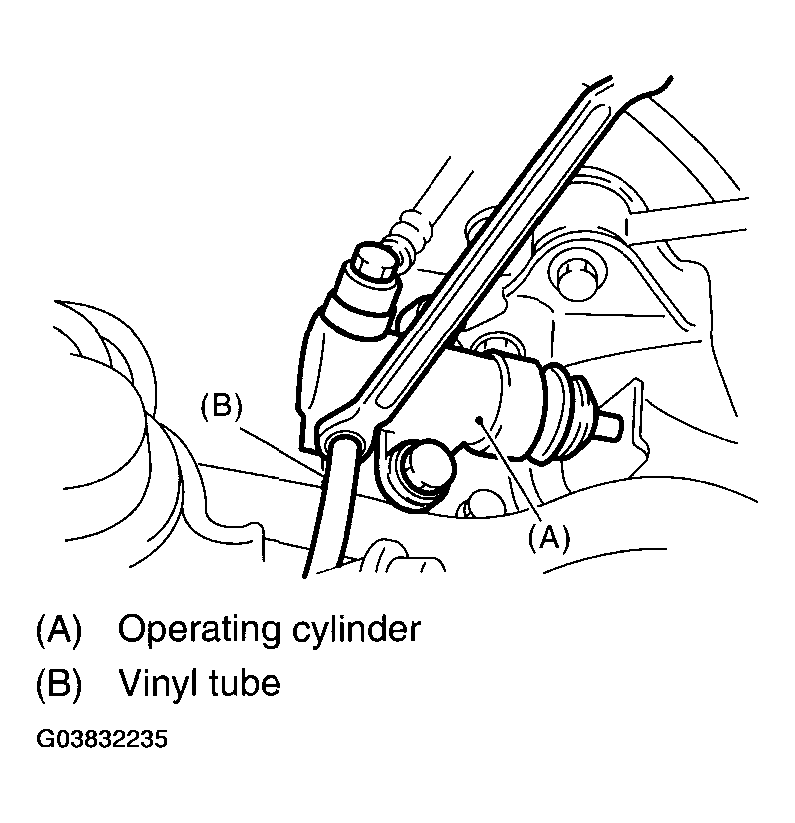

Fit one end of a vinyl tube into the air bleeder of operating cylinder and put the other end into a brake fluid container.

Fig 1: Removing Air Intake Chamber
Courtesy of SUBARU OF AMERICA, INC.
Slowly depress the clutch pedal and keep it depressed. Then open the air bleeder to discharge air together with the fluid.
Release the air bleeder for 1 or 2 seconds. Next, with the bleeder closed, slowly release the clutch pedal.

CAUTION: When loosening bleeder screw, cover the bleeder with cloth to prevent brake fluid from being splashed over surrounding parts.

Fig 2: Releasing Air Bleeder For 1 Or 2 Seconds
Courtesy of SUBARU OF AMERICA, INC.
Repeat the procedure 3), until there are no more air bubbles in the vinyl tube.

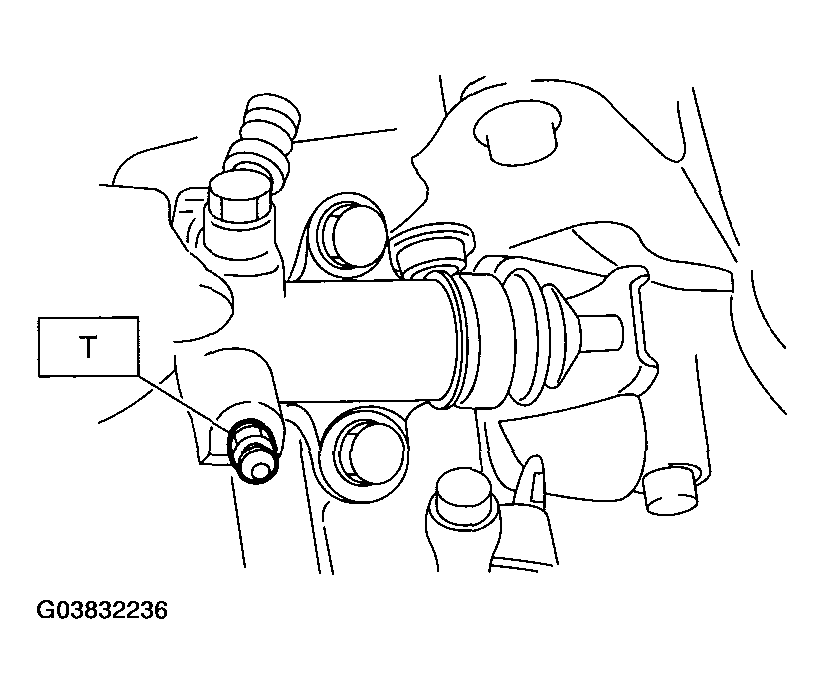

Tighten the air bleeder.
Tightening torque:

T: 8 N.m (0.8 kgf-m, 5.8 ft-lb)

Fig 3: Tightening Air Bleeder
Courtesy of SUBARU OF AMERICA, INC.
After depressing the clutch pedal, make sure that there are no leaks evident in the entire clutch system.
After bleeding air from the clutch system, ensure that clutch operates properly.
