Clutch Cover

WARNING: This page is about a different variant/trim than selected.

NOTE: Visually check the following items without disassembling, and replace or repair if defective.

Loose thrust rivet
Damaged or worn bearing contact area at the center of diaphragm spring

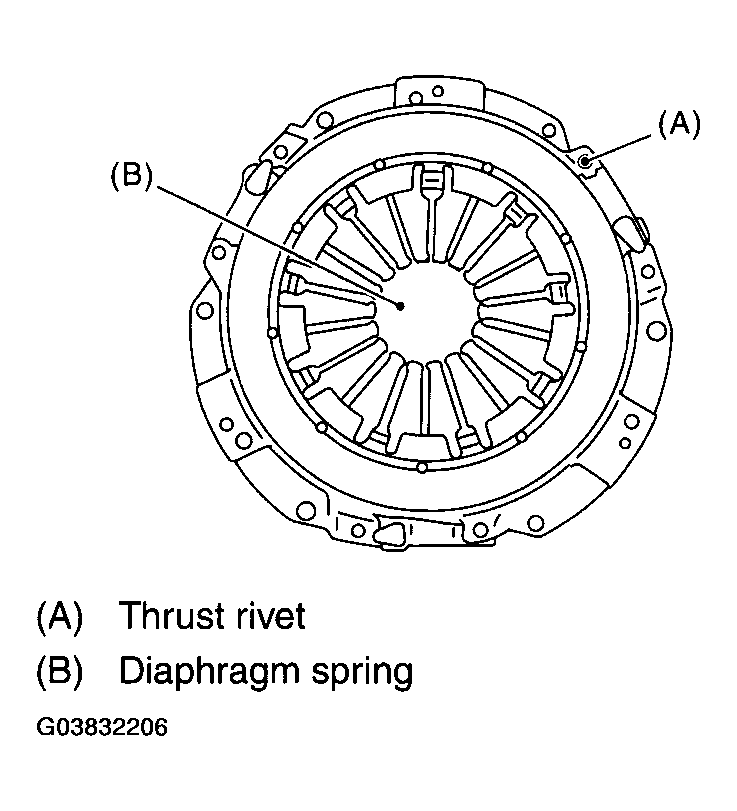

Fig 1: Replacing Or Repair Defective
Courtesy of SUBARU OF AMERICA, INC.
Damaged or worn disc contact surface of pressure plate
Loose strap plate installation area
Worn diaphragm sliding area

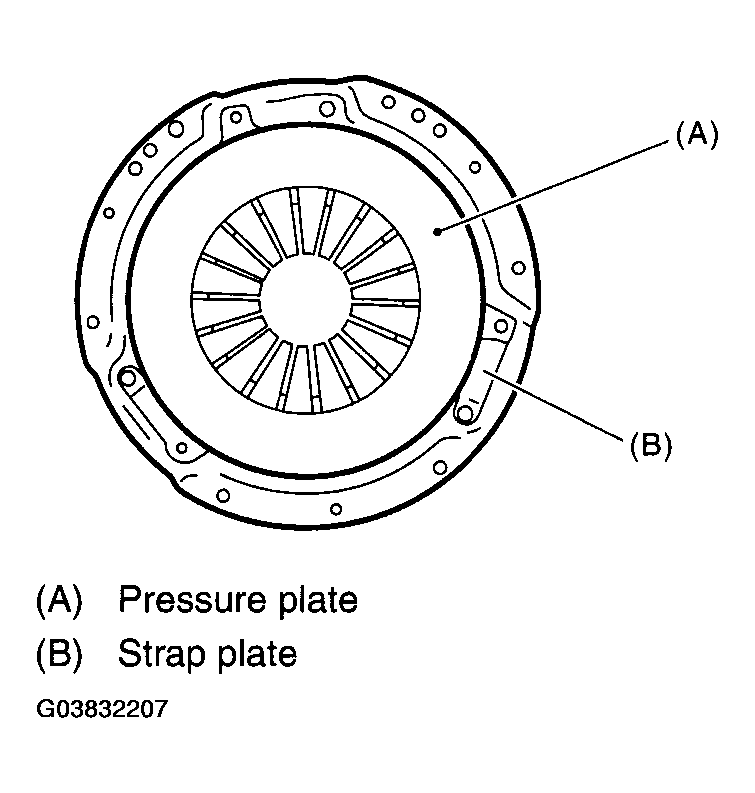

Fig 2: Identifying Worn Disc Contact Surface Of Pressure Plate
Courtesy of SUBARU OF AMERICA, INC.
