Transmission Gear Oil: Replacement

WARNING: This page is about a different variant/trim than selected.

Pull out the oil level gauge.
Lift-up the vehicle.
Drain transmission gear oil completely.
CAUTION: Be careful not to burn yourself, because transmission gear oil becomes extremely hot after running.
NOTE:
- Tighten the transmission gear oil drain plug after draining transmission gear oil.
- Use a new gasket.
Tightening torque:

70 N.m (7.1 kgf-m, 51 ft-lb)

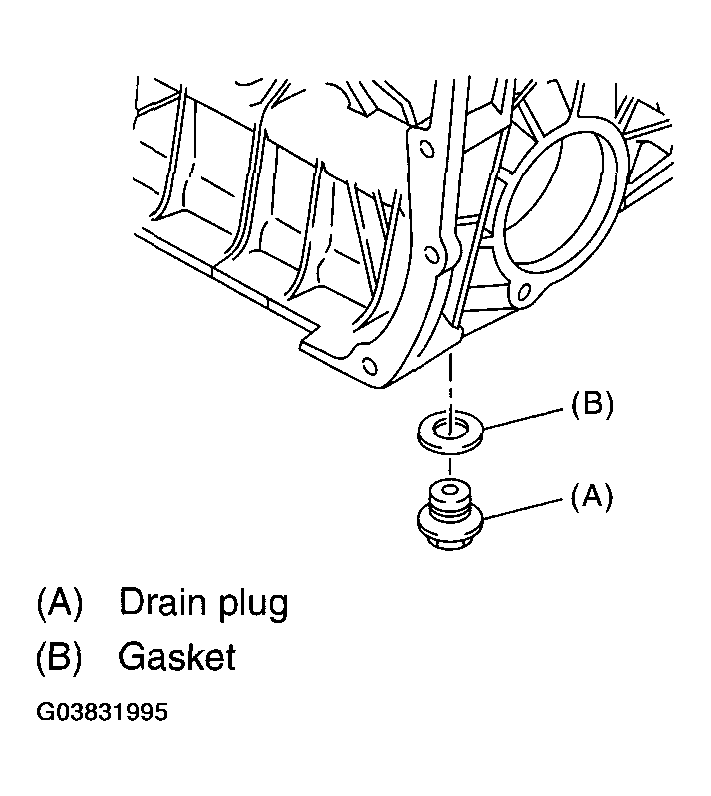

Fig 1: Removing Drain Plug
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Pour gear oil through the gauge hole.
Recommended gear oil:

GL-5 (75W-90) or equivalent

Gear oil capacity:

3.5 Lambda (3.7 US qt, 3.1 Imp qt)
Check the level of transmission gear oil.

CAUTION: The level should be within the specified range marked on the gauge.
