Transfer Drive Gear: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove the snap ring.

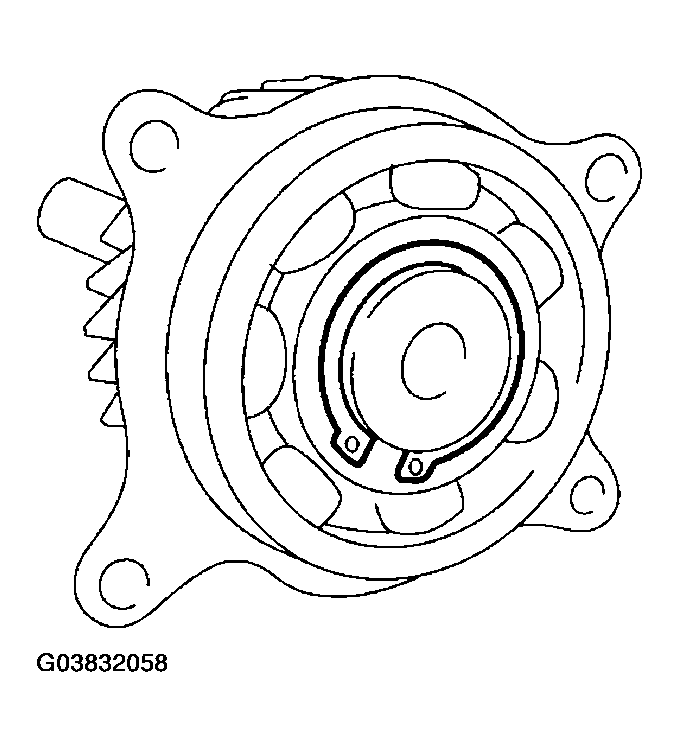

    Fig 1: Removing Snap Ring
    G03832058Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the ball bearing.
Fig 2: Removing Ball Bearing
G03832059Courtesy of SUBARU OF AMERICA, INC.
