Transfer Case

WARNING: This page is about a different variant/trim than selected.
  1. Remove the reverse check assembly. < Ref. to , REMOVAL , Reverse Check Sleeve. >
  2. Remove the oil guide.

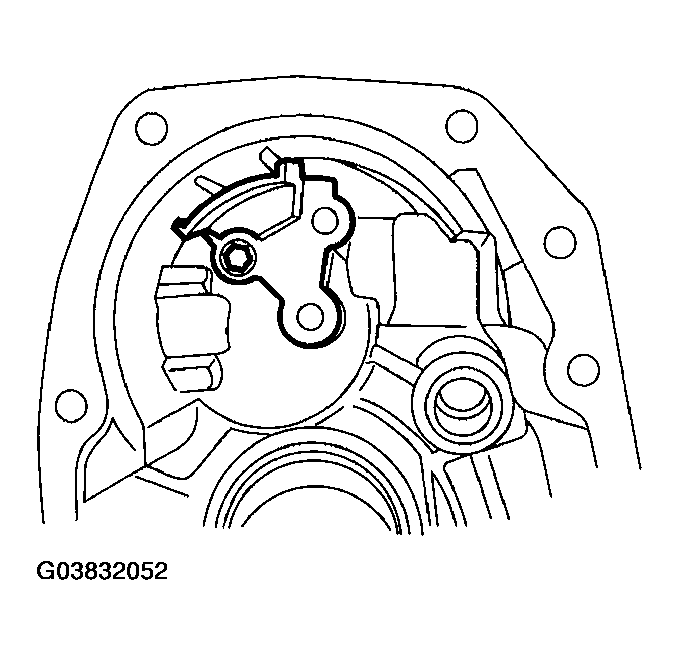

Fig 1: Removing Oil Guide
G03832052Courtesy of SUBARU OF AMERICA, INC.
