Reverse Check Sleeve: Inspection

WARNING: This page is about a different variant/trim than selected.

Make sure the cutout of reverse accent shaft is aligned with the opening in reverse check sleeve.
Check the cam for smooth rotation by turning with hand.
Make sure the cam and shaft move all the way toward plate and release.
If the cam does not return properly, replace the reverse check spring. If the shaft does not return, check for scratches on the inner surface of sleeve. If the sleeve is in good order, replace the spring.

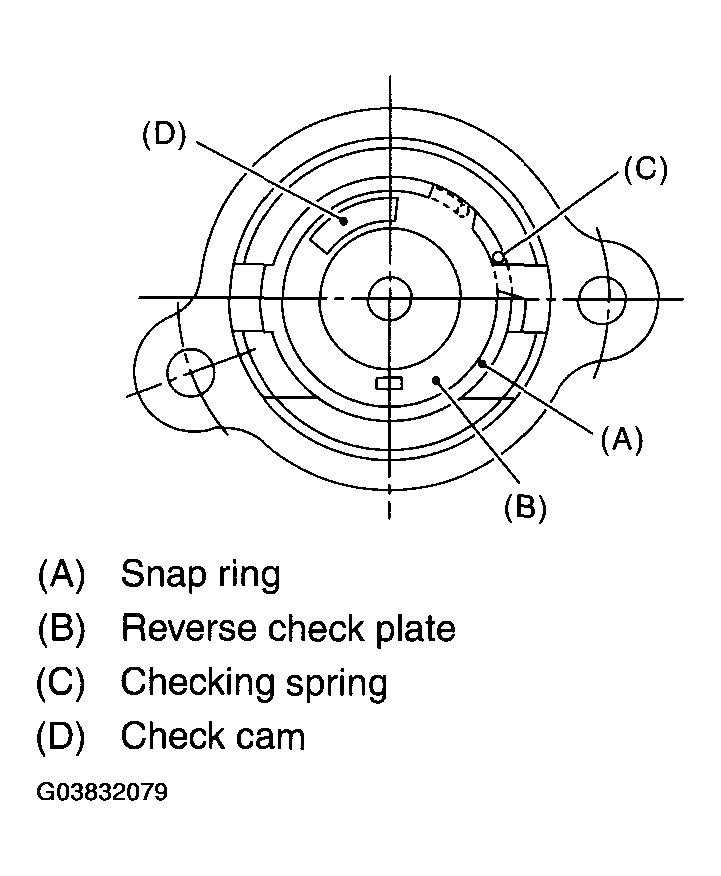

Fig 1: Checking Cam
Courtesy of SUBARU OF AMERICA, INC.
Select a suitable reverse accent shaft and reverse check plate. -< Ref. to , ADJUSTMENT , Reverse Check Sleeve. >
