Reverse Check Sleeve: Disassembly

WARNING: This page is about a different variant/trim than selected.

Cover the reverse check sleeve with a rag, and remove the snap ring using a screwdriver.
NOTE: Replace the snap ring with a new one if it is deformed or reactive force is weakened.

Fig 1: Removing Snap Ring Using Screwdriver
Courtesy of SUBARU OF AMERICA, INC.
Remove the reverse check plate, reverse check spring, reverse check cam, return spring (5th-Rev), reverse accent shaft, return spring cap and return spring (1st-2nd).

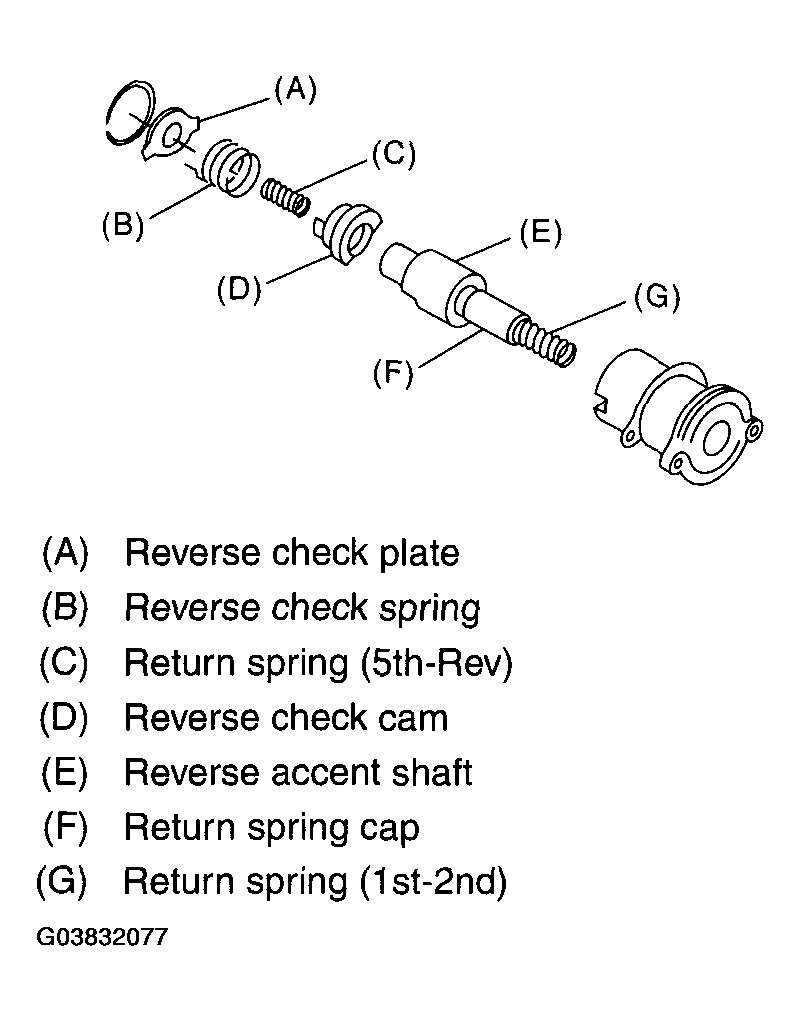

Fig 2: Removing Reverse Check Plate, Reverse Check Spring, Reverse Check Cam And Return Spring (5th-Rev)
Courtesy of SUBARU OF AMERICA, INC.
Remove the O-ring.

NOTE:

Be sure to use a new O-ring.
Be careful not to break adjusting shim placed between reverse check sleeve assembly and case.
