Reverse Check Sleeve: Assembly

WARNING: This page is about a different variant/trim than selected.

Install the return spring (1st-2nd), return spring cap, reverse accent shaft, check cam, return spring (5th-Rev.) and reverse check spring onto reverse check sleeve.
NOTE: Be sure to position the bent section of reverse check spring in the groove in check cam.

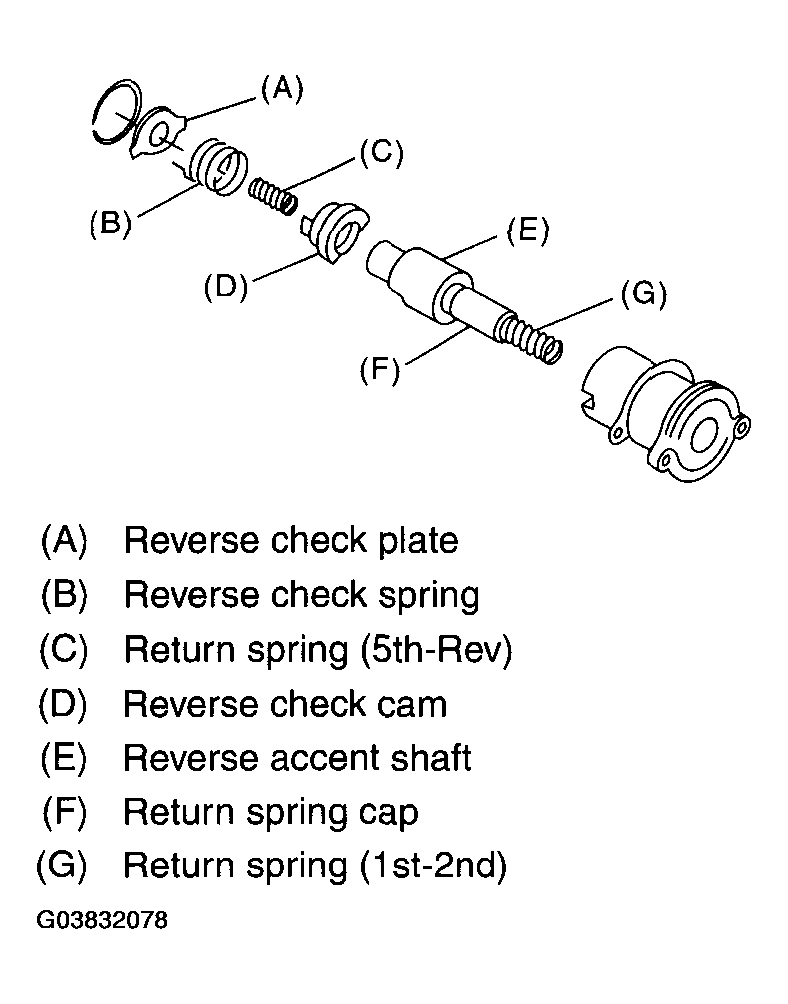

Fig 1: Install Return Spring (1st-2nd), Return Spring Cap, Reverse Accent Shaft And Check Cam
Courtesy of SUBARU OF AMERICA, INC.
Hook the bent section of reverse check spring over reverse check plate.
Rotate the cam so that the protrusion of reverse check cam is at the opening in plate.
With cam held in that position, install the reverse check plate onto reverse check sleeve and hold with snap ring.
Position the O-ring in the groove in sleeve.
