Section 26 (Manual Transmission And Differential (5MT))
>>
General Description
>>
Components With Torque Specifications
>>
Transmission Case
Transmission Case
WARNING:
This page is about a different variant/trim than selected.

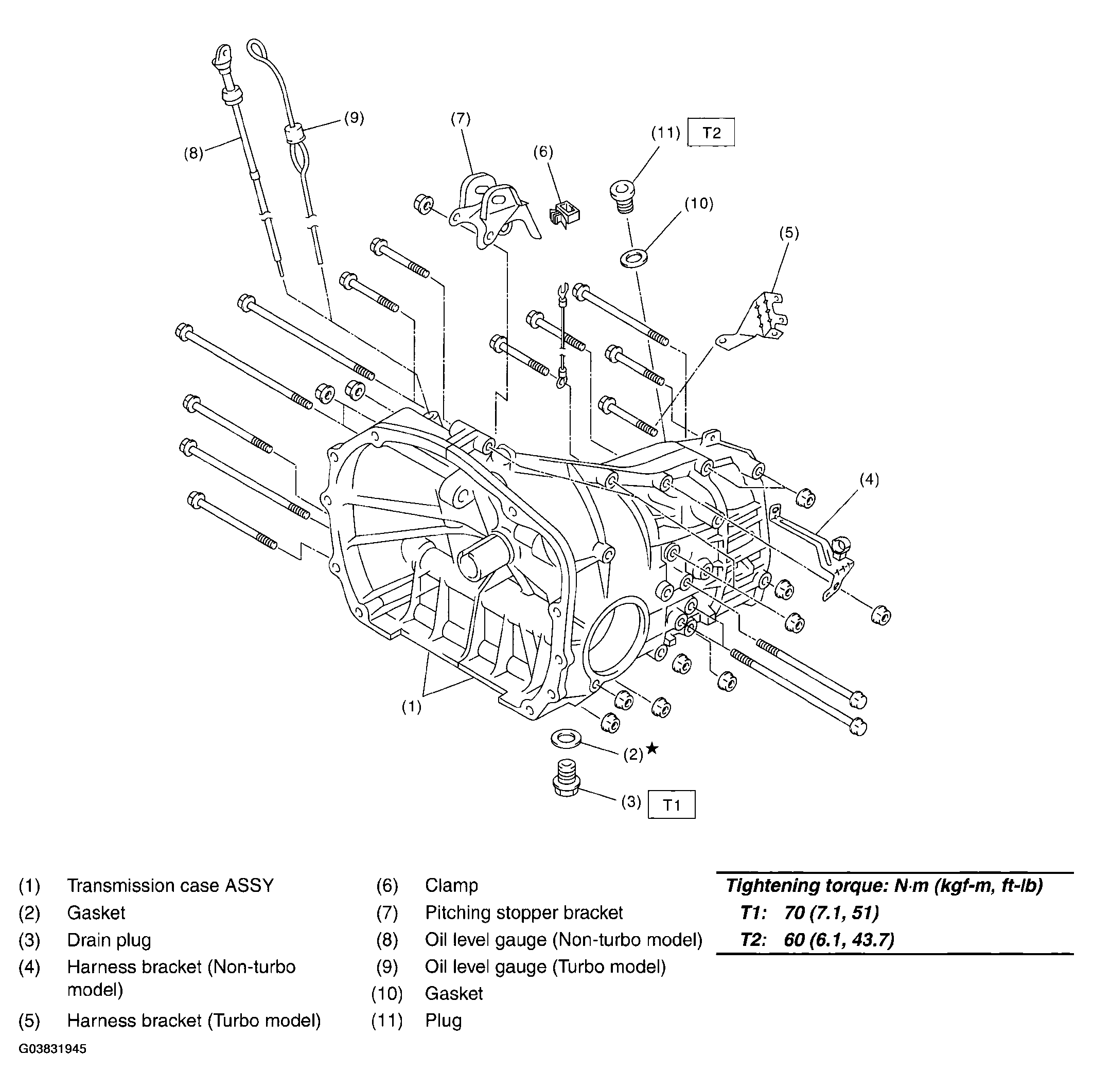

Fig 1: Transmission Case Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Transmission case tightening torque

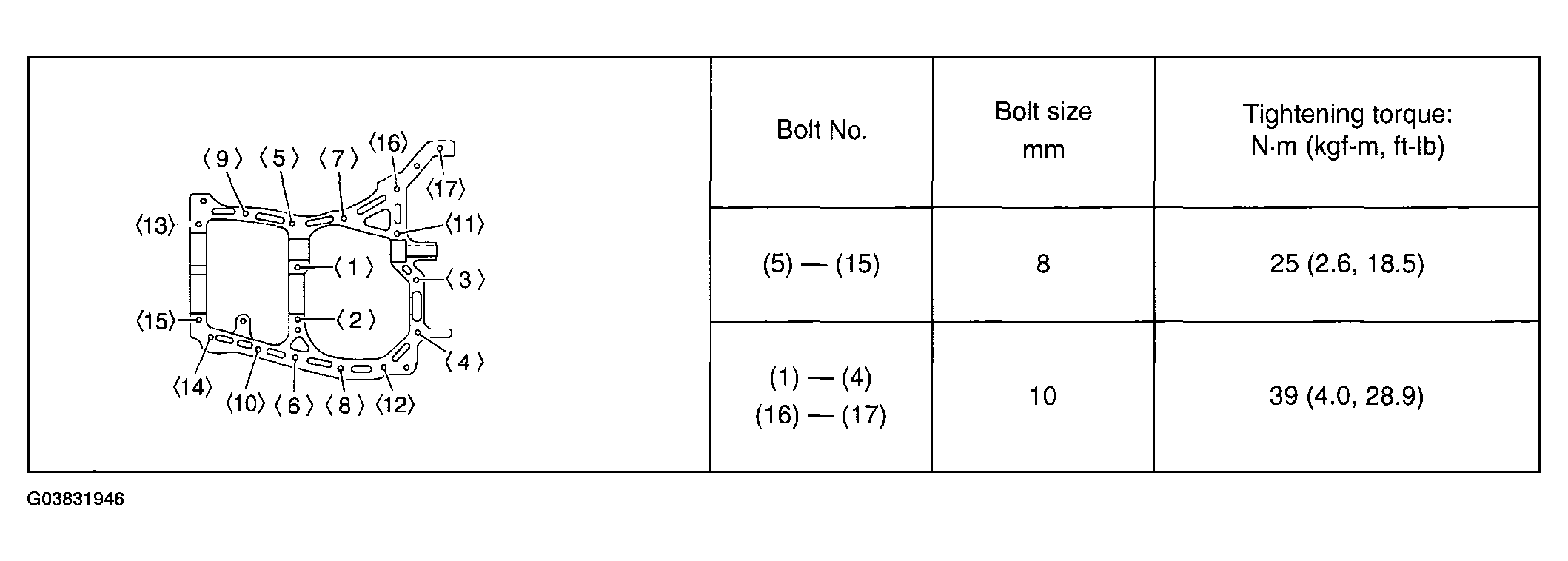

Fig 2: Transmission Case Tightening Torque Specification Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
