Shifter Fork And Shifter Rod

WARNING: This page is about a different variant/trim than selected.

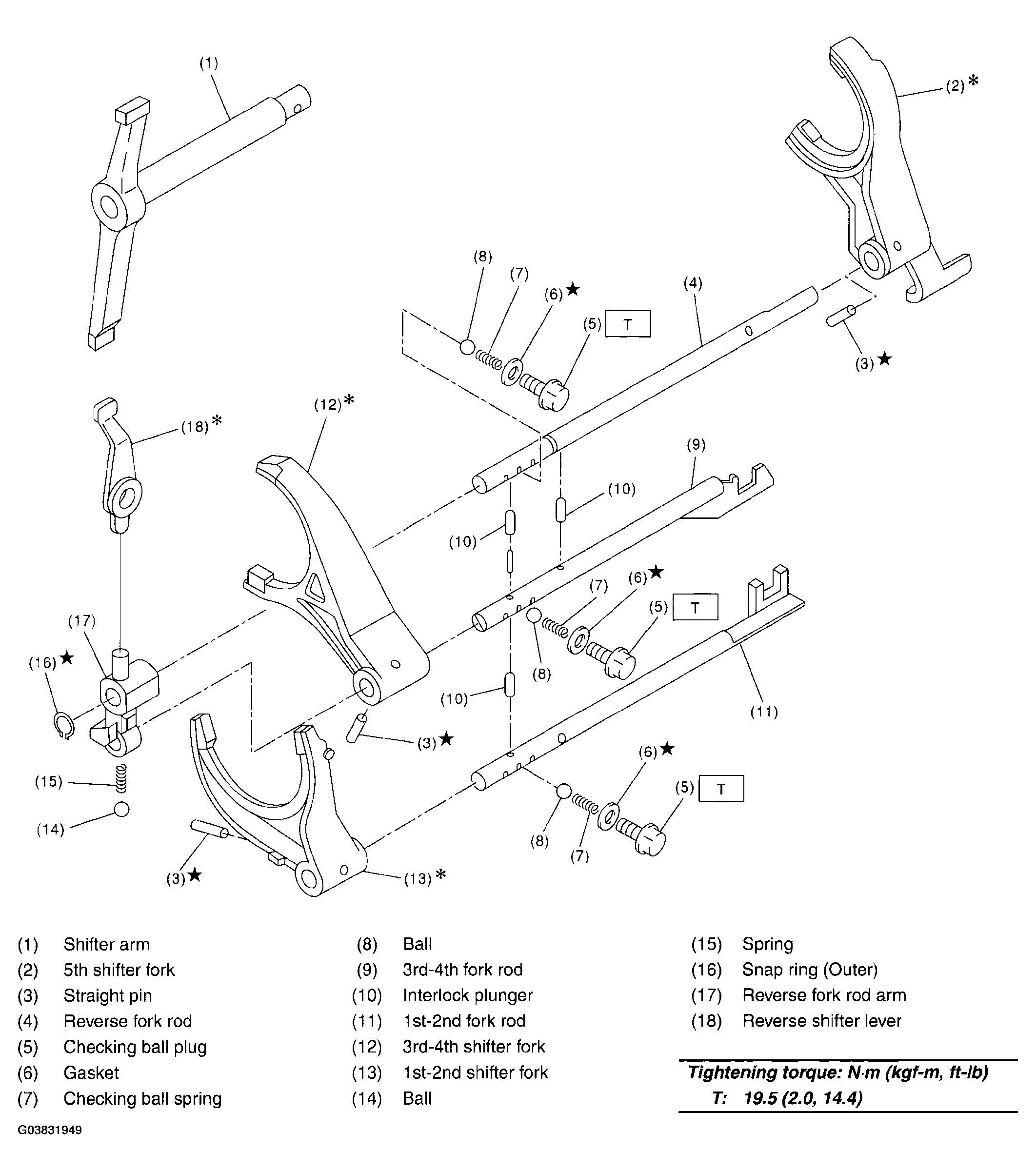

Fig 1: Shifter Fork And Shifter Rod Replacement Components With Torque Specifications
G03831949Courtesy of SUBARU OF AMERICA, INC.
