Drive Pinion Assembly

WARNING: This page is about a different variant/trim than selected.

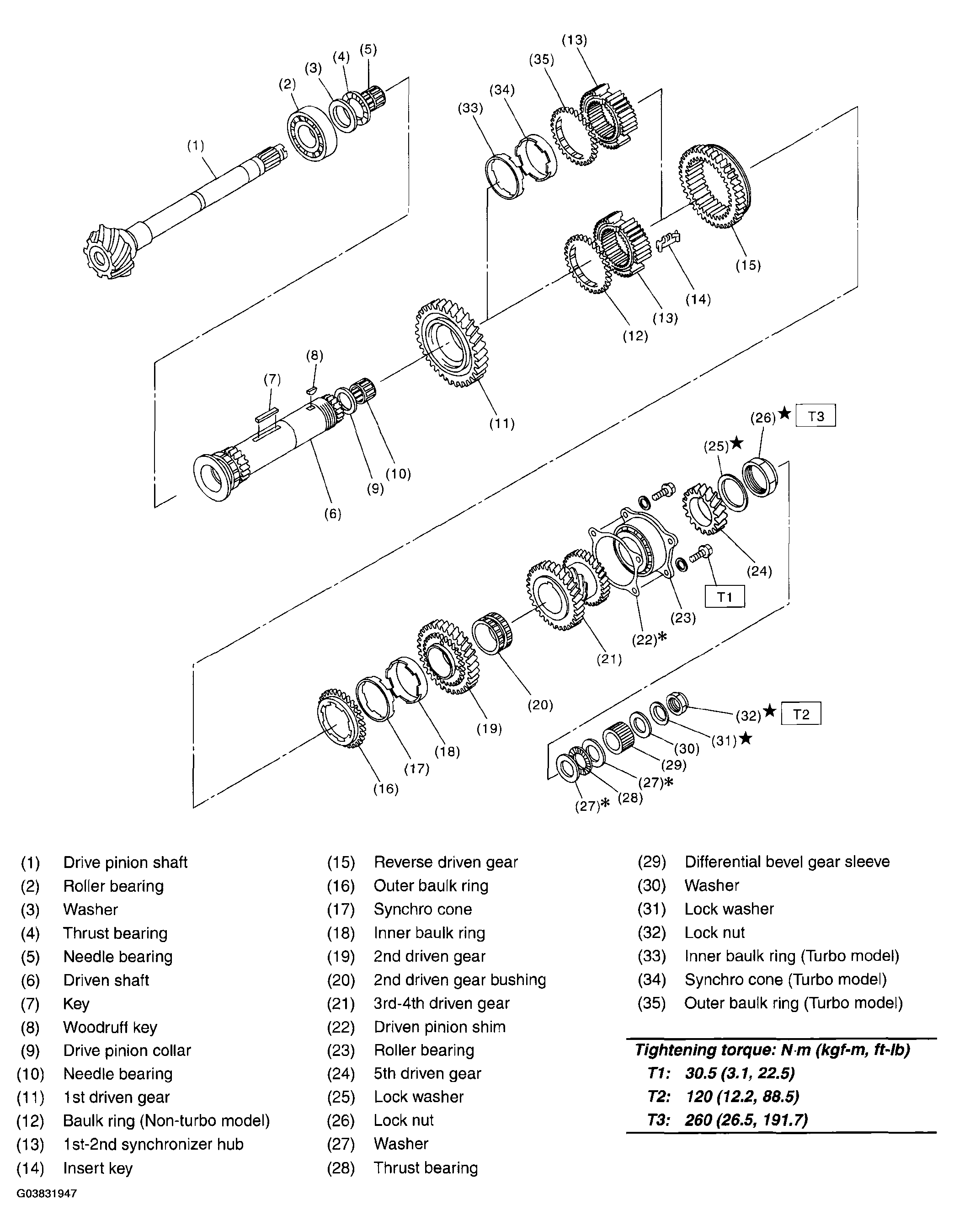

Fig 1: Drive Pinion Assembly Replacement Components With Torque Specifications
G03831947Courtesy of SUBARU OF AMERICA, INC.
