Front Differential Assembly: Inspection: Notes
WARNING: This page is about a different variant/trim than selected.

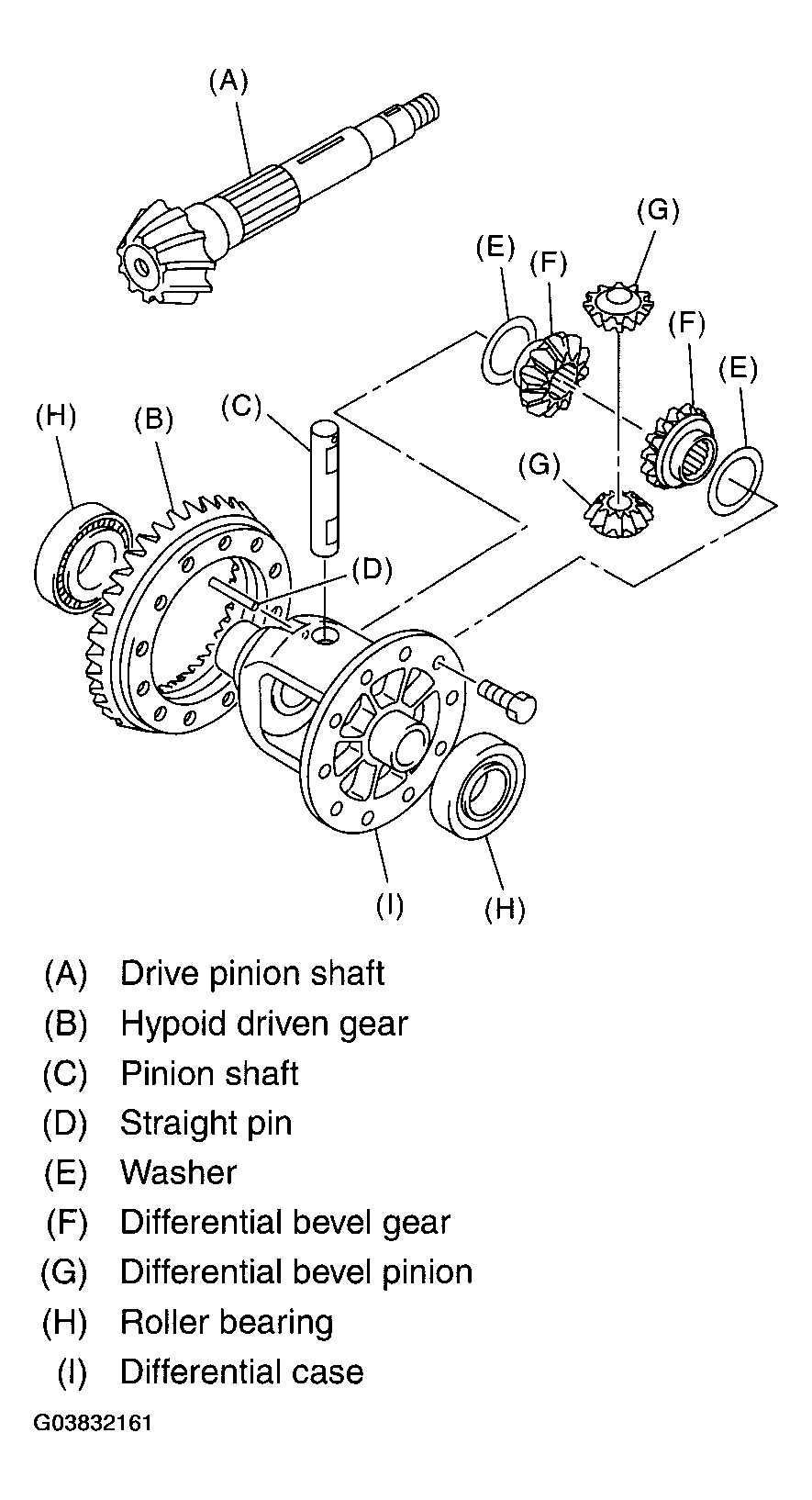

Repair or replace the differential gear in following cases:
- When the hypoid drive gear and drive pinion shaft tooth surface are damaged, excessively worn or seized.
- When the roller bearing on the drive pinion shaft is worn or damaged.
- When there is damage, wear or seizure of the differential bevel pinion, differential bevel gear, washer, pinion shaft and straight pin.
- When the differential case sliding surfaces is worn or damaged.
