Differential Case Assembly

WARNING: This page is about a different variant/trim than selected.

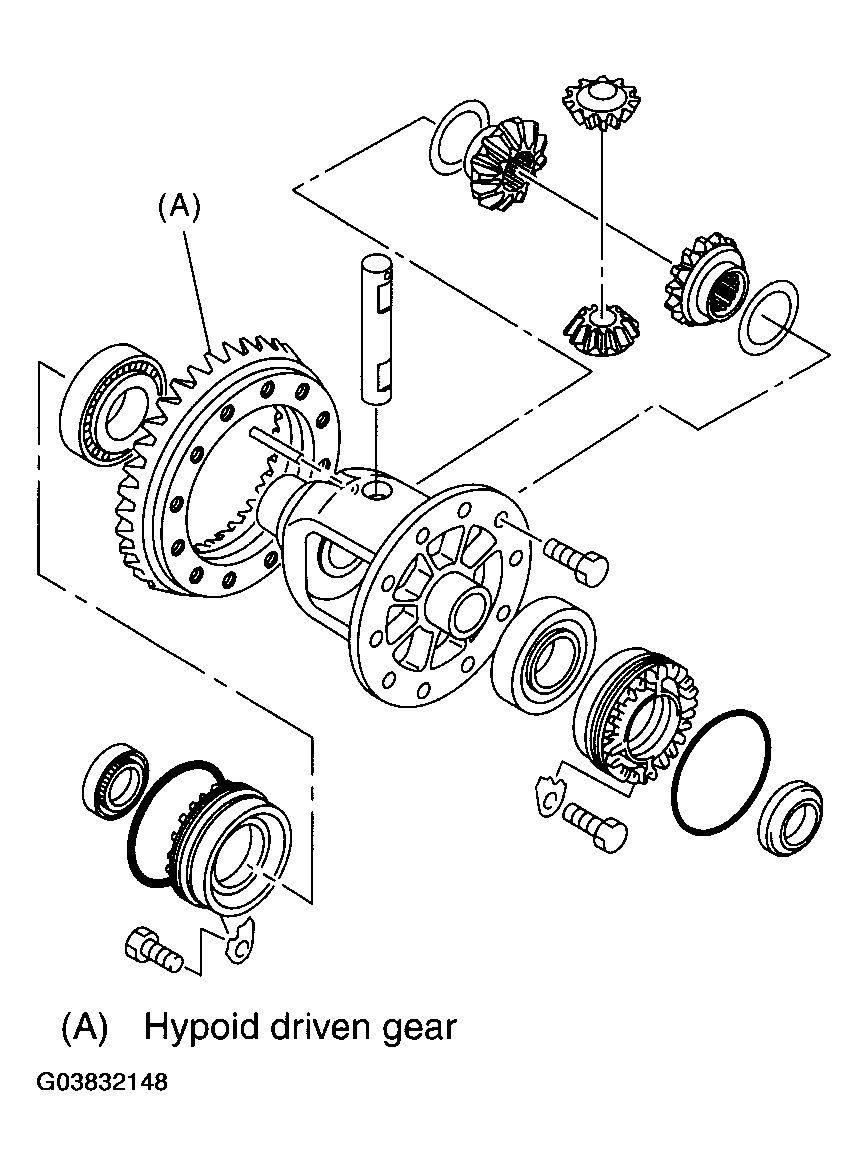

Loosen the twelve bolts and remove hypoid driven gear.

Fig 1: Removing Hypoid Driven Gear
Courtesy of SUBARU OF AMERICA, INC.
Drive out the straight pin from differential assembly toward hypoid driven gear side.
ST 899904100 REMOVER

Fig 2: Driving Out Straight Pin From Differential Assembly
Courtesy of SUBARU OF AMERICA, INC.

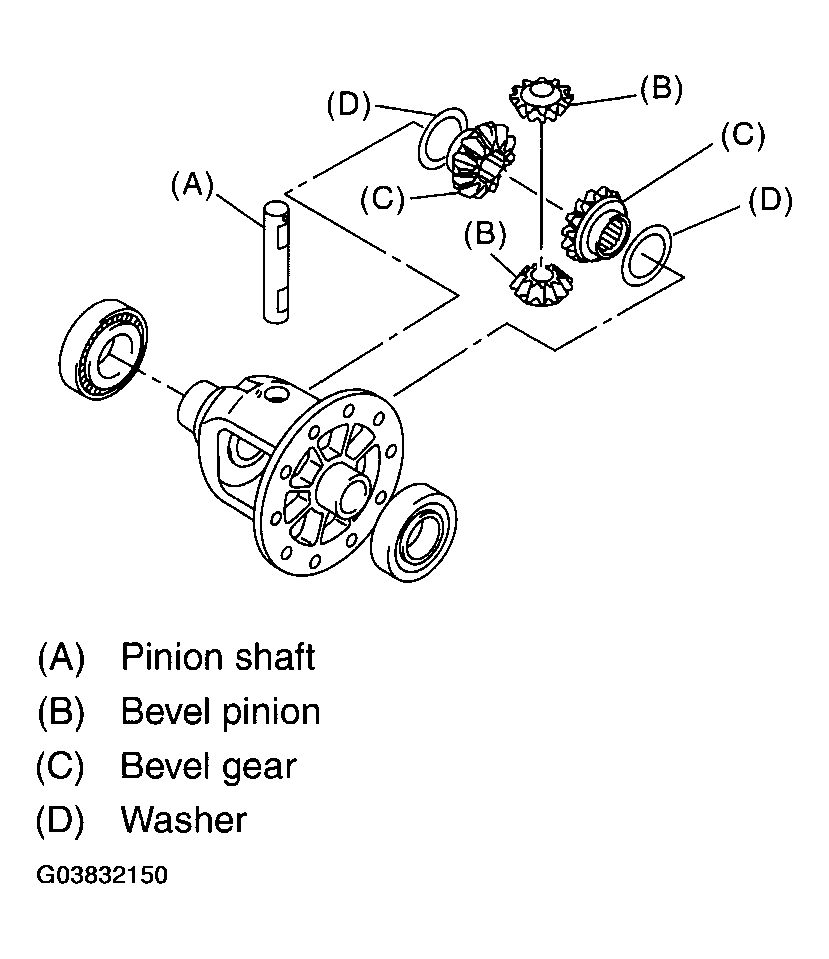

Pull out the pinion shaft, and remove the differential bevel pinion, bevel gear and washer.

Fig 3: Removing Differential Bevel Pinion, Bevel Gear And Washer
Courtesy of SUBARU OF AMERICA, INC.
Using the ST, remove the roller bearing.
ST 899524100 PULLER SET

Fig 4: Removing Roller Bearing

Courtesy of SUBARU OF AMERICA, INC.
