Differential Case Assembly

1. Install the bevel gear and bevel pinion together with washers, and insert the pinion shaft.
   NOTE: Face the chamfered side of washer toward gear.

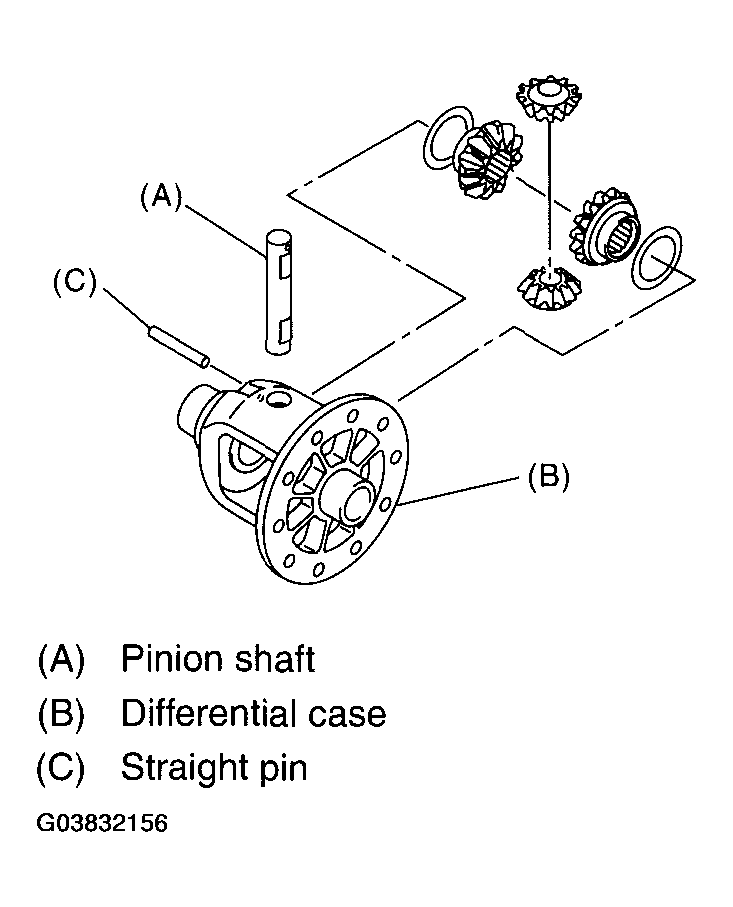

   Fig 1: Inserting Pinion Shaft

   Courtesy of SUBARU OF AMERICA, INC.
2. Measure the backlash between bevel gear and pinion. If it is not within specifications, install a suitable washer to adjust. < Ref. to , ADJUSTMENT , Front Differential Assembly. >
   NOTE: Be sure the pinion gear teeth contacts adjacent gear teeth during measurement.

   ST1 498247001 MAGNET BASE

   ST2 498247100 DIAL GAUGE

   Standard backlash

   0.13 - 0.18 mm (0.0051 - 0.0071 in)

   Fig 2: Measuring Backlash Between Bevel Gear And Pinion

   Courtesy of SUBARU OF AMERICA, INC.
3. Align the pinion shaft and differential case at their holes, and drive the straight pin into holes from the hypoid driven gear side, using ST.
   NOTE: Lock the straight pin after installing.

   ST 899904100 REMOVER

   Fig 3: Aligning Pinion Shaft And Differential Case At Their Holes

   Courtesy of SUBARU OF AMERICA, INC.
4. Install the roller bearing to differential case.
   NOTE:

   • Do not apply pressure in excess of 10 kN (1 ton, 1.1 US ton, 1.0 Imp ton).
   • Be careful because the roller bearing outer races are used as a set.

   ST1 499277100 BUSHING 1-2 INSTALLER

   ST2 398497701 ADAPTER

   Fig 4: Installing Roller Bearing To Differential Case

   Courtesy of SUBARU OF AMERICA, INC.
5. Install the hypoid driven gear to differential case using twelve bolts.

Tightening torque:

T: 62 N.m (6.3 kgf-m, 45.6 ft-lb)

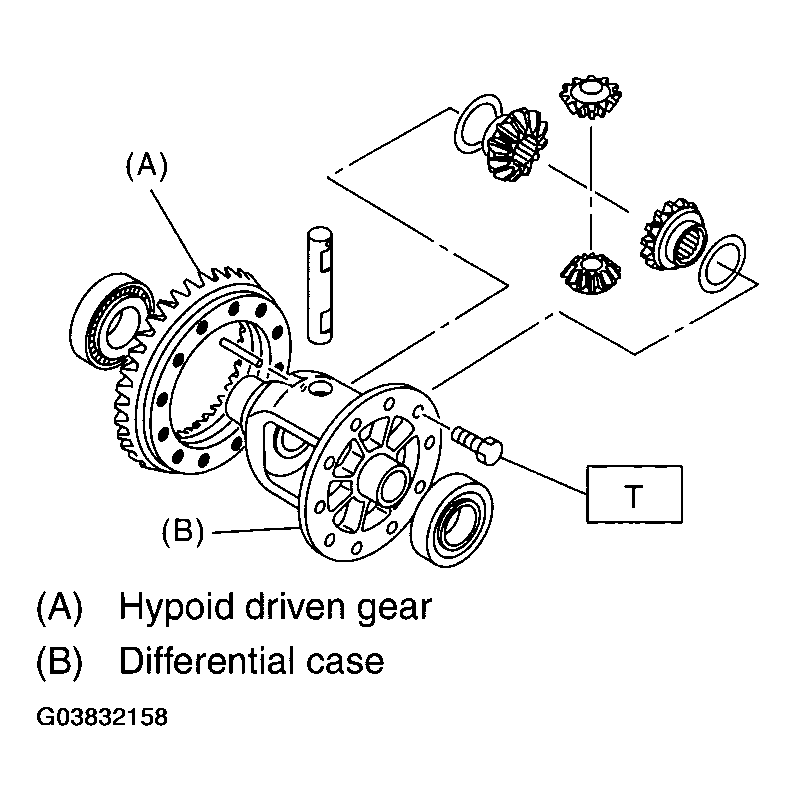

Fig 5: Installing Hypoid Driven Gear To Differential Case

Courtesy of SUBARU OF AMERICA, INC.
