HYPOID Gear Backlash

WARNING: This page is about a different variant/trim than selected.

Adjust the backlash by turning holder in the right side case.

ST 499787000 WRENCH ASSY

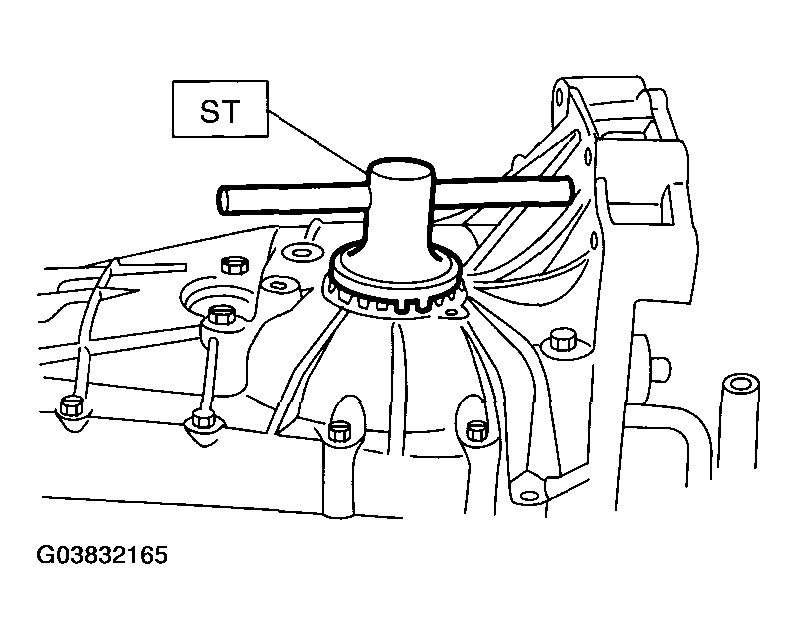

Fig 1: Adjusting Backlash By Turning Holder In Right Side Case

Courtesy of SUBARU OF AMERICA, INC.

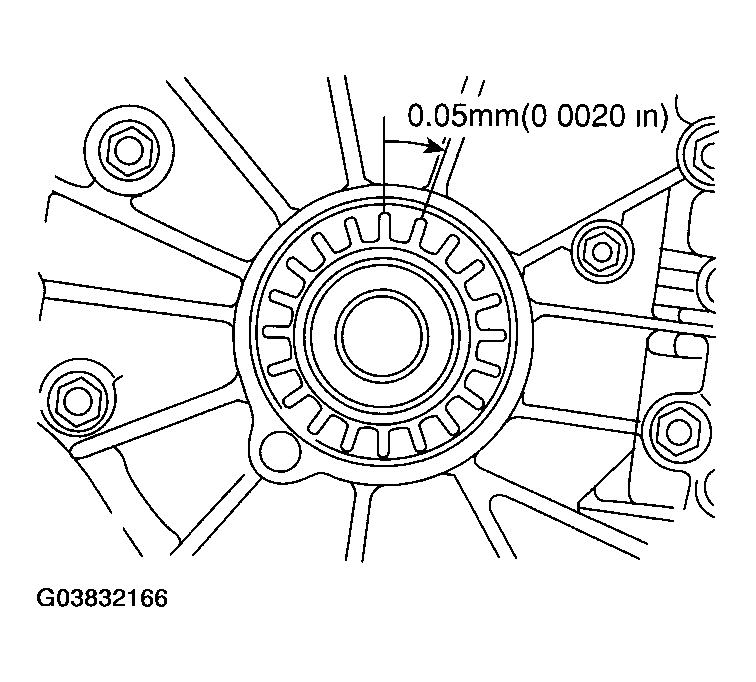

NOTE: Each time the side retainer rotates one notch, backlash changes by 0.05 mm (0.020 in).

Fig 2: Checking Backlash

Courtesy of SUBARU OF AMERICA, INC.
