Drive Pinion Shaft Assembly: Disassembly

WARNING: This page is about a different variant/trim than selected.
NOTE: Attach a cloth to the end of driven shaft (on the frictional side of thrust needle bearing) to prevent damage during disassembly or reassembly.
  1. Unlock the caulking of lock nut. Remove the lock nut using ST1, ST2 and ST3.

    ST1 899884100 HOLDER

    ST2 498427100 STOPPER

    ST3 899988608 SOCKET WRENCH (27)

    Fig 1: Removing Lock Nut Using ST1, ST2 And ST3
    G03832113Courtesy of SUBARU OF AMERICA, INC.
  2. Draw out the drive pinion from driven shaft.

    Remove the differential bevel gear sleeve, adjusting washer No. 1, adjusting washer No. 2, thrust bearing, needle bearing and drive pinion collar.

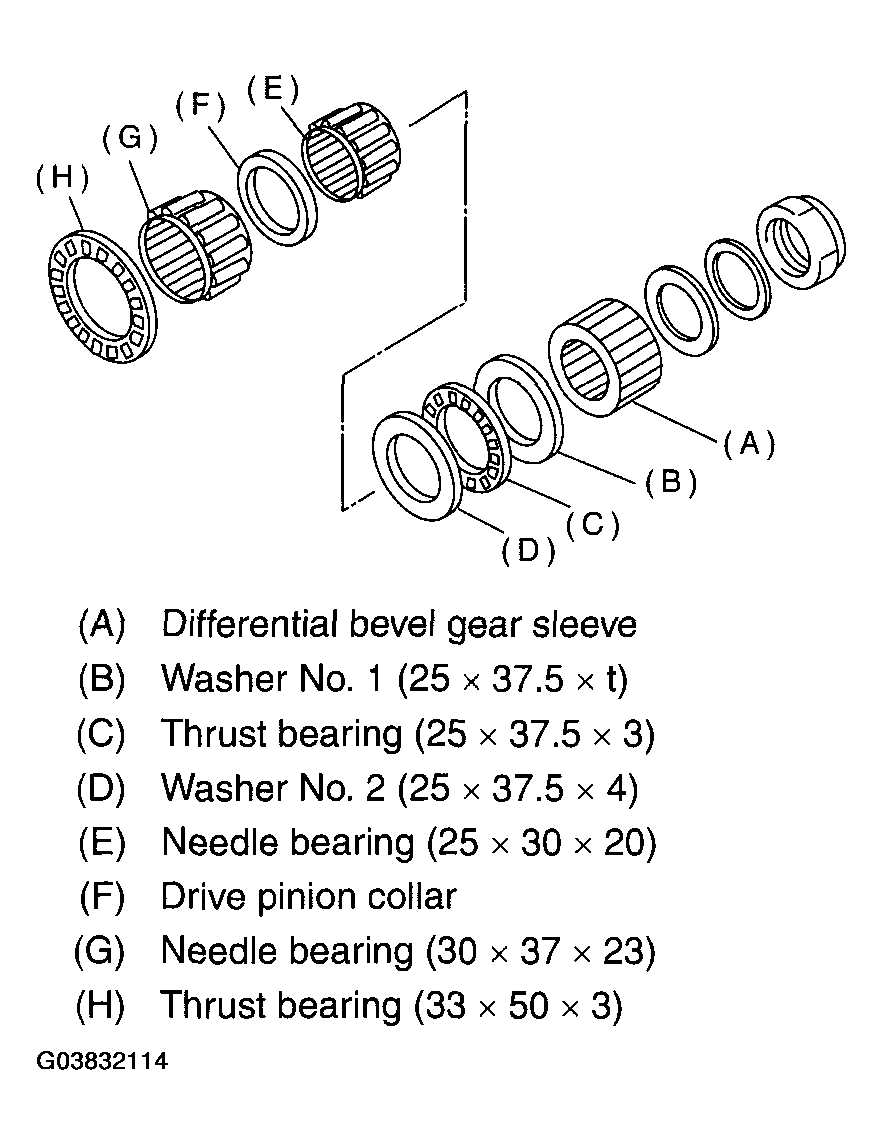

    Fig 2: Identifying Differential Bevel Gear Sleeve, Adjusting Washer No. 1, Adjusting Washer No. 2, Thrust Bearing, Needle Bearing And Drive Pinion Collar
    G03832114Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the roller bearing and washer using ST and press.
    NOTE: Do not reuse the roller bearing.

    ST 498077000 REMOVER

    Fig 3: Removing Roller Bearing And Washer Using ST And Press
    G03832115Courtesy of SUBARU OF AMERICA, INC.
  4. Unlock the caulking of lock nut. Remove the lock nut using ST1 and ST2.

    ST1 499987300 SOCKET WRENCH (50)

    ST2 899884100 HOLDER

    Fig 4: Removing Lock Nut Using ST1 And ST2
    G03832116Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the 5th driven gear using ST.

    ST 499857000 5TH DRIVEN GEAR REMOVER

    Fig 5: Removing 5th Driven Gear Using ST
    G03832117Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the woodruff key.
  7. Remove the roller bearing and 3rd-4th driven gear using ST1 and ST2.

    ST1 499757002 INSTALLER

    ST2 899714110 REMOVER

    Fig 6: Removing Roller Bearing And 3rd-4th Driven Gear Using ST1 And ST2
    G03832118Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the key.
  9. Remove the 2nd driven gear, inner baulk ring, synchro cone and outer baulk ring.

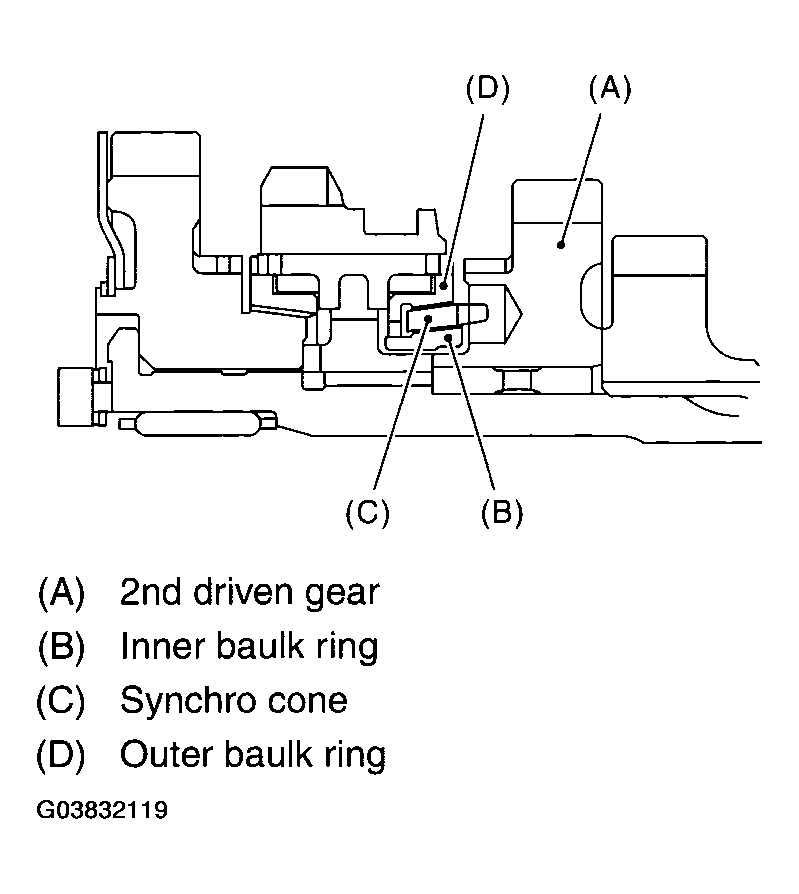

    Fig 7: Removing 2nd Driven Gear, Inner Baulk Ring, Synchro Cone And Outer Baulk Ring
    G03832119Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the 1st driven gear, 2nd gear bushing, gear and hub using ST1 and ST2. (Non-turbo model).
    Fig 8: Removing 1st Driven Gear, 2nd Gear Bushing, Gear And Hub Using ST1 And ST2 (Non-Turbo Model)
    G03832120Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the 1st driven gear, inner baulk ring, synchro cone, outer baulk ring, 2nd gear bushing, gear and hub using ST1 and ST2. (Turbo model)

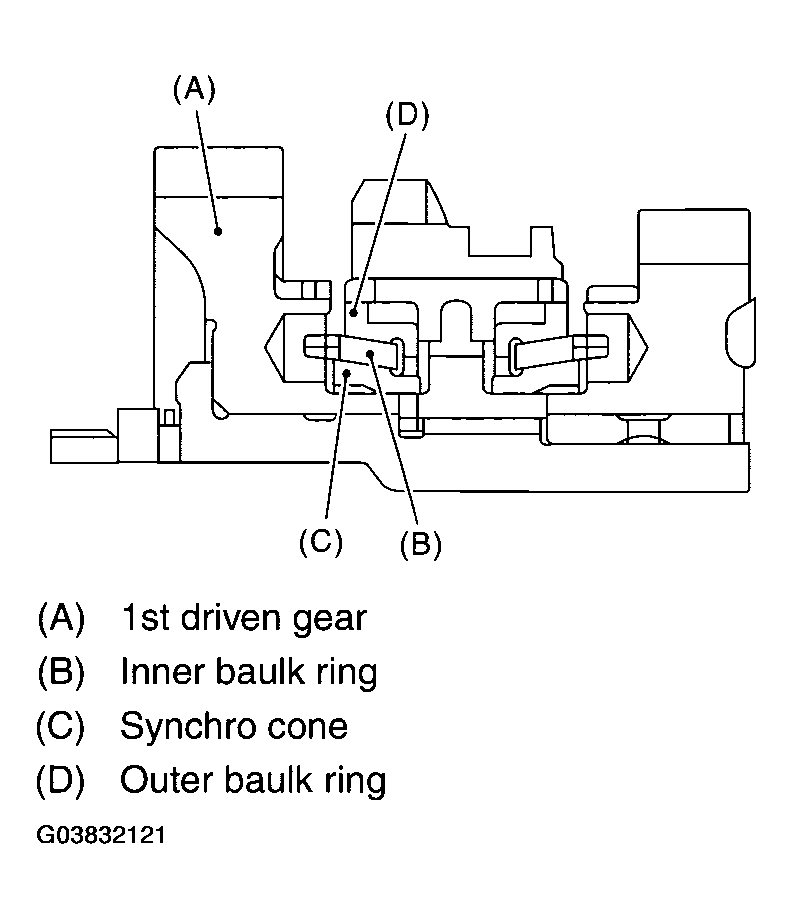

Fig 9: Identifying 1st Driven Gear, Inner Baulk Ring, Synchro Cone, Outer Baulk Ring, 2nd Gear Bushing
G03832121Courtesy of SUBARU OF AMERICA, INC.
NOTE: Replace the gear and hub if necessary. Do not disassemble because they must engage at a specified point. If they have to be disassembled, mark the engaging point on the spline beforehand.

ST1 499757002 INSTALLER

ST2 899714110 REMOVER

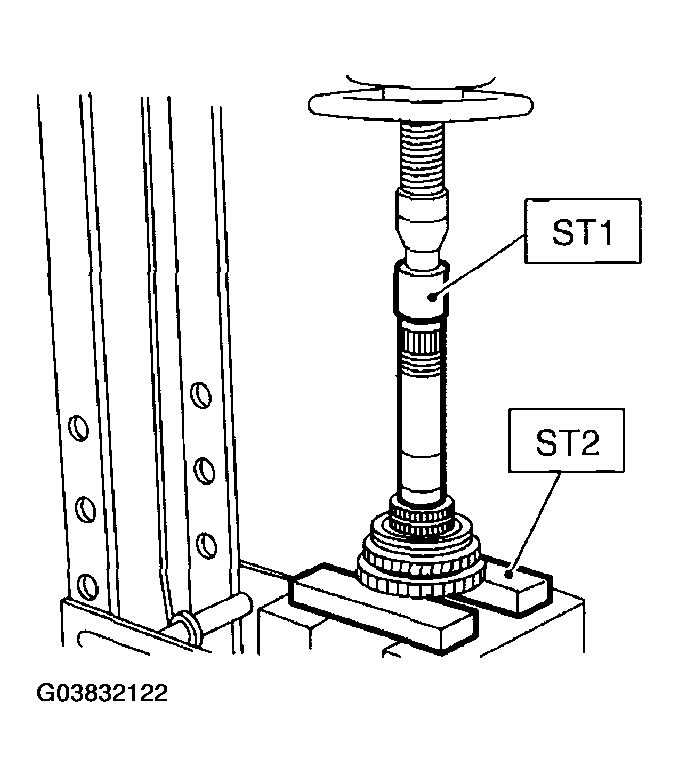

Fig 10: Identifying ST1 499757002 Installer And ST2 899714110 Remover
G03832122Courtesy of SUBARU OF AMERICA, INC.
