Read Diagnostic Trouble Code (DTC)

WARNING: This page is about a different variant/trim than selected.

Prepare the Subaru Select Monitor kit.

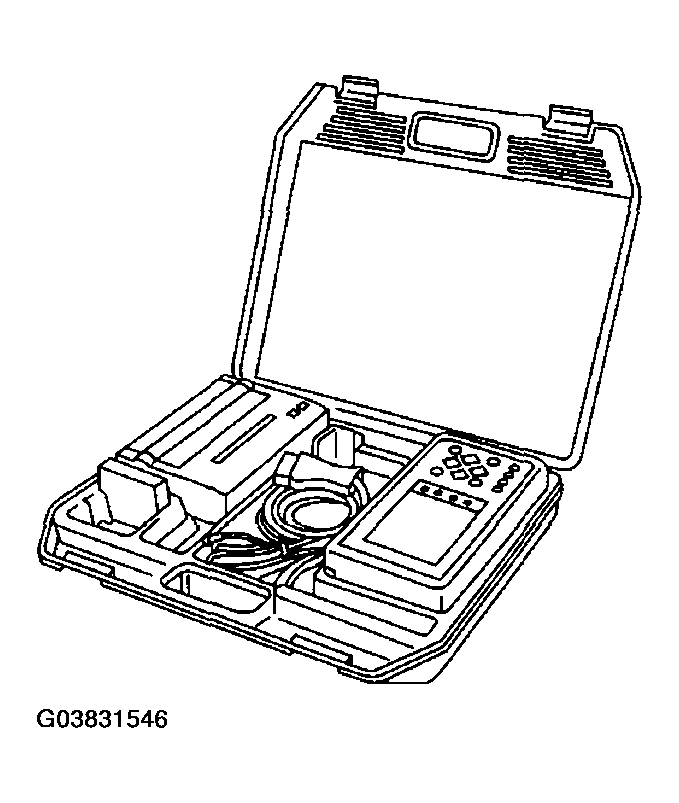

Fig 1: Identifying Subaru Select Monitor Kit
Courtesy of SUBARU OF AMERICA, INC.
Connect the diagnosis cable to Subaru Select Monitor.
Insert the cartridge to Subaru Select Monitor. < Ref. to, PREPARATION TOOL , General Description. >

Fig 2: Inserting Cartridge To Subaru Select Monitor
Courtesy of SUBARU OF AMERICA, INC.
Connect the Subaru Select Monitor to data link connector.
1. Data link connector is located in the lower portion of instrument panel (on the driver's side).

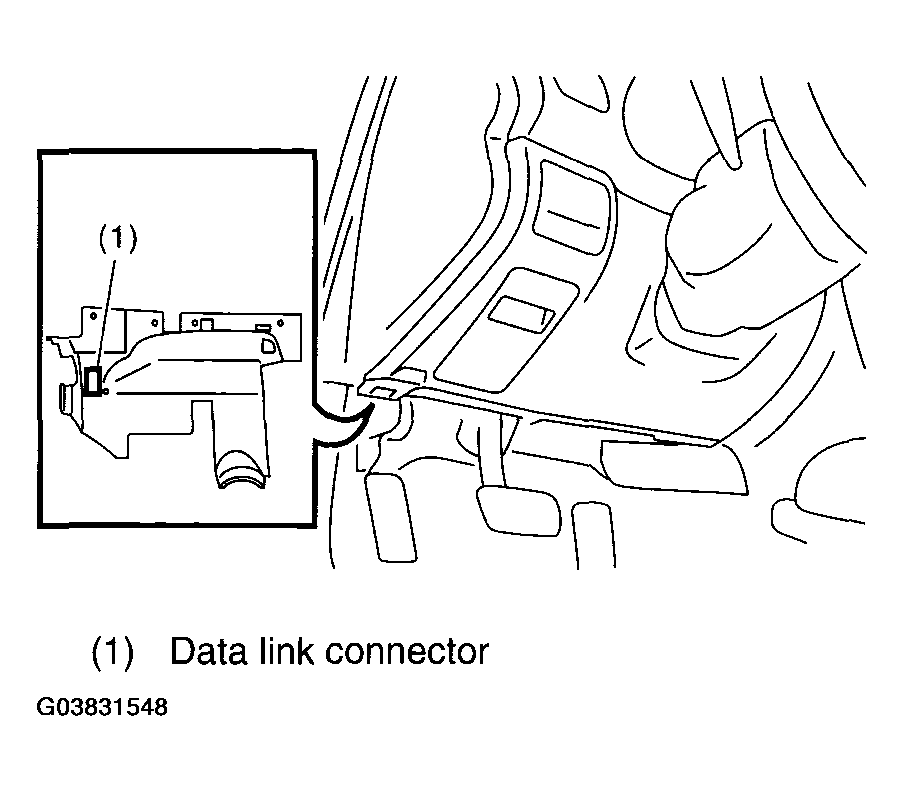

  Fig 3: Identifying Data Link Connector Location (On Driver's Side)
  Courtesy of SUBARU OF AMERICA, INC.
2. Connect the diagnosis cable to data link connector.
NOTE: Do not connect scan tools except for Subaru Select Monitor and OBD-II general scan tool.
Turn the ignition switch to ON (engine OFF) and Subaru Select Monitor switch to ON.

Fig 4: Identifying Power Switch
Courtesy of SUBARU OF AMERICA, INC.
On the << Main Menu>> display screen, select the {Each System Check} and press the [YES] key.
On the << System Selection Menu>> display screen, select the {Transmission} and press the [YES] key.
Press the [YES] key after the information of transmission type is displayed.
On the << Transmission Diagnosis>> display screen, select the {Diagnosis Code(s) Display} and press [YES] key.

NOTE:

For details concerning operation procedure, refer to the " SUBARU SELECT MONITOR OPERATION MANUAL ".
For details concerning DTC, refer to the List of Diagnostic Trouble Code (DTC). < Ref. to , LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . >
