SPORT Indicator Light Display: Inspection
WARNING: This page is about a different variant/trim than selected.
DIAGNOSIS:
SPORT indicator light circuit is open or shorted.
TROUBLE SYMPTOM:
When the ignition switch is turned to ON (engine OFF), SPORT indicator light does not illuminate.

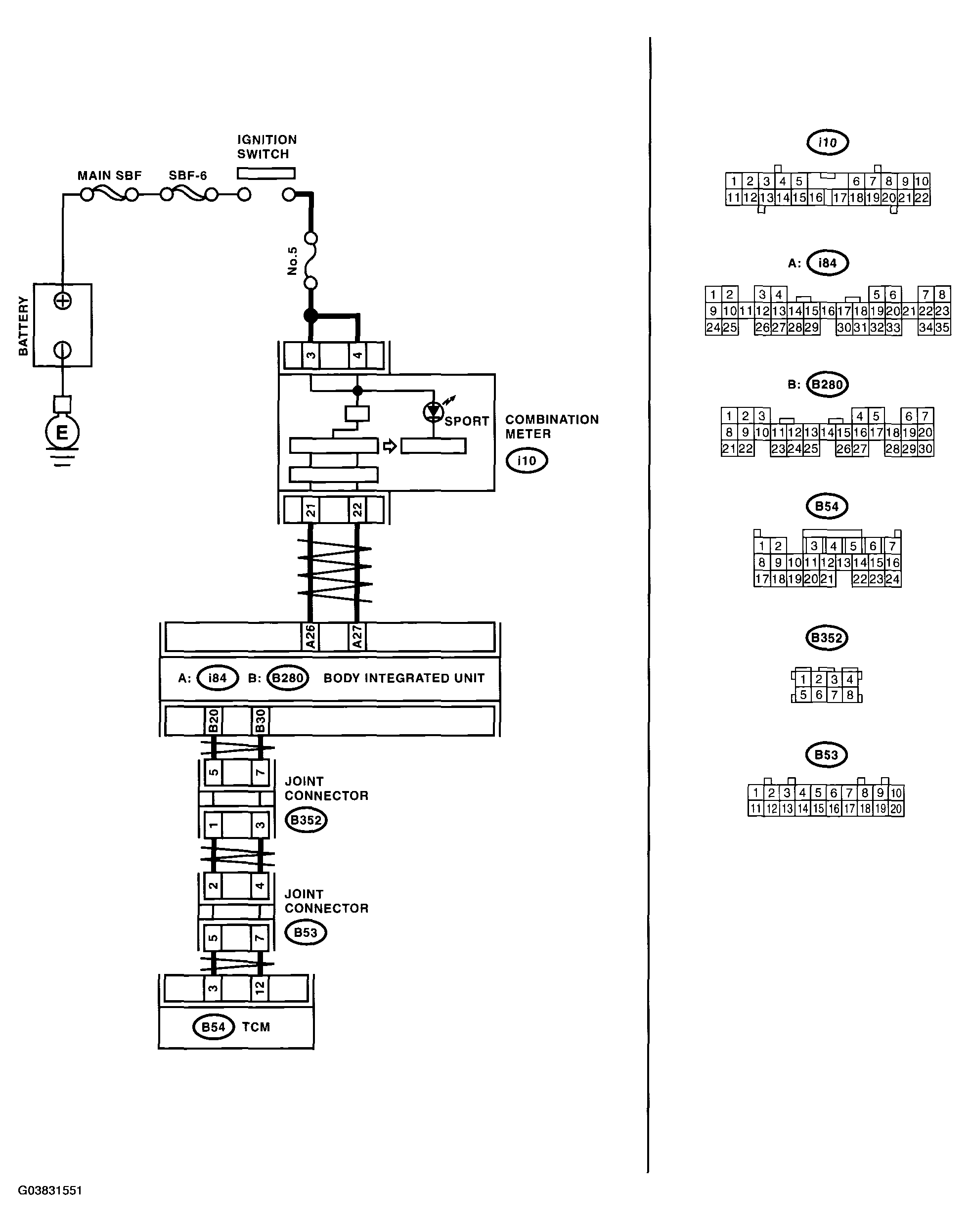

WIRING DIAGRAM:
SPORT INDICATOR LIGHT DIAGNOSTIC PROCEDURE
| Step | Check | Yes | No |
|---|---|---|---|
| 1. CHECK SPORT INDICATOR LIGHT. Turn the ignition switch to ON. |
Does the SPORT indicator light illuminate? | Go to step 2 . | Perform the self-diagnosis of combination meter. |
| 2. CHECK SPORT INDICATOR LIGHT. After the ignition switch is "ON", wait for at least 2 seconds. |
Does the SPORT indicator light illuminate? | Go to step 3 . | Go to step 4 . |
| 3. CHECK SPORT INDICATOR LIGHT. Start the engine. |
Does the SPORT indicator light go off? | Normal. Return to Basic Diagnostic Procedure. < Ref. to , BASIC DIAGNOSTIC PROCEDURE . > | Go to step 7 . |
| 4. CHECK SUBARU SELECT MONITOR COMMUNICATION. Connect the Subaru Select Monitor to data link connector. |
Is the communication between Subaru Select Monitor and TCM normal? | Go to step 5 . | Check the power supply ground circuit of TCM and Subaru Select Monitor communication. < Ref. to , DIAGNOSTIC PROCEDURE FOR SELECT MONITOR COMMUNICATION . > |
| 5. CHECK TCM. Display the current data of TCM using Subaru Select Monitor. |
Is the "Diagnosis light" output signal "ON"? | Go to step 6 . | Replace the TCM. < Ref. to TRANSMISSION CONTROL MODULE (TCM) . > |
| 6. CHECK BODY INTEGRATED UNIT. Display the current data of body integrated unit using Subaru Select Monitor. < Ref. to OPERATION , Subaru Select Monitor. > |
Is the "SPORT indicator light" input signal "Illuminate"? | Replace the combination meter assembly. < Ref. to COMBINATION METER . > | Check DTC of body integrated unit. < Ref. to , OPERATION , Subaru Select Monitor. > |
| 7 CHECK TCM. Display the current data of TCM using Subaru Select Monitor. < Ref. to , OPERATION , Subaru Select Monitor. > |
Is the "Diagnosis light" output signal "ON"? | Replace the TCM. < Ref. to TRANSMISSION CONTROL MODULE (TCM) . > | Go to step 8 . |
| 8. CHECK BODY INTEGRATED UNIT. Display the current data of body integrated unit using Subaru Select Monitor. < Ref. to , OPERATION , Subaru Select Monitor. > |
Is the "SPORT indicator light" input signal "Illuminate"? | Check DTC of body integrated unit. Perform the diagnosis according to DTC. < Ref. to , OPERATION , Subaru Select Monitor. > | Perform the self-diagnosis for combination meter. < Ref. to INSPECTION , Combination Meter System. > |
