Transmission Ground

Make sure that the ground terminal bolt is tightened securely.

• Chassis side

Tightening torque:

13 N.m (1.3 kgf-m, 9.4 ft-lb)

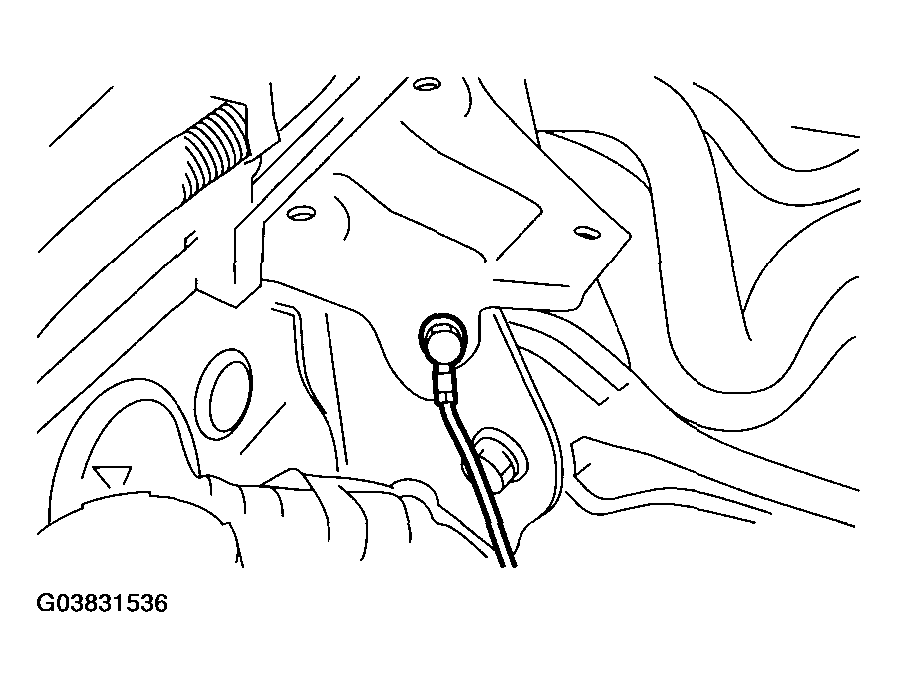

Fig 1: Identifying Ground Terminal

Courtesy of SUBARU OF AMERICA, INC.
