ATF Level

WARNING: This page is about a different variant/trim than selected.

Make sure that ATF level is within the specification. < Ref. to INSPECTION , Automatic Transmission Fluid. >

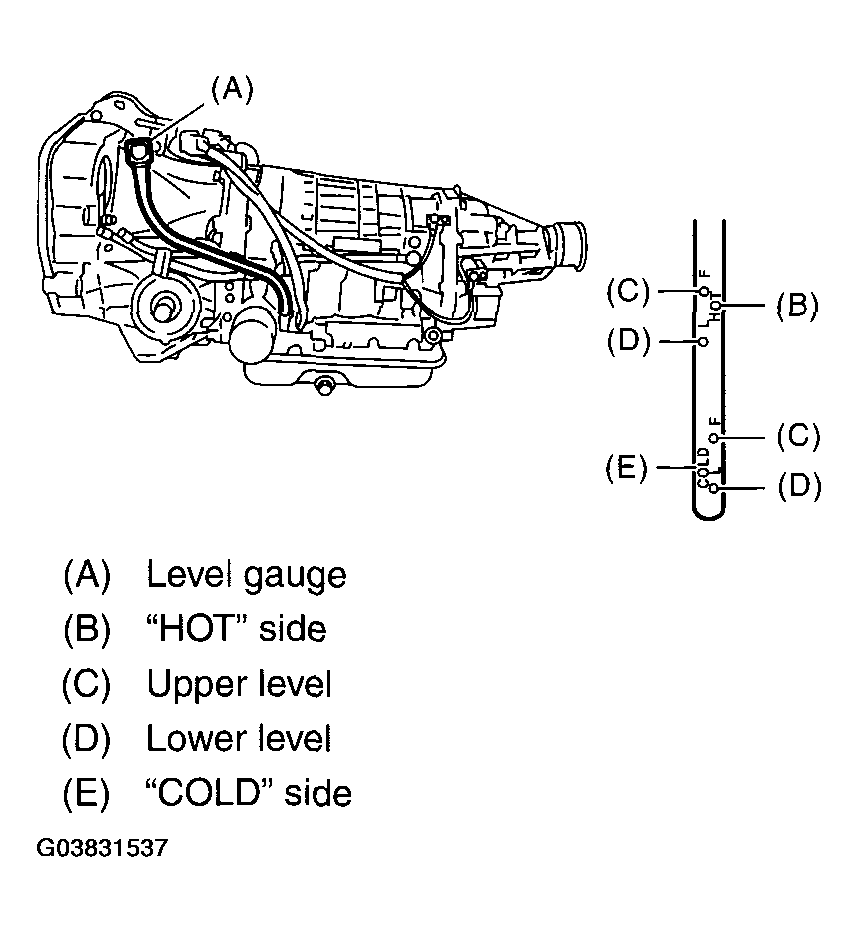

Fig 1: Identifying Automatic Transmission Fluid Level
G03831537Courtesy of SUBARU OF AMERICA, INC.
