DTC P0715 Input/Turbine Speed Sensor Circuit

WARNING: This page is about a different variant/trim than selected.

DTC DETECTING CONDITION:

Input signal circuit of TCM is open or shorted.

TROUBLE SYMPTOM:

Excessive shift shock

WIRING DIAGRAM:

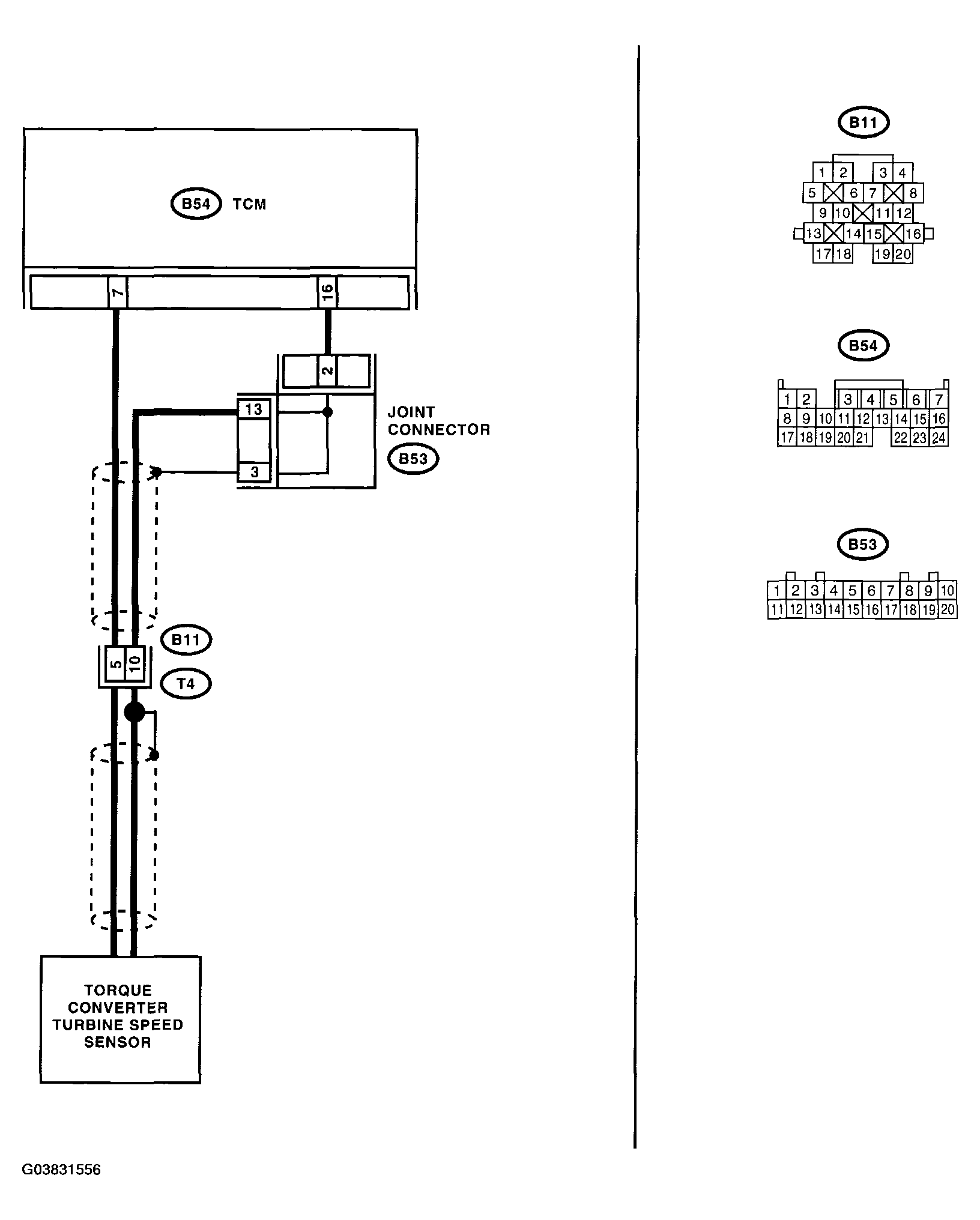

Fig 1: Wiring Diagram - Input/Turbine Speed Sensor Circuit
G03831556Courtesy of SUBARU OF AMERICA, INC.
DTC P0715 DIAGNOSTIC PROCEDURE

Step Check Yes No
1
CHECK TORQUE CONVERTER TURBINE SPEED SENSOR.
  1. Turn the ignition switch to OFF.
  2. Disconnect the connector from transmission.
  3. Measure the resistance between transmission connector receptacle's terminals.

    Connector & terminal

    (T4) No. 5 - No. 10:

 Is the resistance 450 - 650 Ω? Go to step 2  . Replace the torque converter turbine speed sensor. < Ref. to TORQUE CONVERTER TURBINE SPEED SENSOR . >
2
CHECK HARNESS CONNECTOR BETWEEN TCM AND TRANSMISSION.
  1. Disconnect the connector from TCM.
  2. Measure the resistance of harness between TCM and transmission connector.

    Connector & terminal

    (B54) No. 7 - (B11) No. 5:

 Is the resistance less than 1 Ω? Go to step 3  . Repair the open circuit in harness between TCM and transmission connector.
3
CHECK HARNESS CONNECTOR BETWEEN TCM AND TRANSMISSION.
Measure the resistance of harness between TCM and transmission connector.
Connector & terminal
(B54) No. 16 - (B11) No. 10: 		 Is the resistance less than 1 Ω? Go to step 4  . Repair the open circuit in harness between TCM and transmission connector, and poor contact in connector.
4
CHECK HARNESS CONNECTOR BETWEEN TCM AND TRANSMISSION.
Measure the resistance of harness between TCM connector and chassis ground.
Connector & terminal
(B54) No. 16 - Chassis ground: 		 Is the resistance more than 1 MΩ? Go to step 5  . Repair the short circuit in harness between TCM and transmission connector.
5
CHECK HARNESS CONNECTOR BETWEEN TCM AND TRANSMISSION.
Measure the resistance of harness between TCM connector and chassis ground.
Connector & terminal
(B54) No. 7 - Chassis ground: 		 Is the resistance more than 1 MΩ? Go to step 6  . Repair the short circuit in harness between TCM and transmission connector, and poor contact in connector.
6
CHECK INPUT SIGNAL FOR TCM USING SUBARU SELECT MONITOR.
  1. Connect the connectors to TCM and transmission.
  2. Connect the Subaru Select Monitor to data link connector.
  3. Turn the ignition switch to ON, and the Subaru Select Monitor switch to ON.
  4. Start the engine.
  5. Shift the select lever to "P" or "N" range.
  6. Read the data of "Turbine Revolution Speed" using Subaru Select Monitor.
  • Compare the tachometer with Subaru Select Monitor indications.
 Is the revolution value same as the tachometer reading shown on the combination meter? Even if the SPORT indicator light is blinking, the circuit has returned to normal condition at this time. A temporary poor contact of connector or harness may be the cause. Repair the harness or connector in TCM and transmission. Go to step 7  .
7
CHECK POOR CONTACT. 		 Is there poor contact in torque converter turbine speed sensor circuit? Repair the poor contact. Replace the TCM. < Ref. to TRANSMISSION CONTROL MODULE (TCM) . >
