DTC P0713 Transmission Fluid Temperature Sensor Circuit High Input
WARNING: This page is about a different variant/trim than selected.
DTC DETECTING CONDITION:
Input signal circuit of TCM to ATF temperature sensor is shorted.
TROUBLE SYMPTOM:
Excessive shift shock

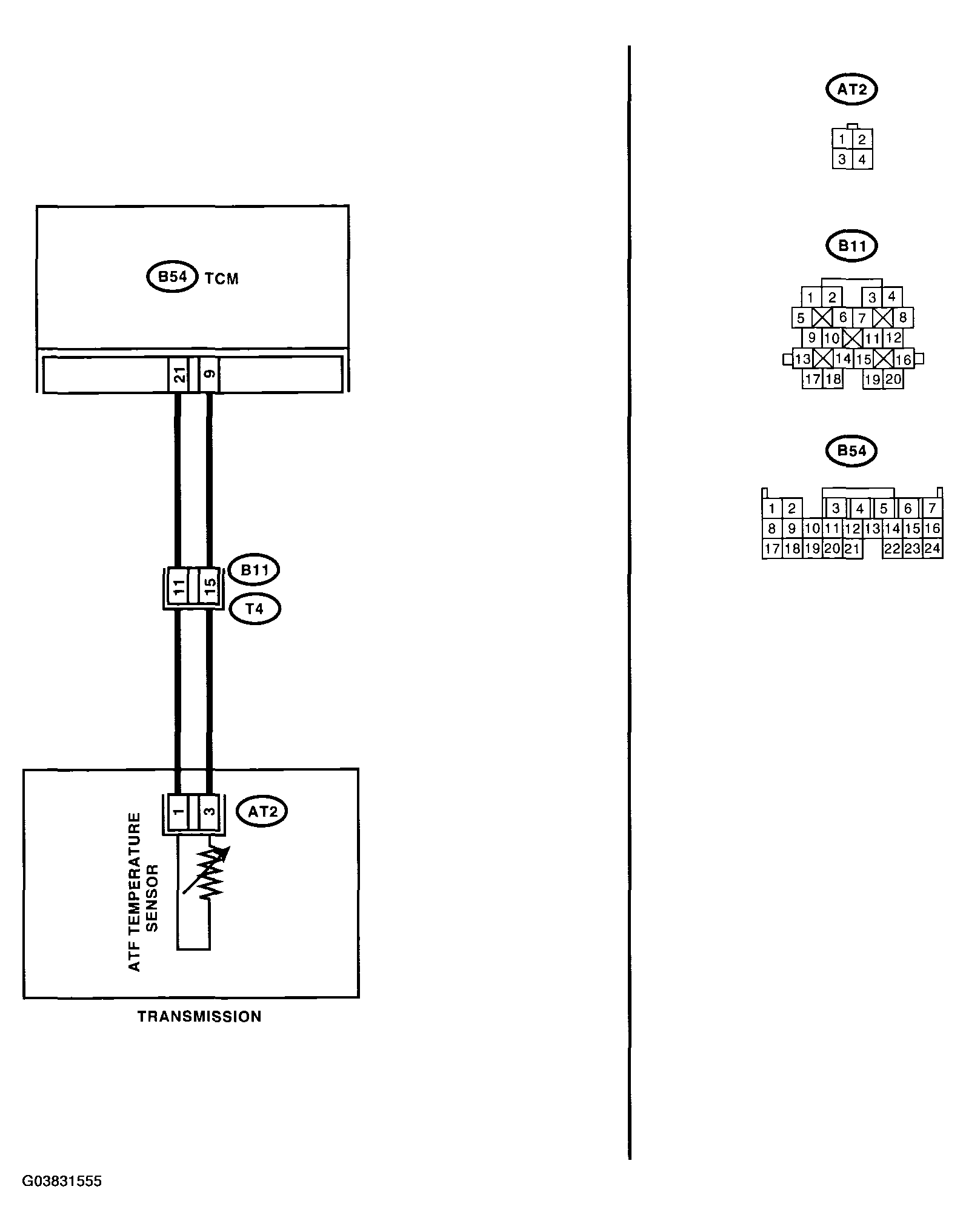

WIRING DIAGRAM:
DTC P0713 DIAGNOSTIC PROCEDURE
| Step | Check | Yes | No |
|---|---|---|---|
| 1 CHECK HARNESS CONNECTOR BETWEEN TCM AND ATF TEMPERATURE SENSOR.
|
Is the resistance more than 500 Ω? | Go to step 2 . | Go to step 4 . |
| 2 CHECK HARNESS CONNECTOR BETWEEN TCM AND ATF TEMPERATURE SENSOR. Measure the resistance of harness between TCM connector and chassis ground. Connector & terminal (B54) No. 21 - Chassis ground: |
Is the resistance more than 1 MΩ? | Go to step 3 . | Go to step 4 . |
| 3 CHECK HARNESS. Measure the resistance between TCM connector terminals while shaking the harness. Connector & terminal (B54) No. 21 - No. 9: |
Does the resistance change? | Go to step 4 . | Replace the TCM. < Ref. to TRANSMISSION CONTROL MODULE (TCM) . > |
| 4 CHECK HARNESS CONNECTOR BETWEEN TCM AND ATF TEMPERATURE SENSOR.
|
Is the resistance more than 1 MΩ? | Go to step 5 . | Repair the short circuit in harness between TCM and transmission harness. |
| 5 CHECK HARNESS CONNECTOR BETWEEN TCM AND ATF TEMPERATURE SENSOR. Measure the resistance of harness between TCM connector and chassis ground. Connector & terminal (B54) No. 9 - Chassis ground: |
Is the resistance more than 1 MΩ? | Go to step 6 . | Repair the short circuit in harness between TCM and transmission harness. |
| 6 CHECK ATF TEMPERATURE SENSOR. Measure the resistance between transmission connector terminals. Connector & terminal (T4) No. 11 - No. 15: |
Is the resistance more than 500 Ω? | Even if the SPORT indicator light is blinking, the circuit has returned to normal condition at this time. A temporary short circuit of connector or harness may be the cause. Repair the harness or connector. | Go to step 7 . |
| 7 CHECK TRANSMISSION HARNESS.
|
Is the resistance more than 1 MΩ? | Go to step 8 . | Replace the transmission harness. |
| 8 CHECK TRANSMISSION HARNESS. Measure the resistance between transmission connector and transmission ground. Connector & terminal (T4) No. 15 - Transmission ground: |
Is the resistance more than 1 MΩ? | Go to step 9 . | Replace the transmission harness. |
| 9 CHECK ATF TEMPERATURE SENSOR. Measure the resistance between control valve connector terminals Terminal No. 1 - No. 3: |
Is the resistance more than 500 Ω? | Even if the SPORT indicator light is blinking, the circuit has returned to normal condition at this time. A temporary short circuit of connector or harness may be the cause. Repair the harness or connector. | Replace the control valve body. < Ref. to CONTROL VALVE BODY . > |
