Transmission Control Module (TCM): Installation
WARNING: This page is about a different variant/trim than selected.

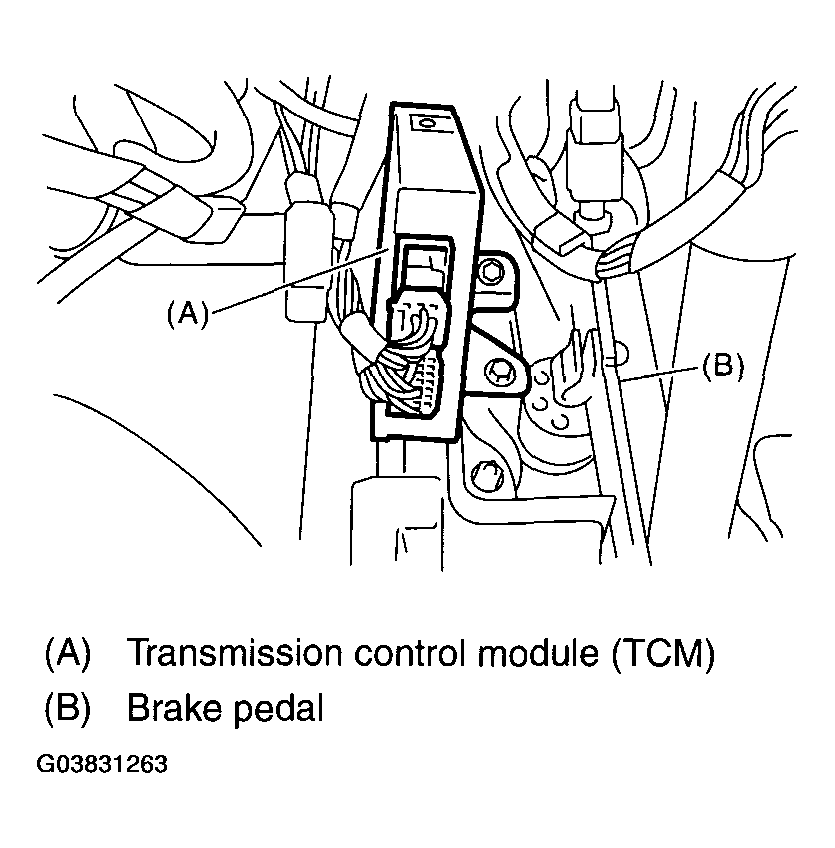

- Install the TCM.
Tightening torque:
7.5 N.m (0.76 kgf-m, 5.5 ft-lb)
- Connect the connector to TCM.
- Install in the reverse order of removal.
- Execute the learning control promotion. < Ref. to FACILITATION OF LEARNING CONTROL , OPERATION, Subaru Select Monitor. >
