Transfer Clutch: Installation

WARNING: This page is about a different variant/trim than selected.

Select the thrust needle bearing. < Ref. to , ADJUSTMENT , Transfer Clutch. >
Install the transfer clutch assembly to the case.

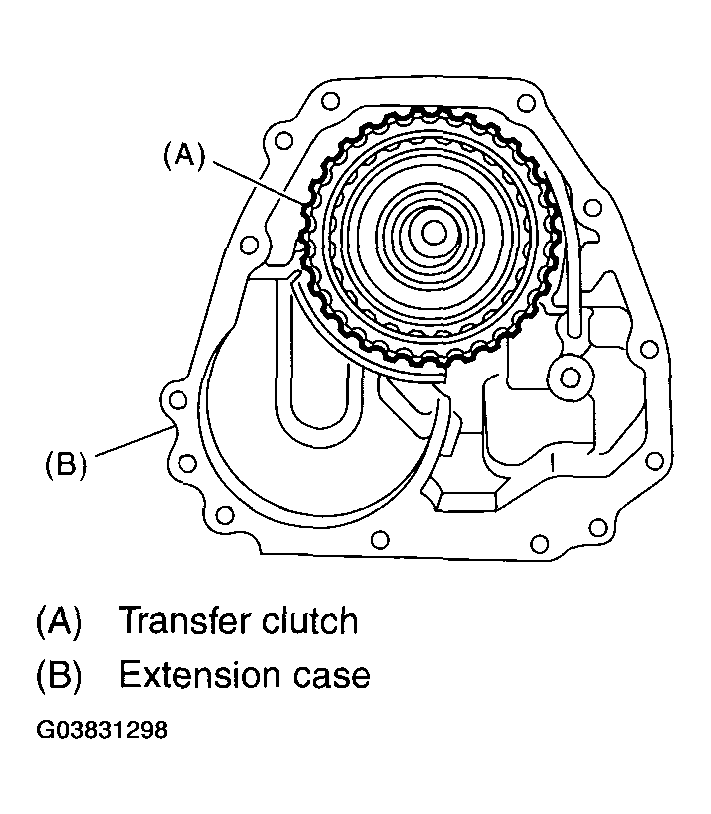

Fig 1: Installing Transfer Clutch Assembly To Case
Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolts to secure the case.
Tightening torque:

25 N.m (2.5 kgf-m, 18 ft-lb)

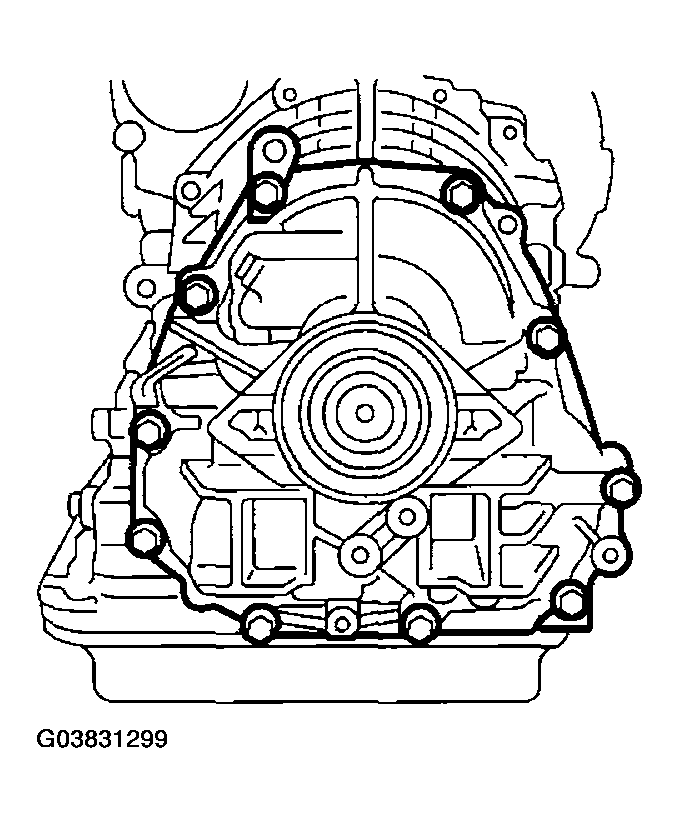

Fig 2: Tightening Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the transmission assembly into vehicle. < Ref. to , INSTALLATION , Automatic Transmission Assembly. >
