Reduction Driven Gear: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Set the select lever to "P" range.
  2. Using a plastic hammer, install the reduction driven gear assembly and new washer, and tighten new drive pinion lock nut.

    Tightening torque:

    100 N.m (10.2 kgf-m, 73.8 ft-lb)

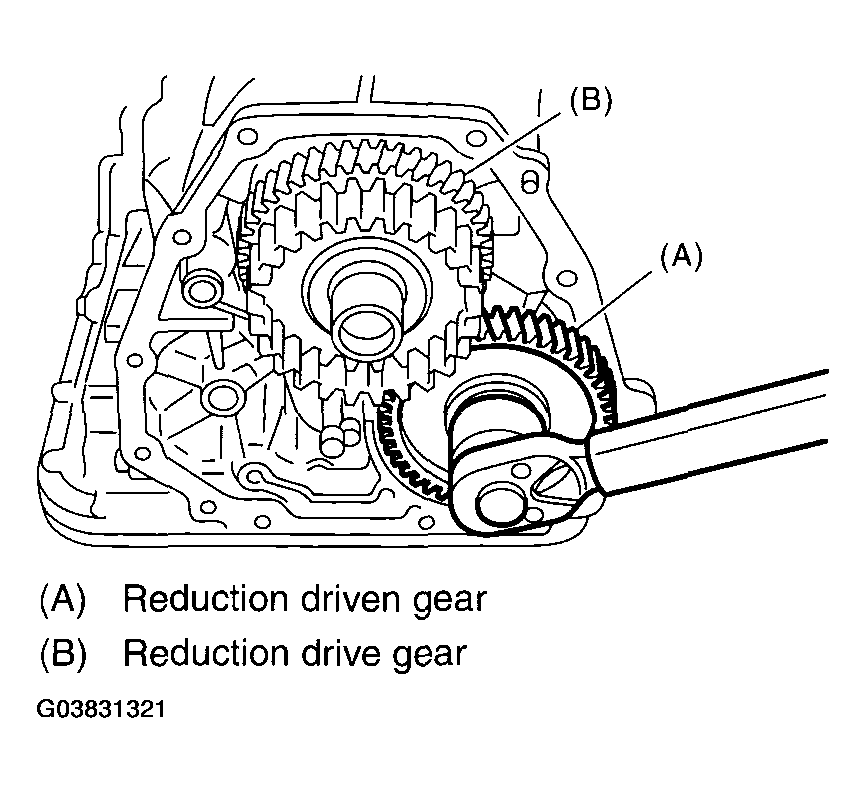

    Fig 1: Installing Reduction Driven Gear Assembly And Tightening Drive Pinion Lock Nut
    G03831321Courtesy of SUBARU OF AMERICA, INC.
  3. After tightening, stake the lock nut securely.
  4. Combine the transmission case with extension case, and then install the rear vehicle speed sensor. < Ref. to , INSTALLATION , Extension Case. >
  5. Install the transmission assembly into vehicle. < Ref. to , INSTALLATION , Automatic Transmission Assembly. >
