Reduction Drive Gear: Disassembly

WARNING: This page is about a different variant/trim than selected.

Take out the seal ring.

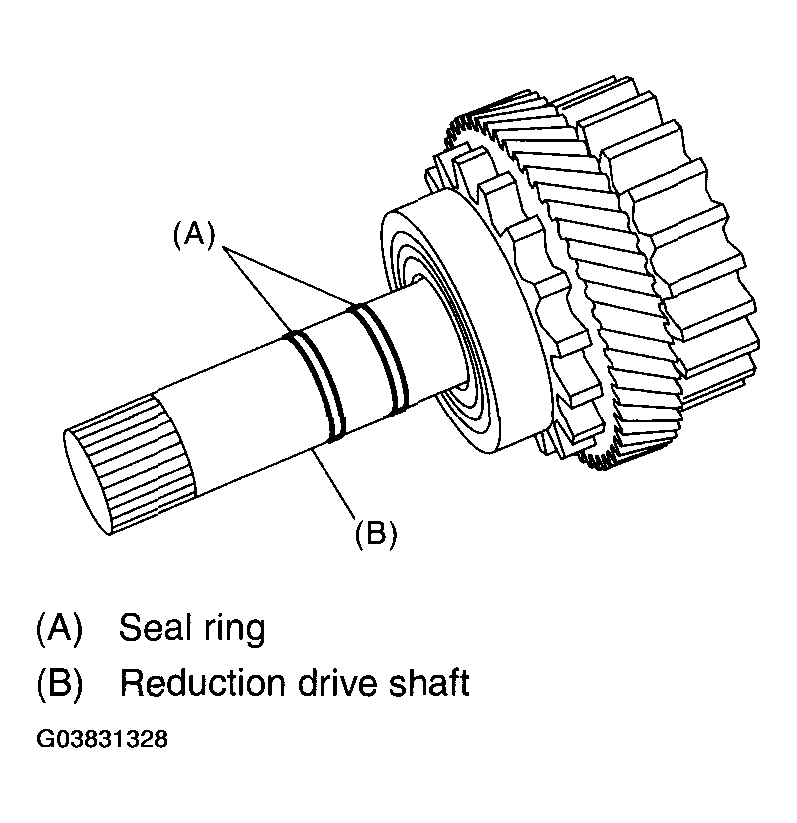

Fig 1: Identifying Seal Ring And Reduction Drive Shaft
Courtesy of SUBARU OF AMERICA, INC.
Remove the ball bearing using ST.
ST 498077600 REMOVER

Fig 2: Removing Ball Bearing Using Remover ST 498077600
Courtesy of SUBARU OF AMERICA, INC.
Using the press, remove the reduction drive gear.

Fig 3: Removing Reduction Drive Gear
Courtesy of SUBARU OF AMERICA, INC.
