Reduction Drive Gear: Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Press-fit the reduction drive gear to shaft.
  2. Press-fit the new ball bearing into reduction drive gear.
  3. Apply Vaseline to the outer surface of seal ring and shaft groove.
  4. Apply ATF to new seal rings and install them.

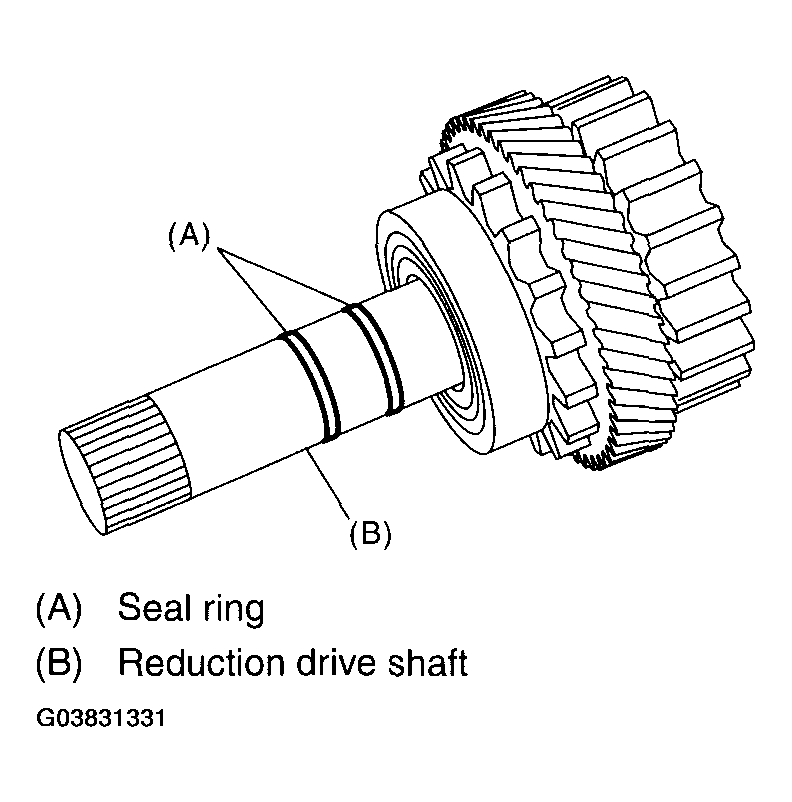

    Fig 1: Identifying Seal Ring And Reduction Drive Shaft
    G03831331Courtesy of SUBARU OF AMERICA, INC.
